Denture Base Resin(#3166)

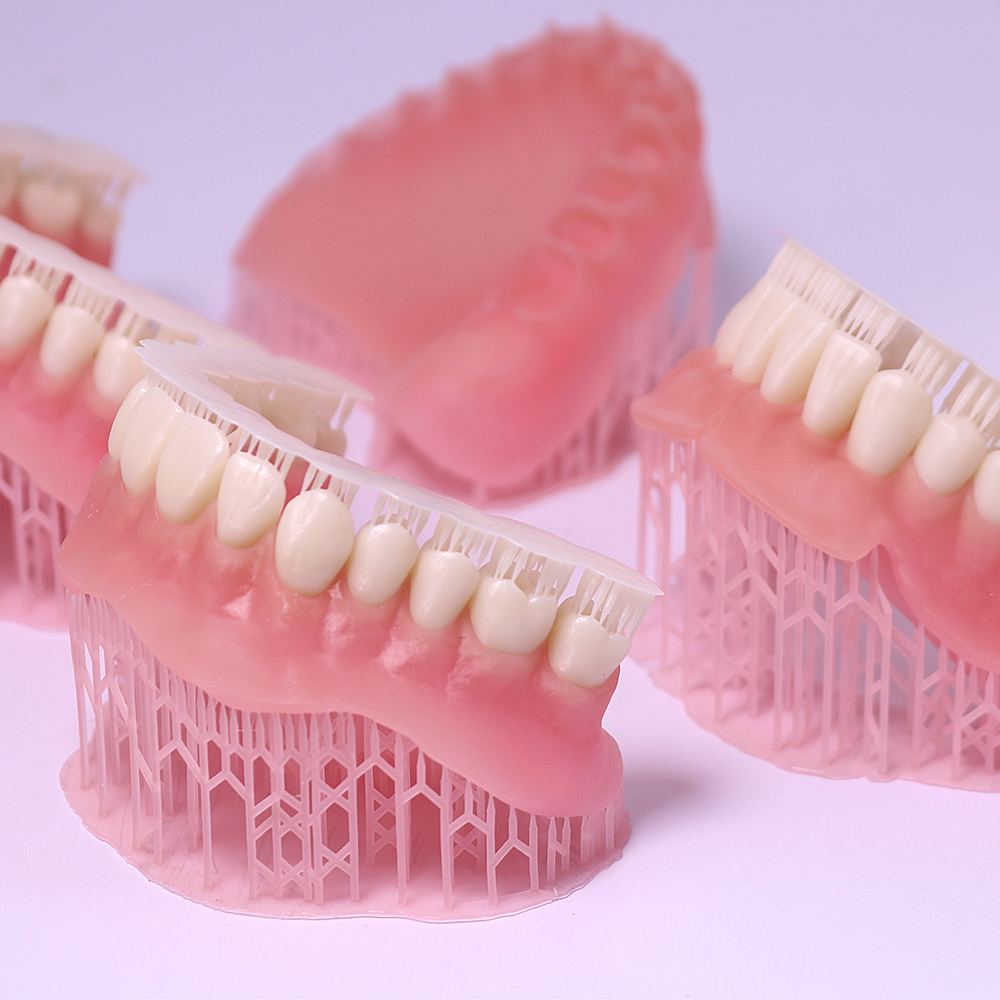

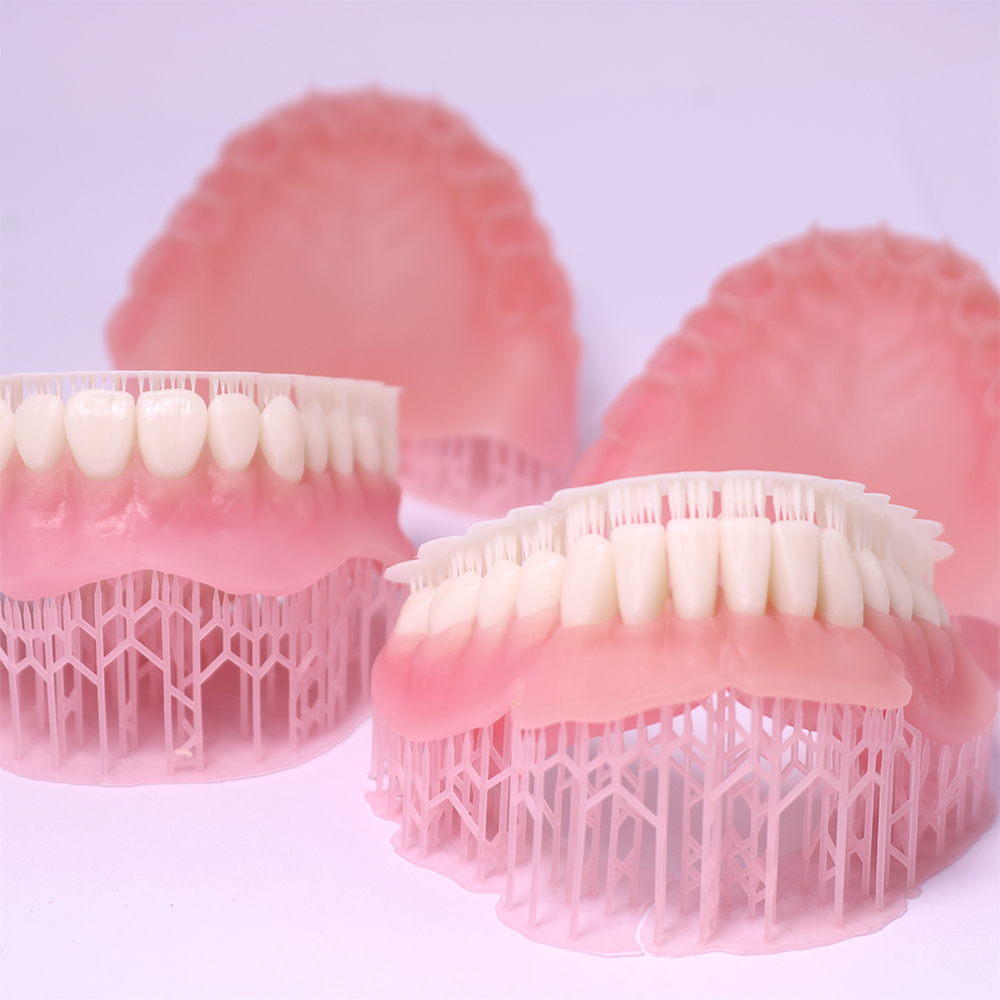

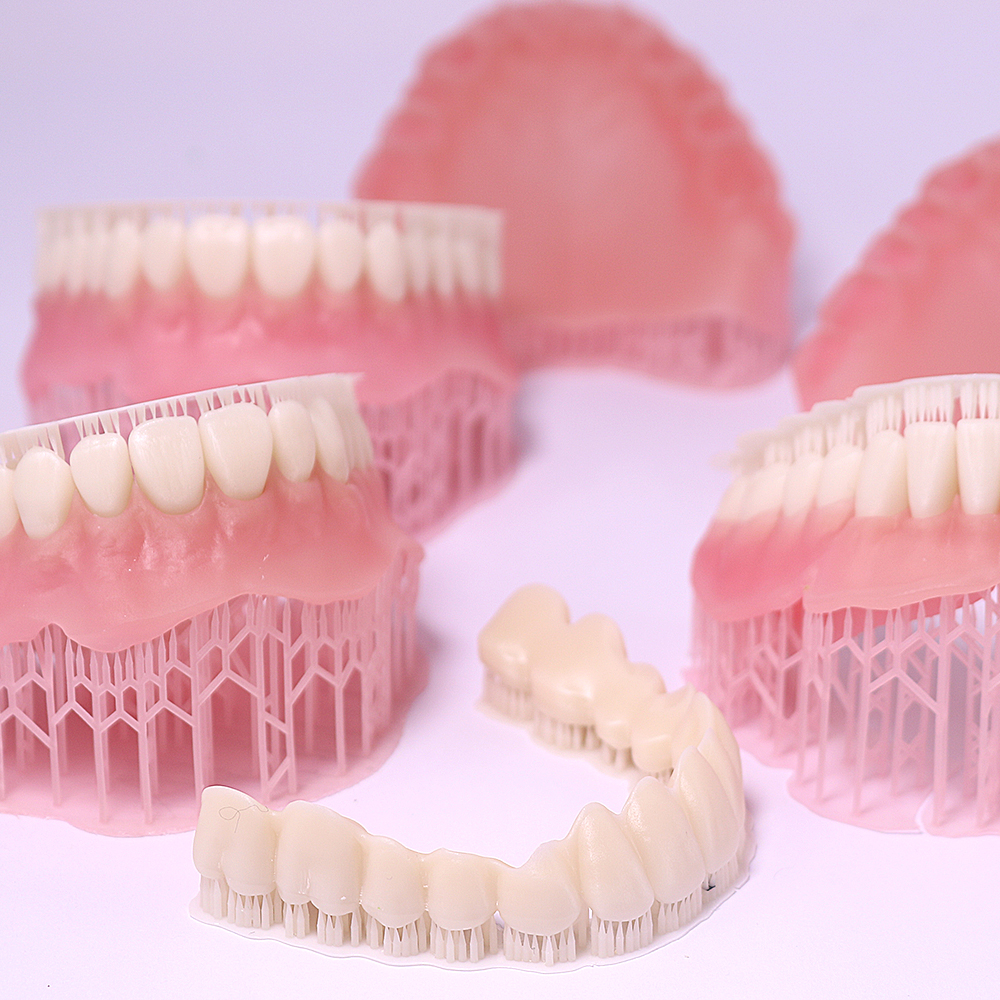

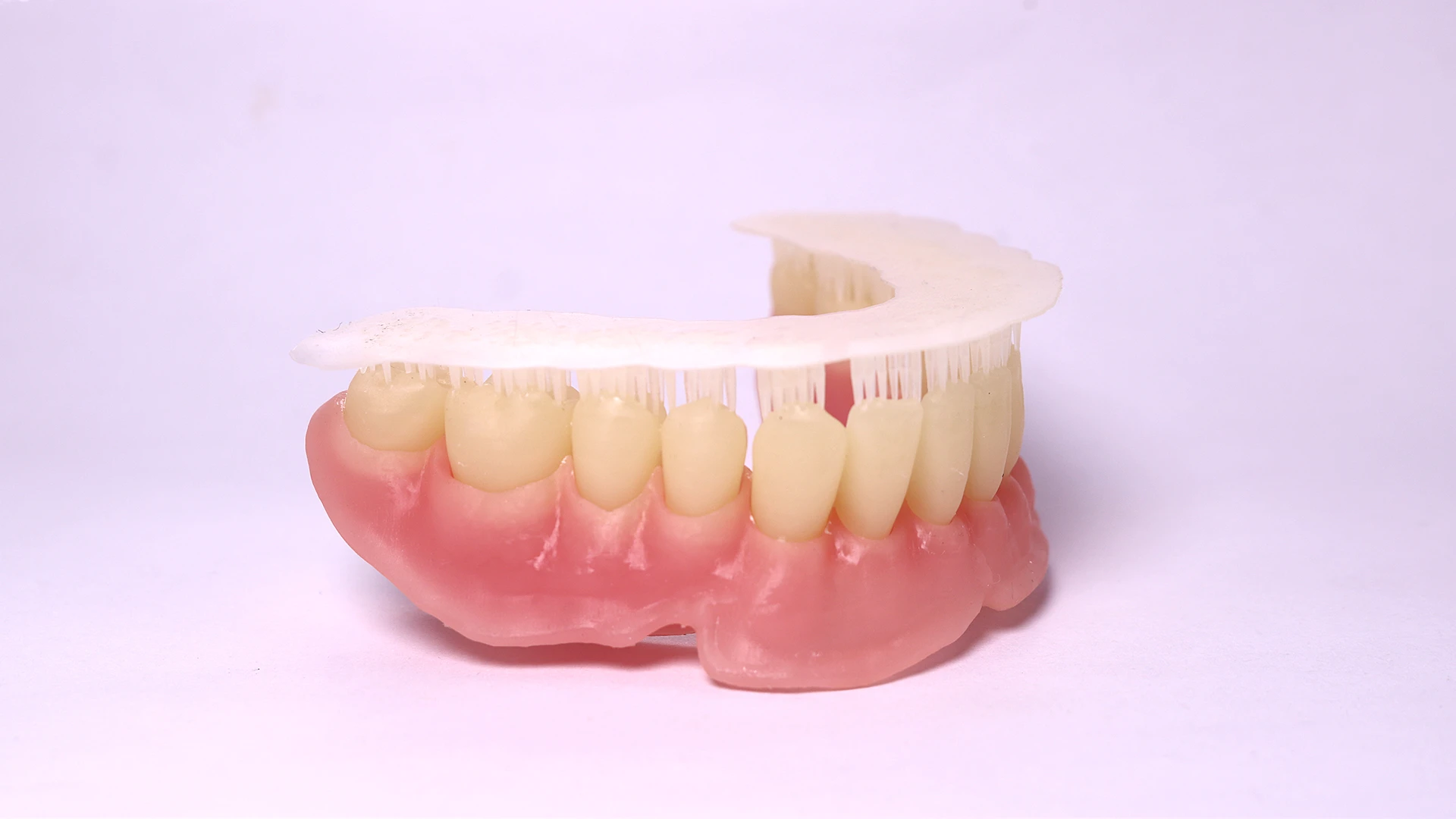

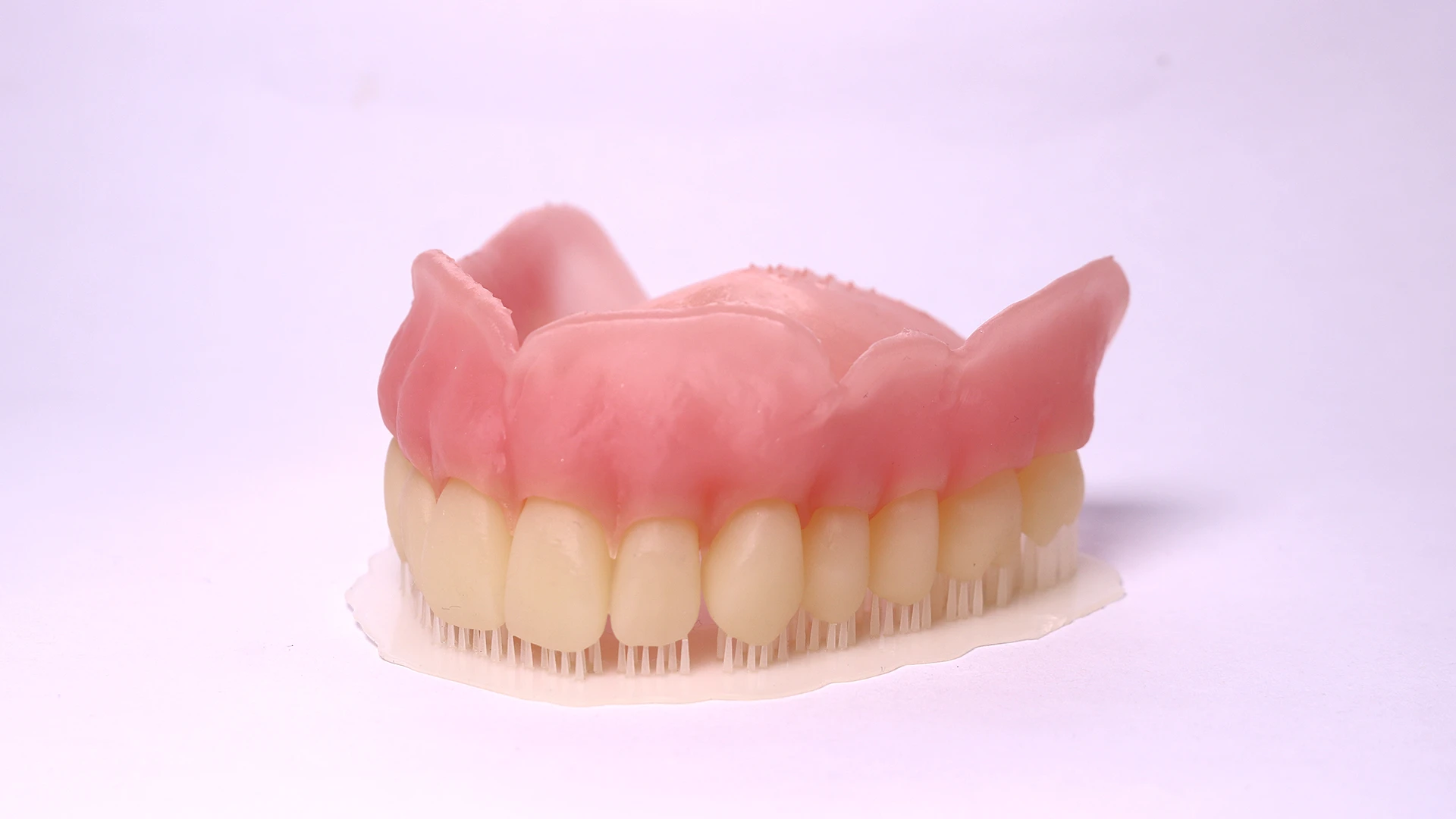

Workflow for 3D printed complete dentures

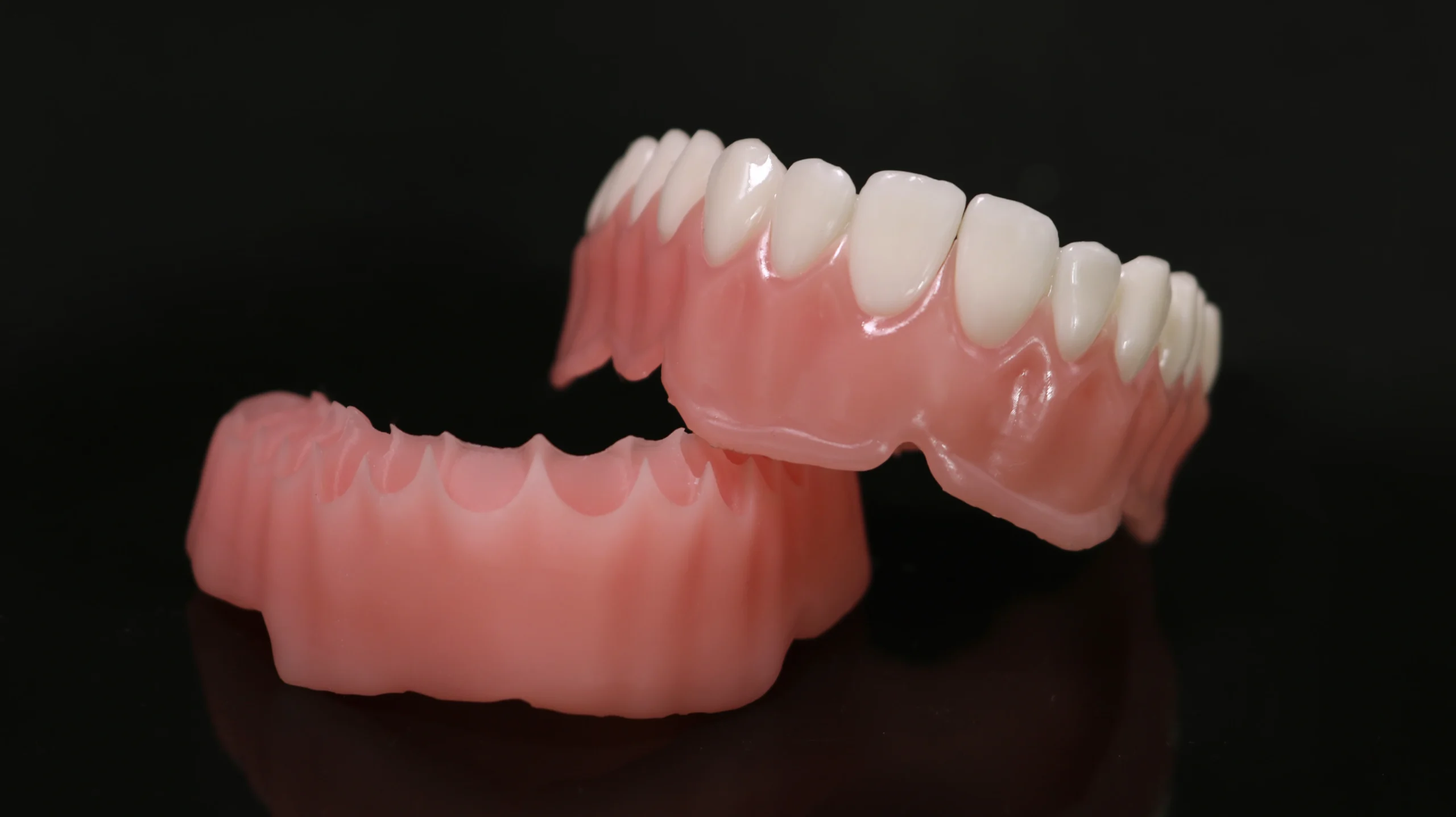

The denture artificial teeth and the denture base are 3D printed separately. Then, the printed teeth are bonded to the printed denture base using a light-curing adhesive. They are highly occluded to form a perfect occlusal curve.

Features of IFUN Denture Base Resin(3166 )

The most popular materials used for 3D printing denture bases.

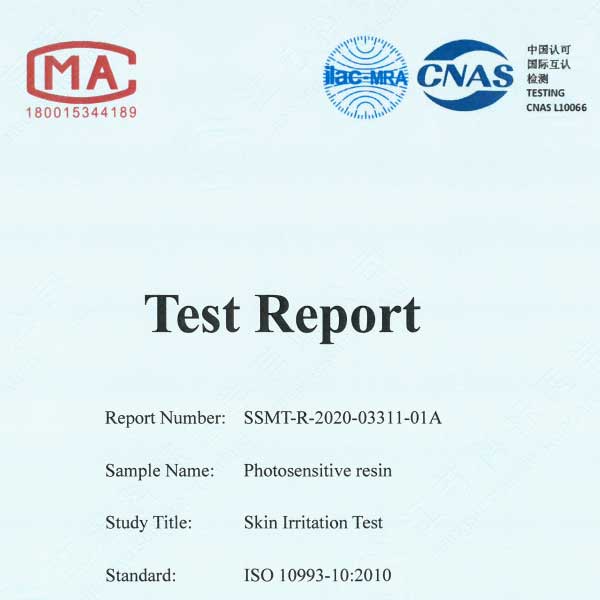

Highly biocompatible.
Safe to allergic patients.

It has high biocompatibility with oral tissue. Ensure a healthy oral environment and a high degree of comfort.

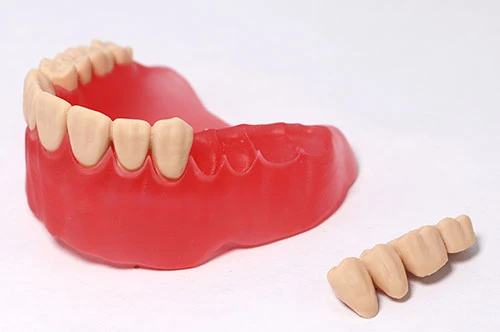

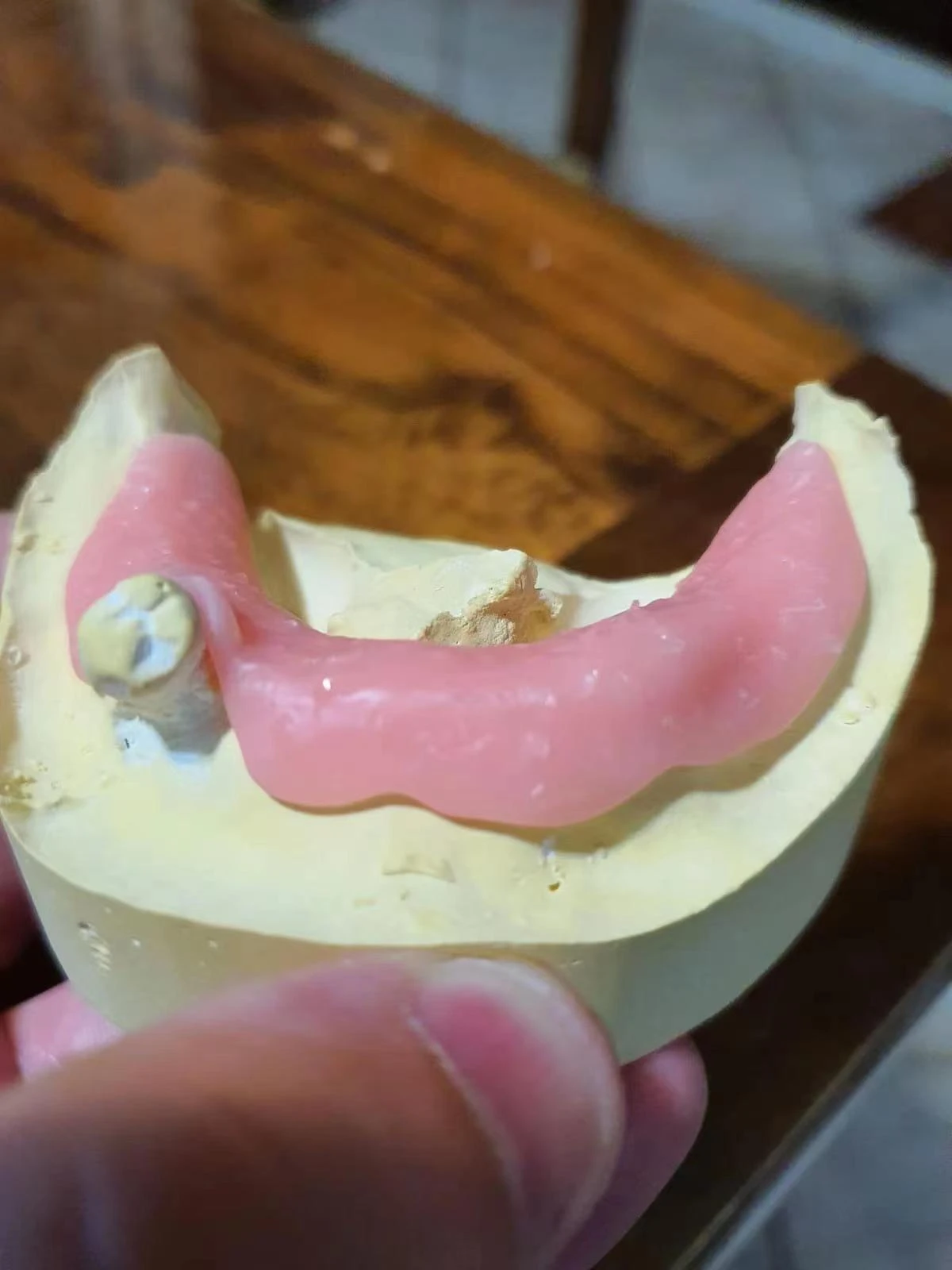

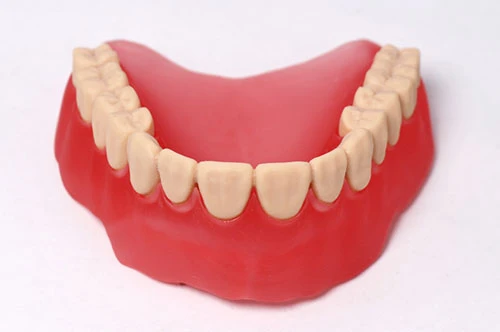

a-dental-model-whose-dental-base-is-printed-using-IFUN-Denture-Base-Resin-3166-1

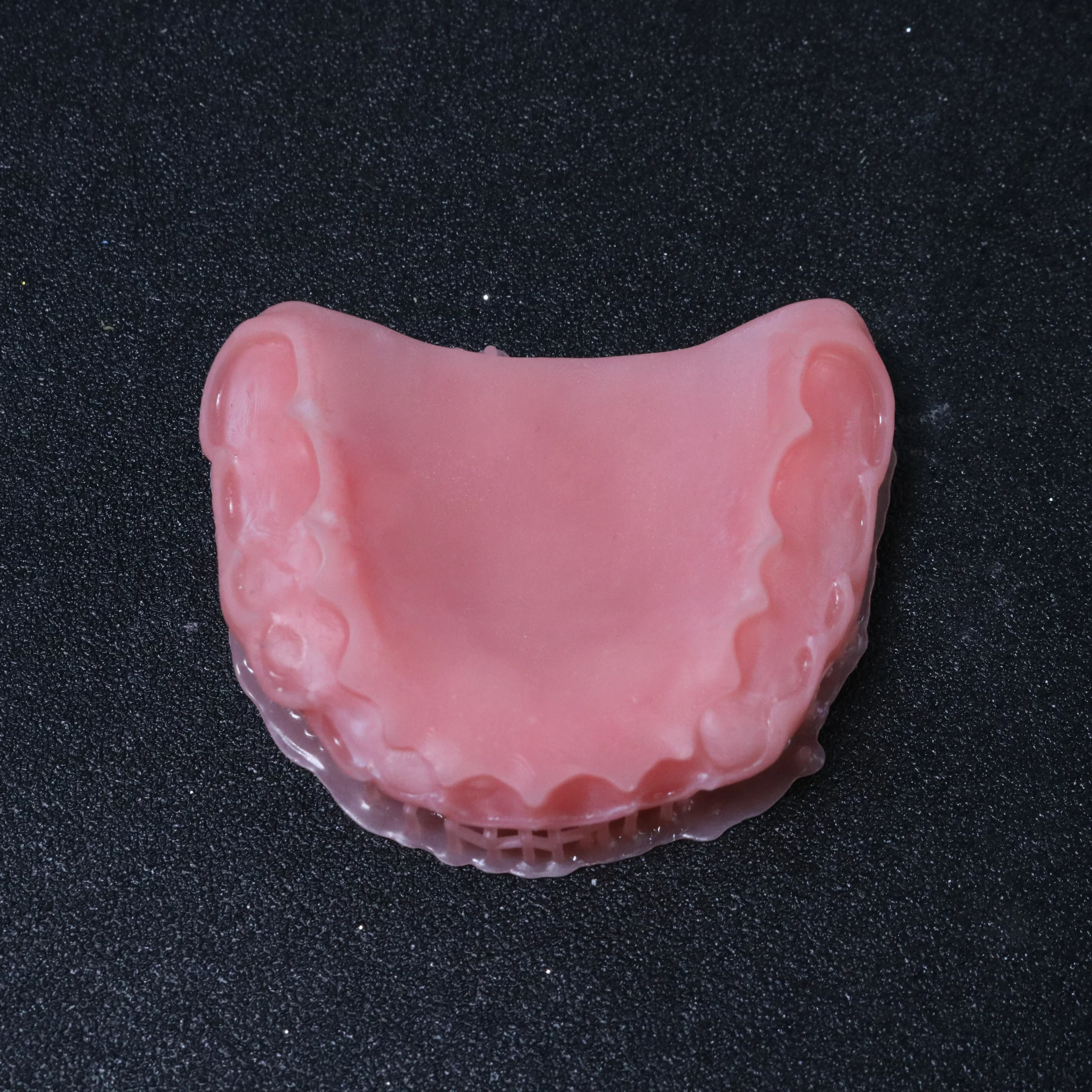

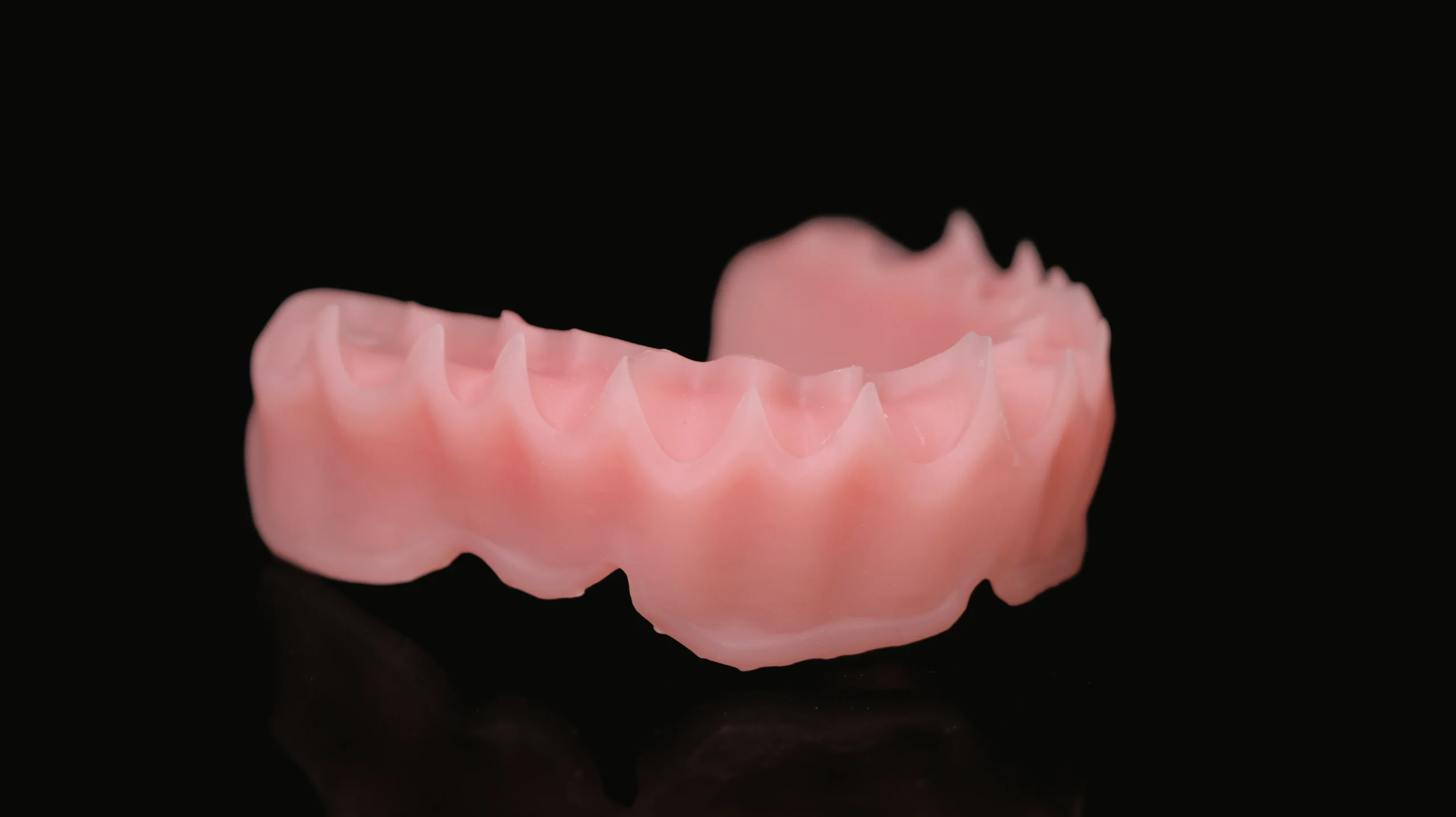

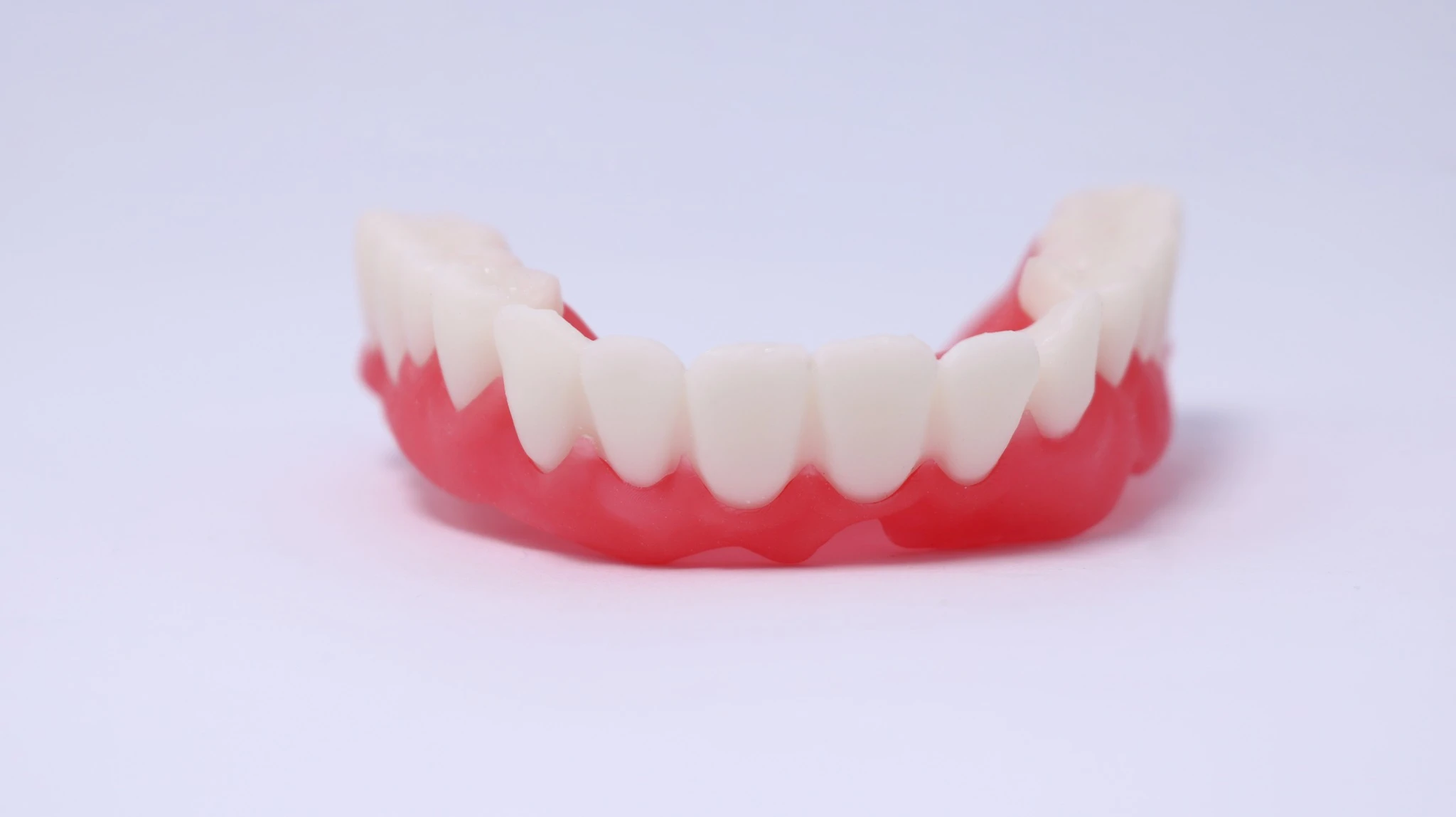

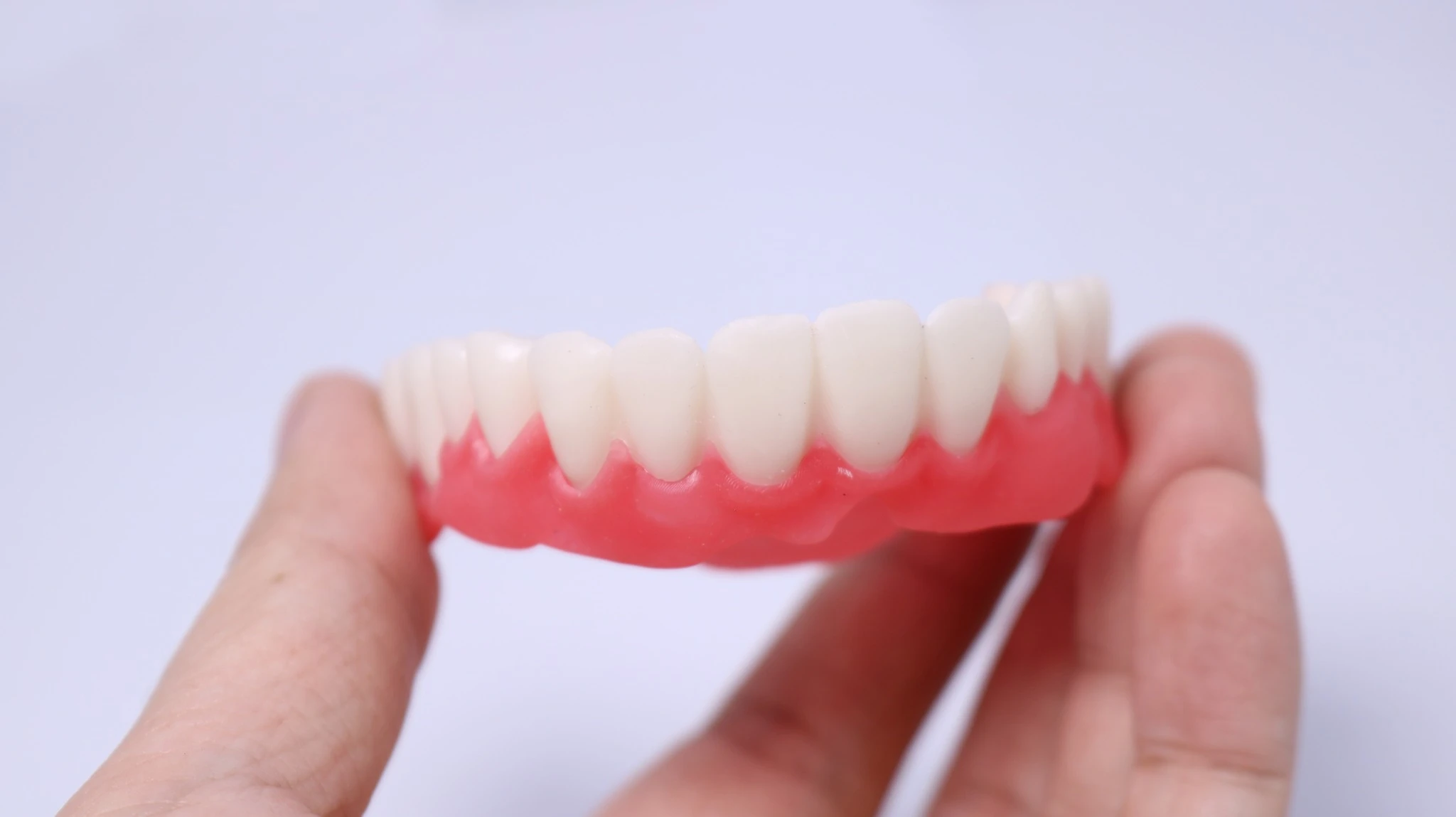

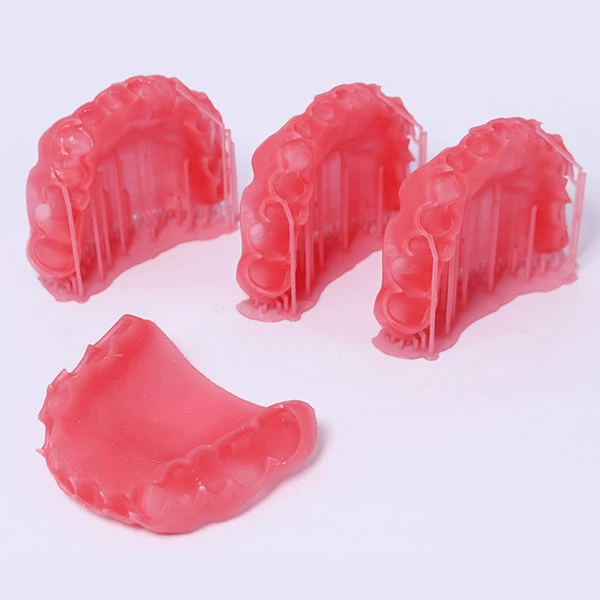

a-pink-denture-base-printed-with-IFUN-Denture-Base-Resin-3166

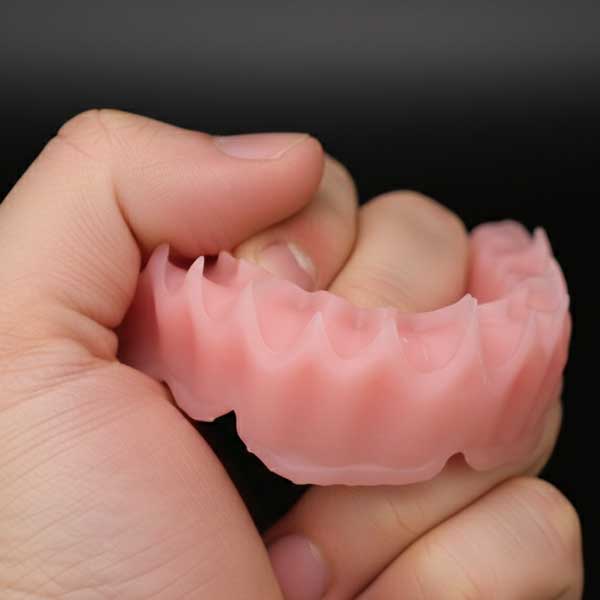

Excellent mechanical properties.

The denture base printed with our 3166 resin are durable and resist fracture.

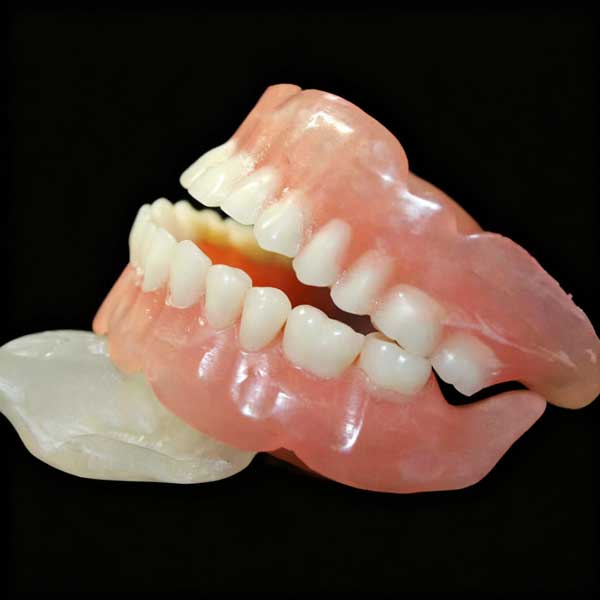

Satisfy aesthetic demands.

Pink color, natural looking; Maintains color stability during 3D printing.

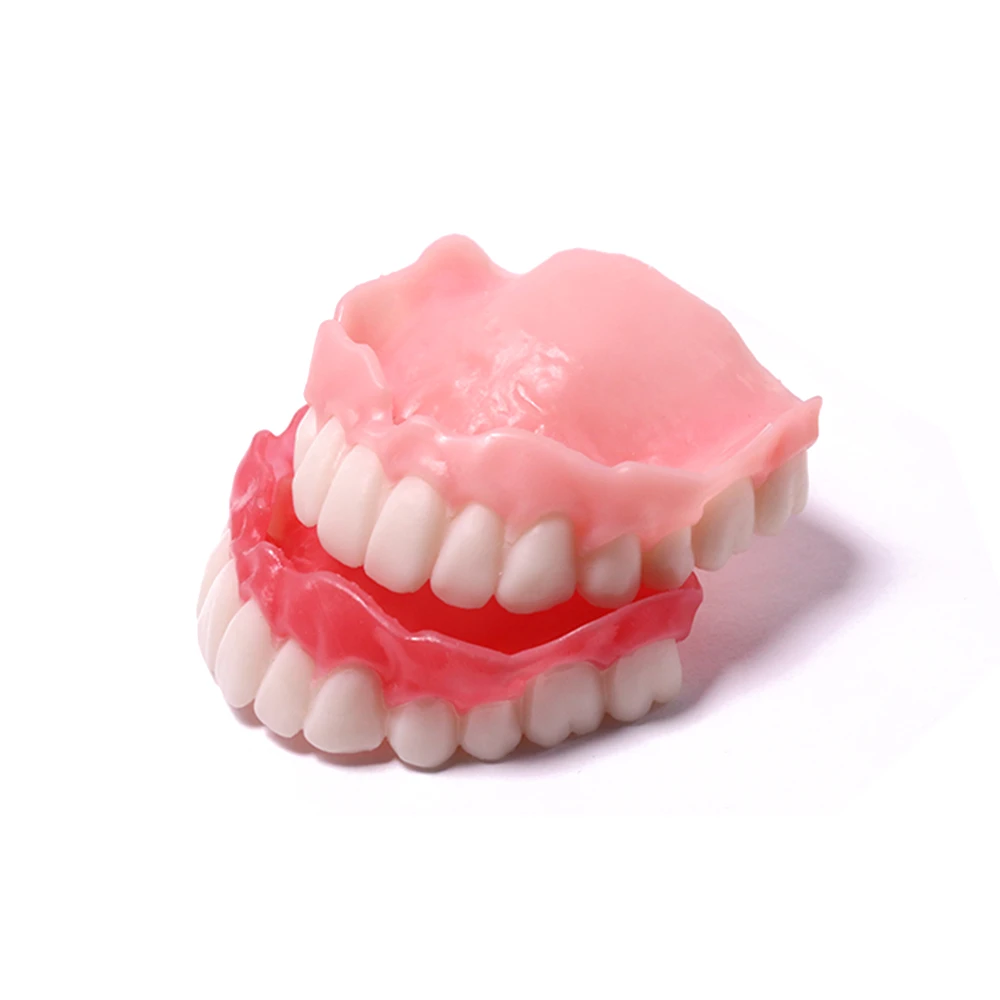

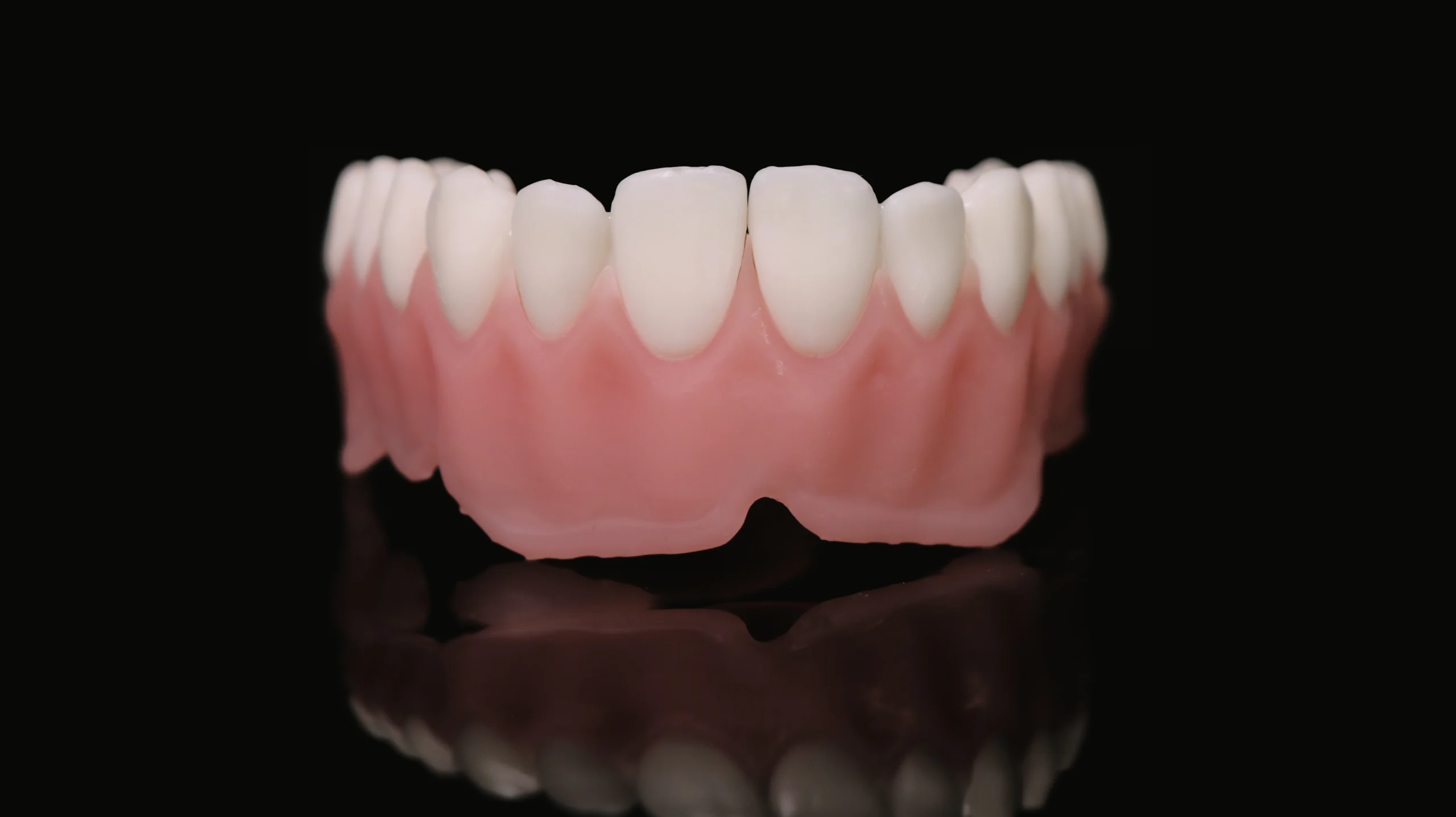

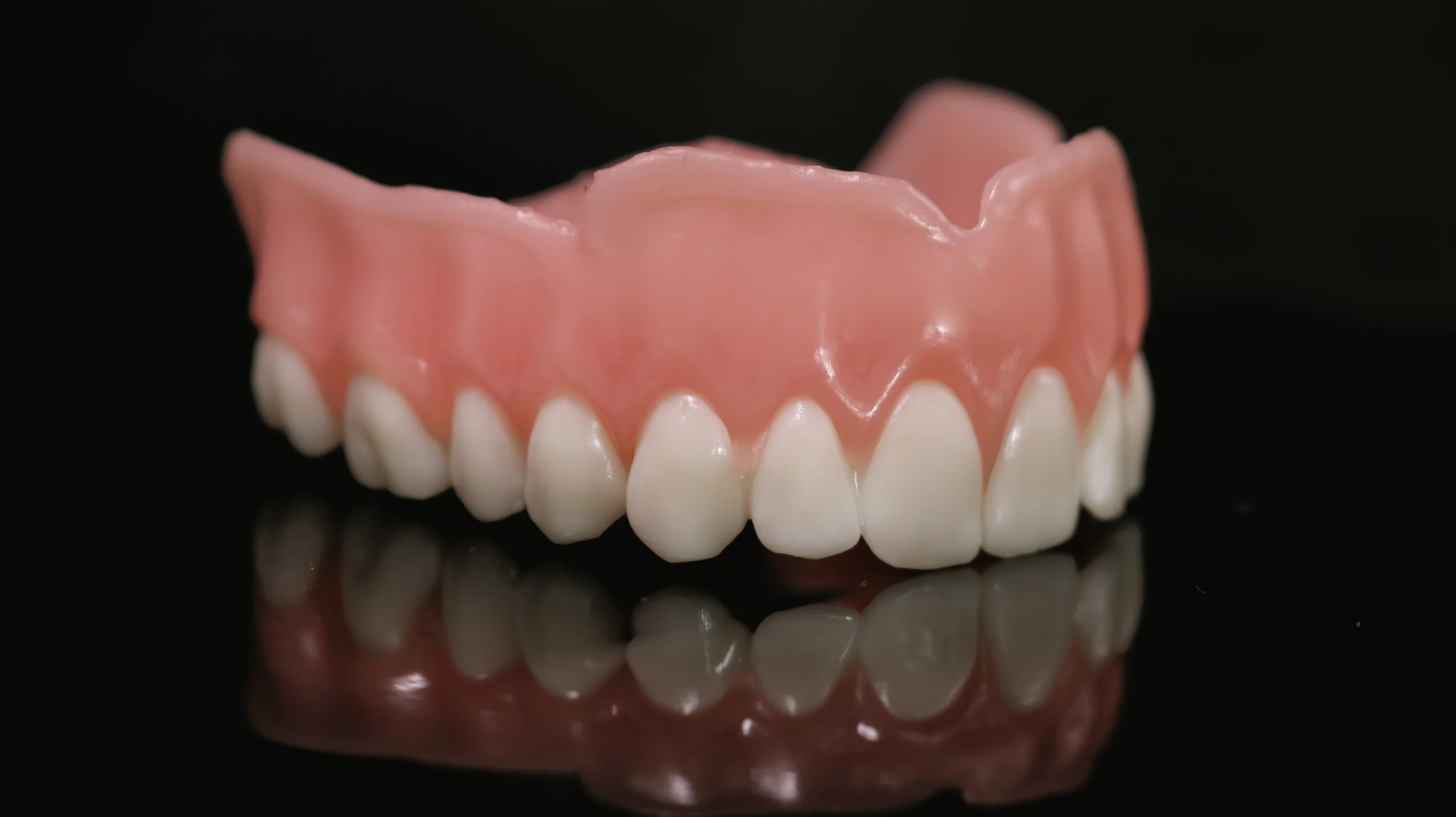

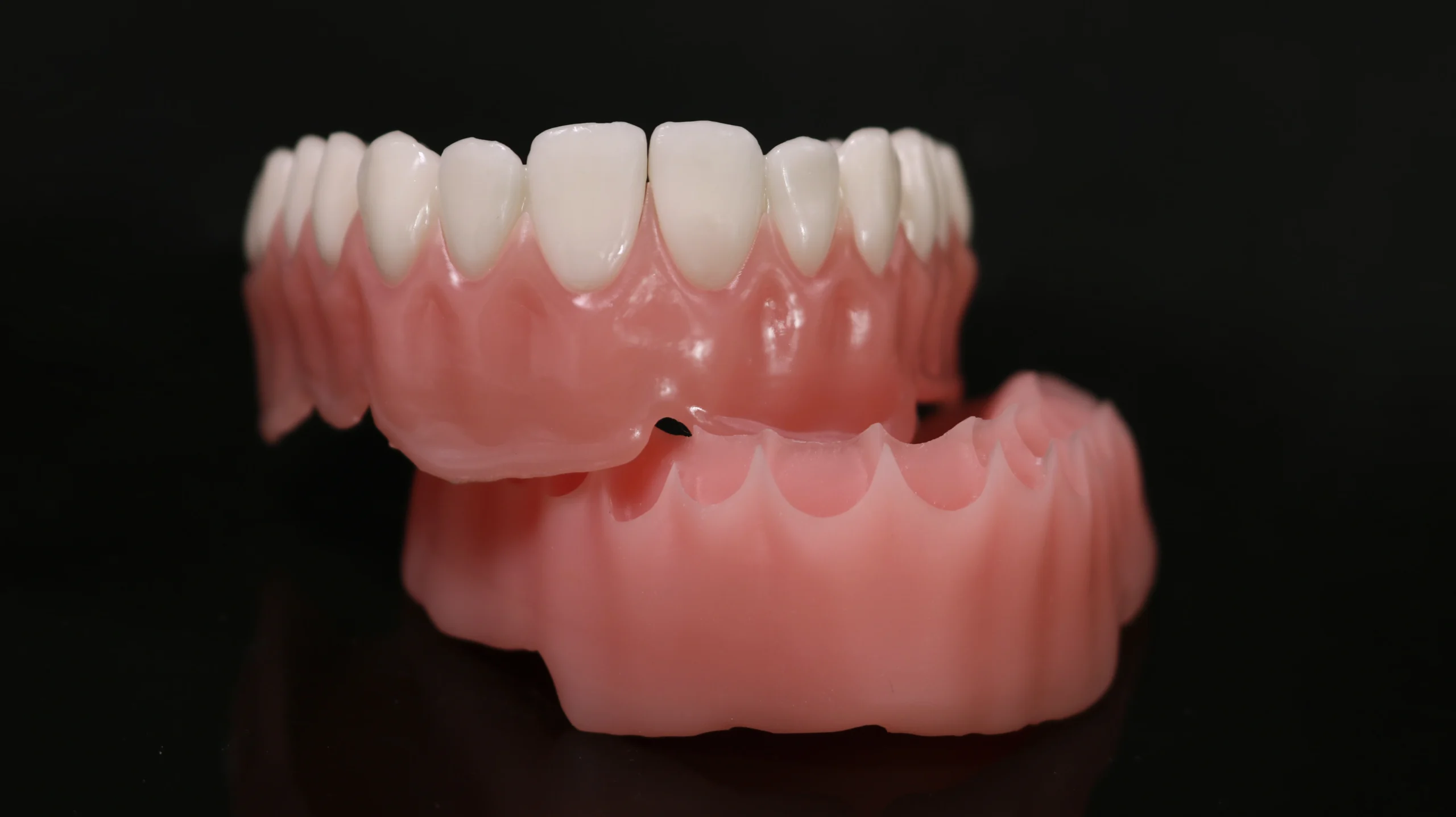

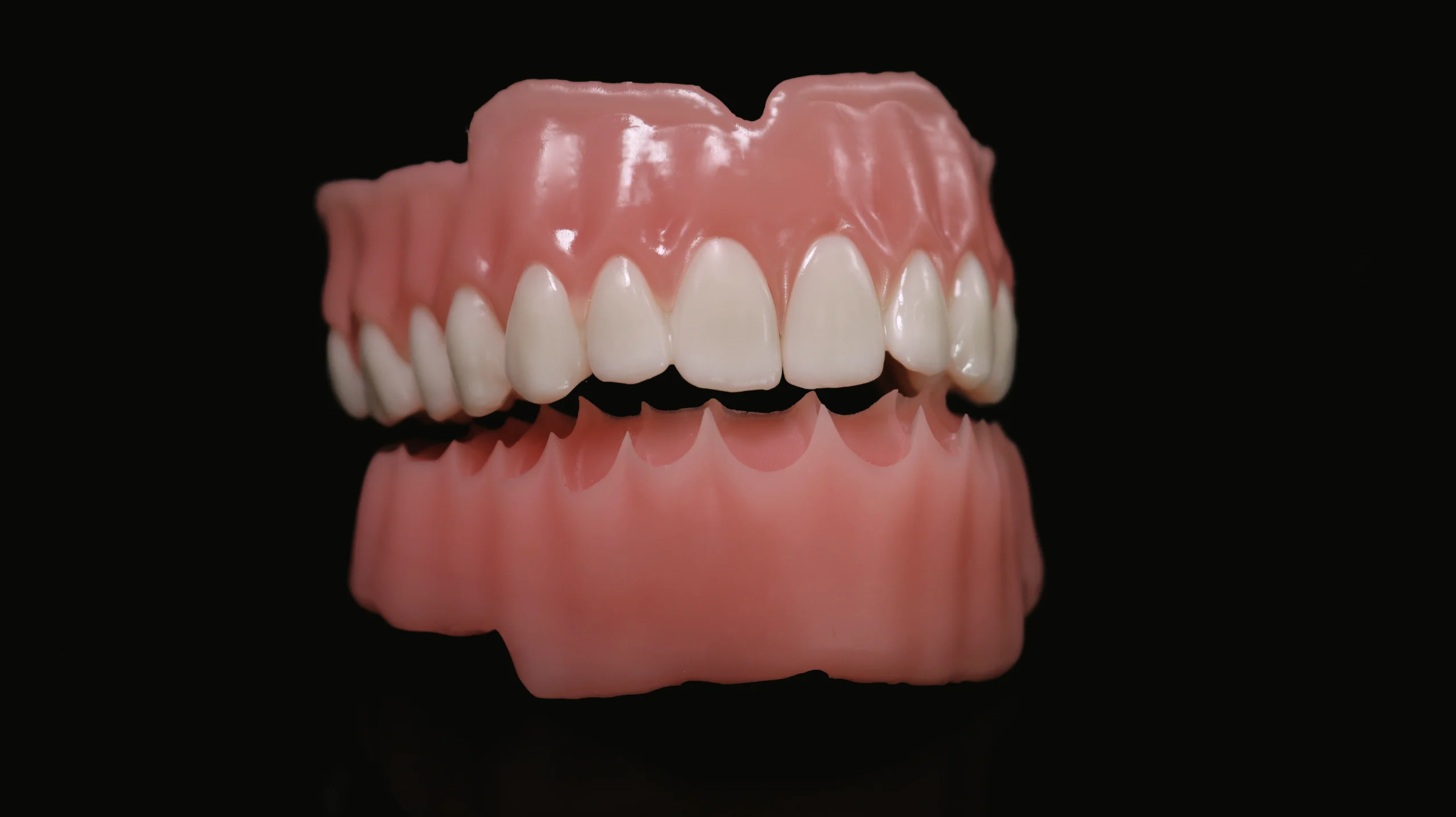

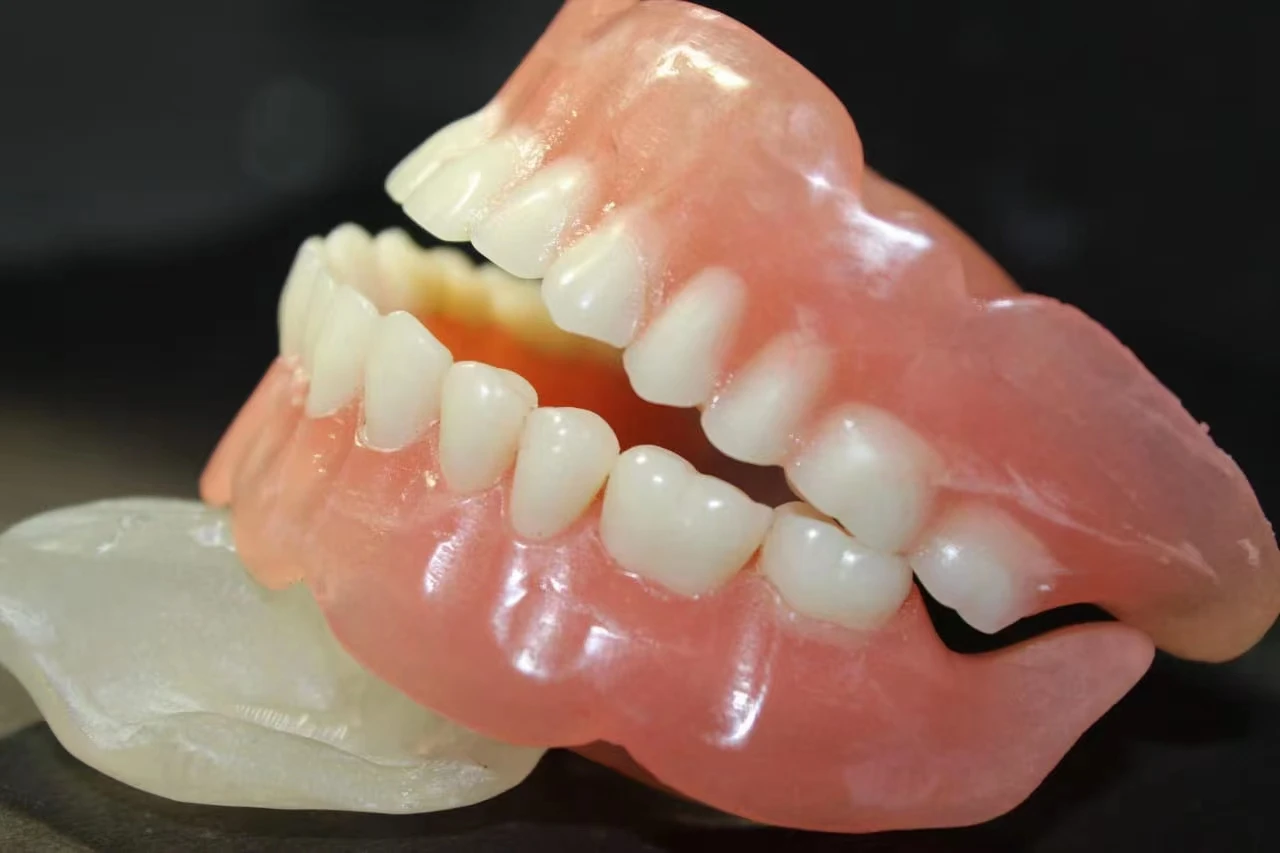

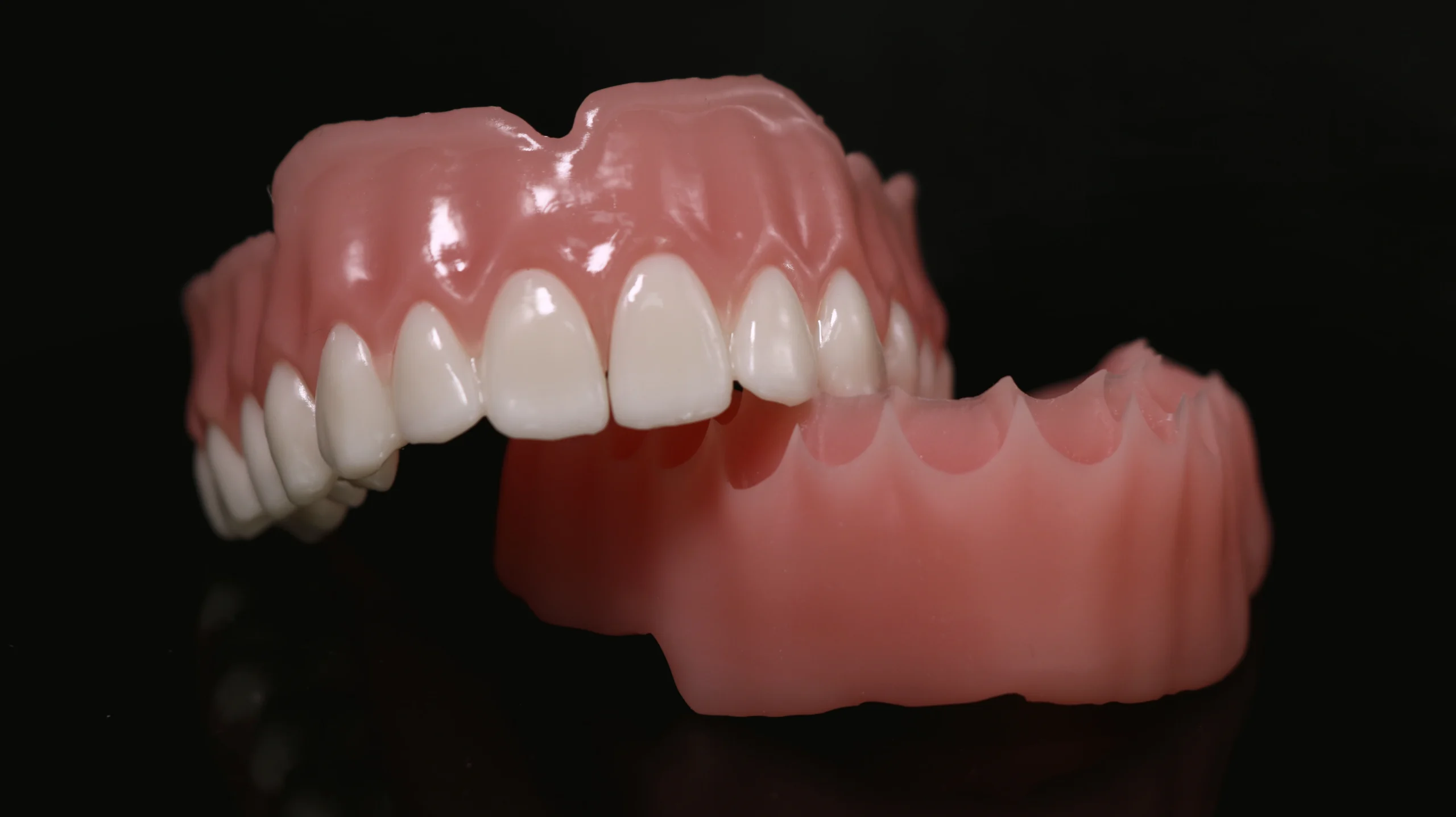

a-complete-denture-whose-denture-base-printed-with-IFUN-Denture-Base-Resin-3166

Specifications of Denture Base Resin(3166)

project	Content	Data value	Testing method
Physical and chemical properties (before curing)	color	Pink
	Viscosity	450-750cps(25℃)	ASTM D1084-1997
	Density	1.05-1.15	ASM D1875-69(1980)
Physical and chemical properties (after curing)	Curing depth	500~700μm
	Shrinkage	＜1%
	Hardness	70~80D	ASTM D2240-05(2010)
	bending strength	＞3kg	Test strip 4mm

You can download the parameter here.

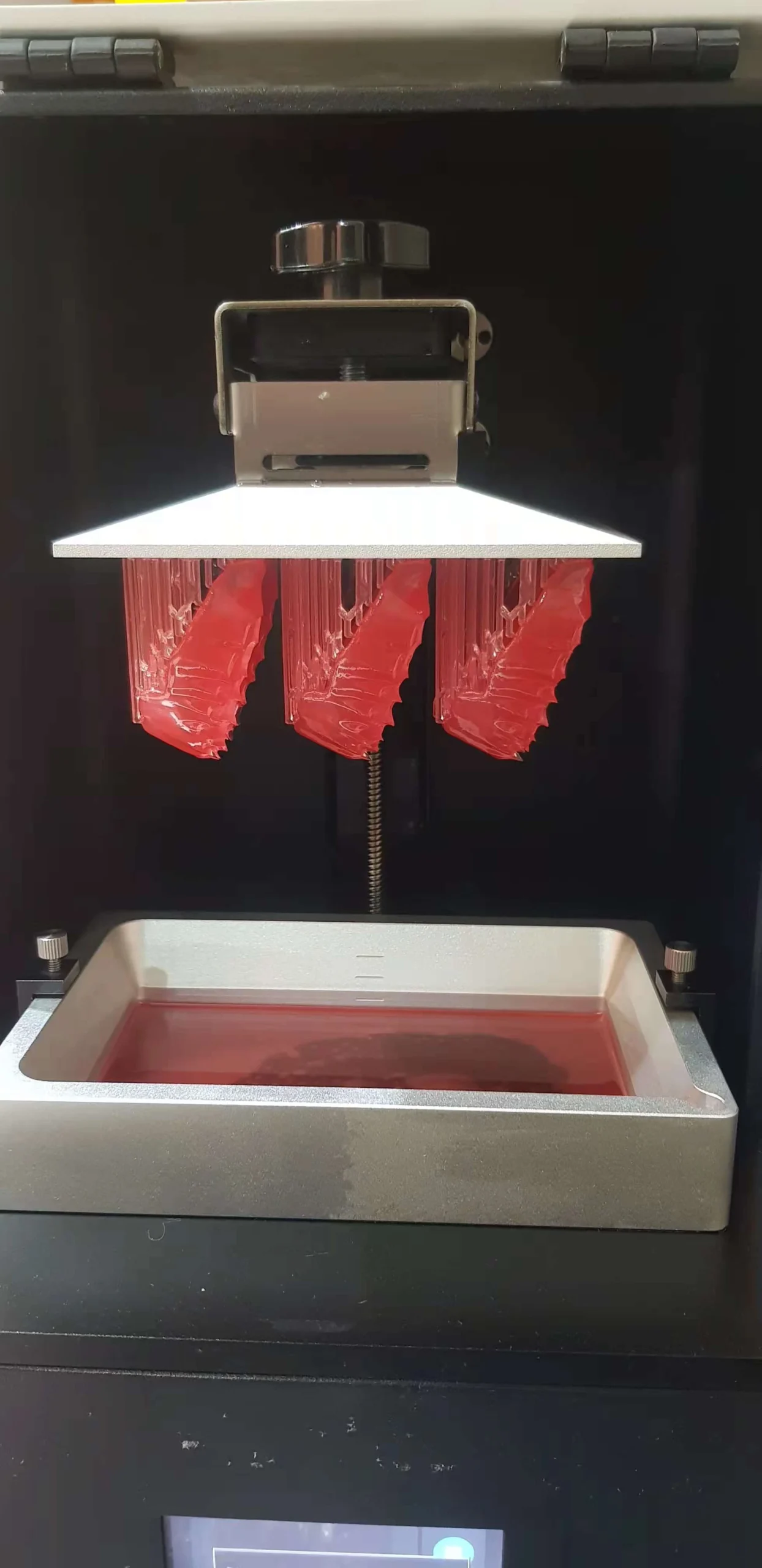

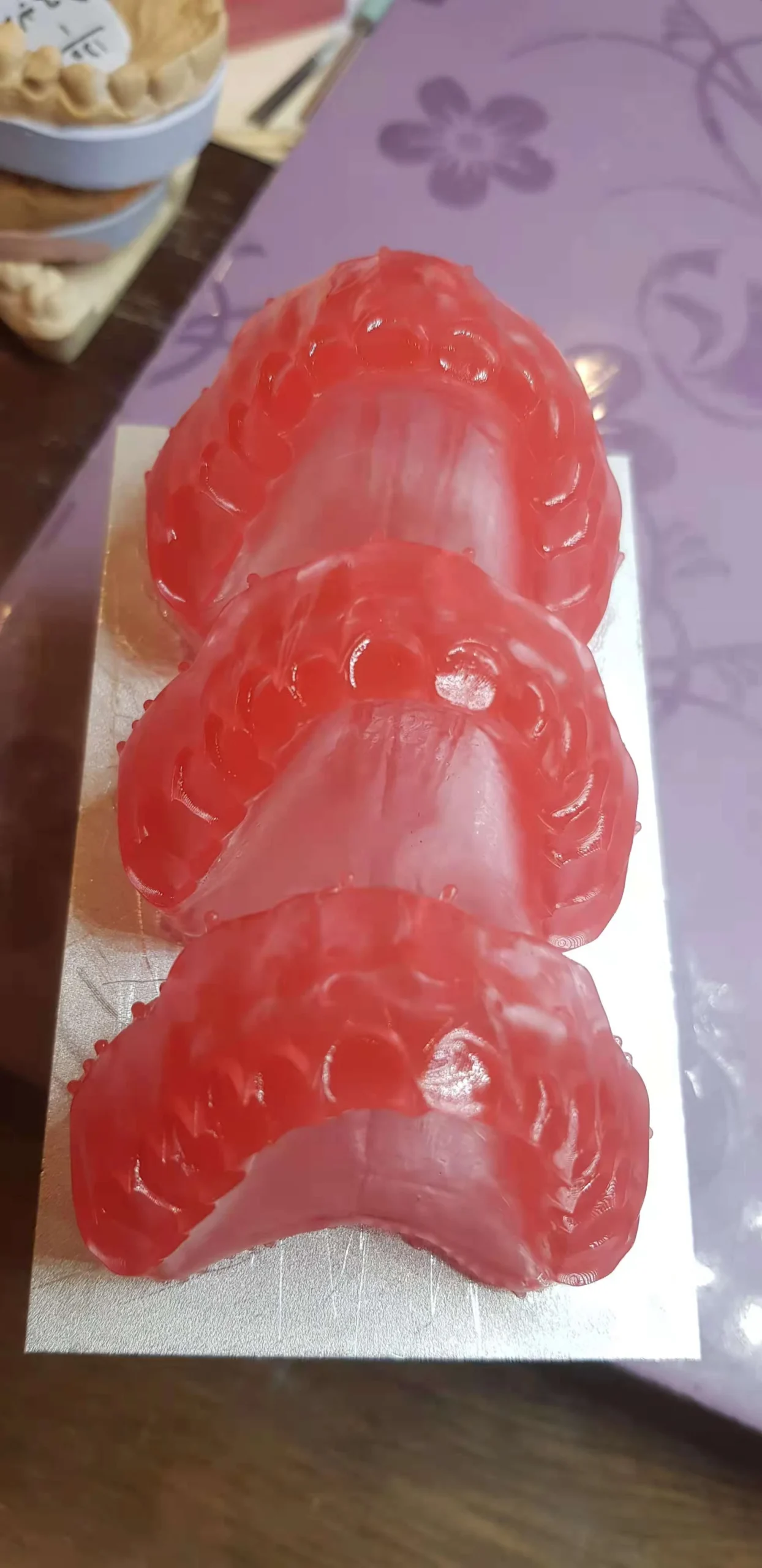

1- Washing
– After the printing is completed, wash the part as attached to the building plate with alcohol (>%95) for 3 minutes.
– Make sure that alcohol covers the part entirely when washing.
– Since the Denture resin is biocompatible never wash it with the alcohol used for other resins before.
– Use a brush to remove uncured resin if needed.
– Do not over-wash, it may cause deterioration in dimensions of the part.

2- Drying
– Use air-compressor to dry the washed part.
– Make sure that the part is dry and uncured resin is cleaned up completely.
– If still uncured resin left on the part, wash it with fresh alcohol and dry again.

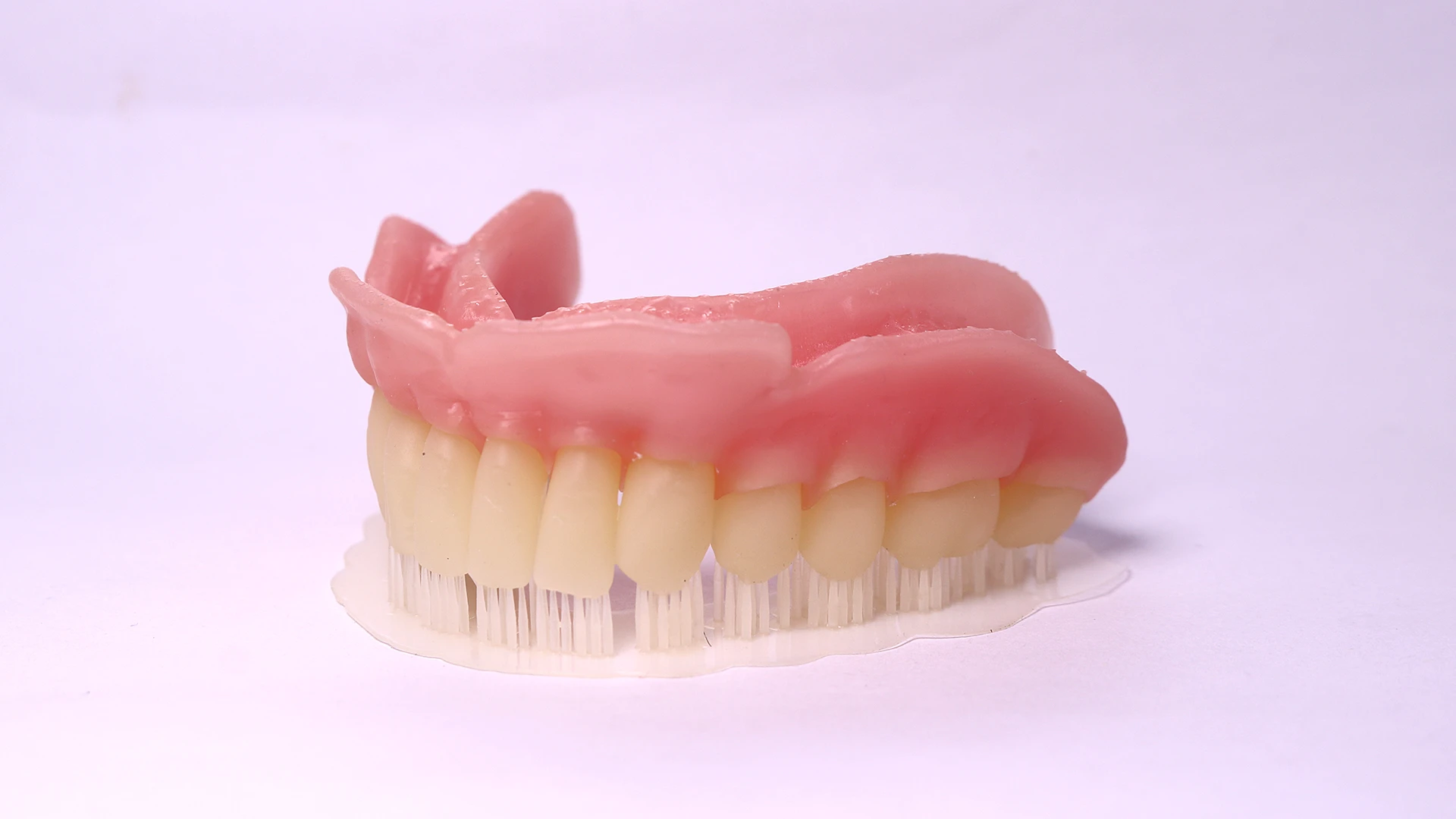

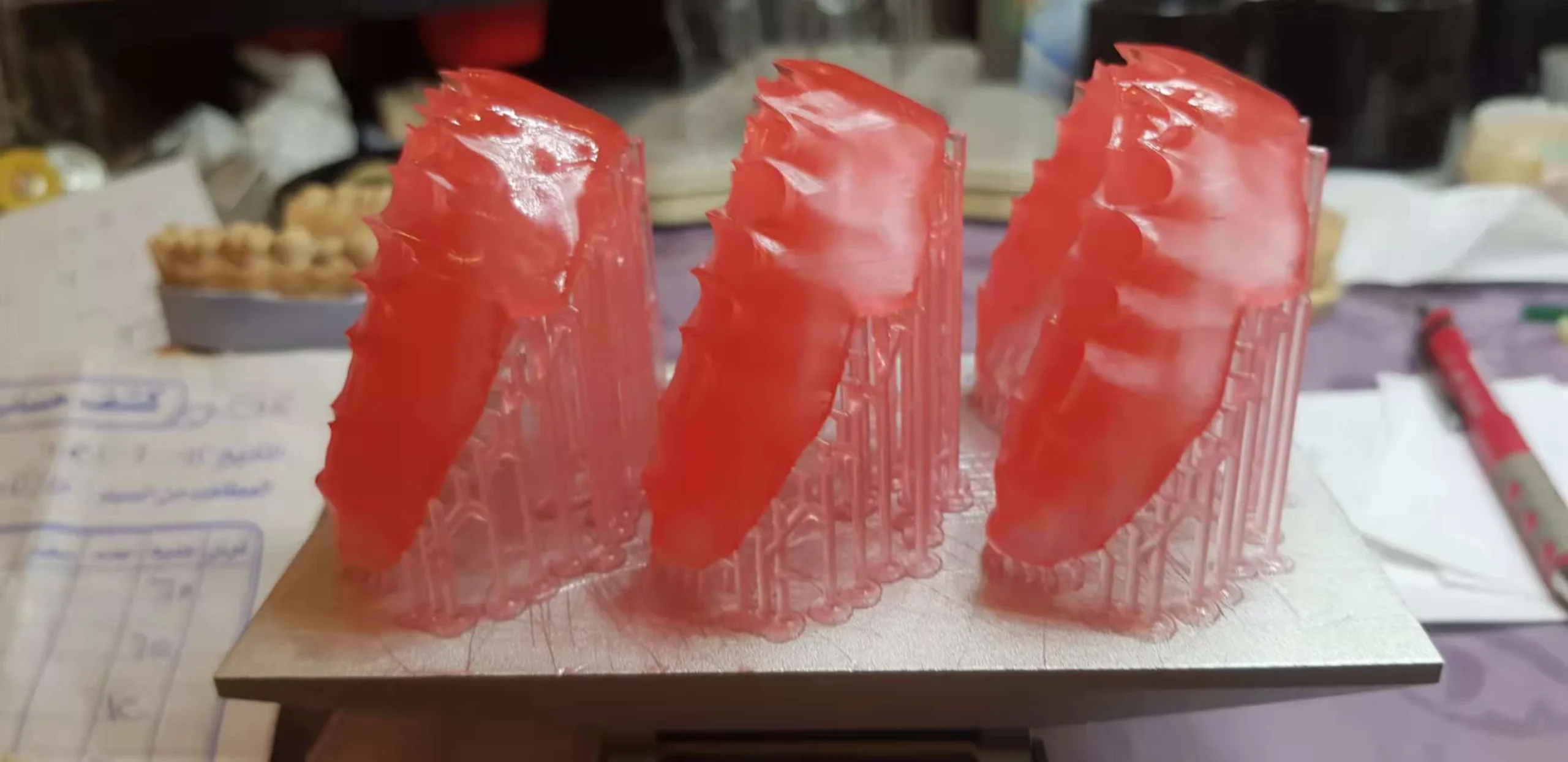

3- Part Removal

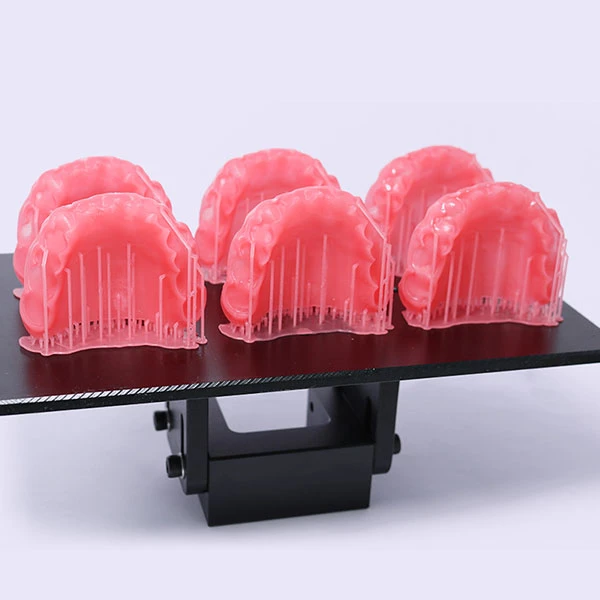

– Remove the printed part from the building plate using a scraping tool.
– Be very careful not to damage the model.

4- Post Curing
– UV post-curing for 5 minutes
– After the post curing, supports should be removed from the model cautiously and then desired sandblasting and polishing can be done
