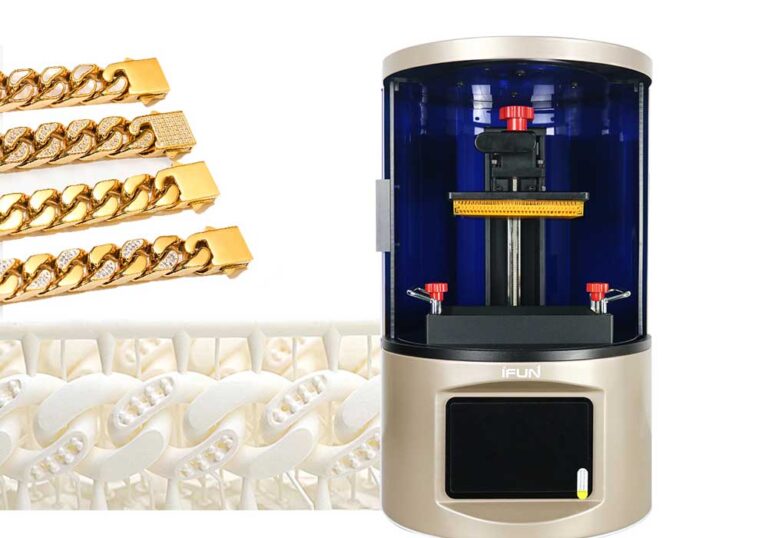

Gold Mini 9k

Jewelry Chairside Printer: Fast, Precise, Compact yet Powerful

The machine is capable of rapidly and accurately printing various wax models
Customized light source system, light uniformity up to 95%.
Printing small details without sticking, minimum gap 0.34mm.

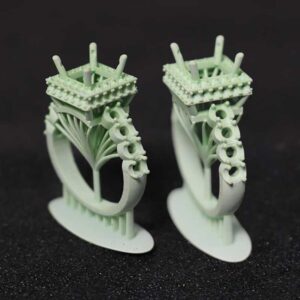

Light peeling technology, printing high wax resin with minimal or no support.
Customized Z-axis screw, smooth printing without obvious layering.

Cost-effective

Compared to regular DLP printers, the Mini Giant Jewelry UV curing 3D printer not only offers better surface smoothness but also comes at a price that is only 1/6th of a regular DLP printer. Its exceptional surface smoothness reduces the need for post-processing and polishing.

Precision consistency

The finished products printed in different positions using the same model remain consistent, with weight variances within a range of only ±0.02g. This ensures the precision and quality of each jewelry piece.

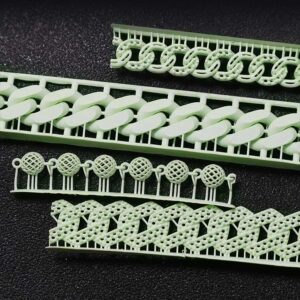

Fine gap chains

The machine has the ability to print movable chains with fine gaps, allowing chains to move freely and flexibly even with a gap as small as 0.34mm.

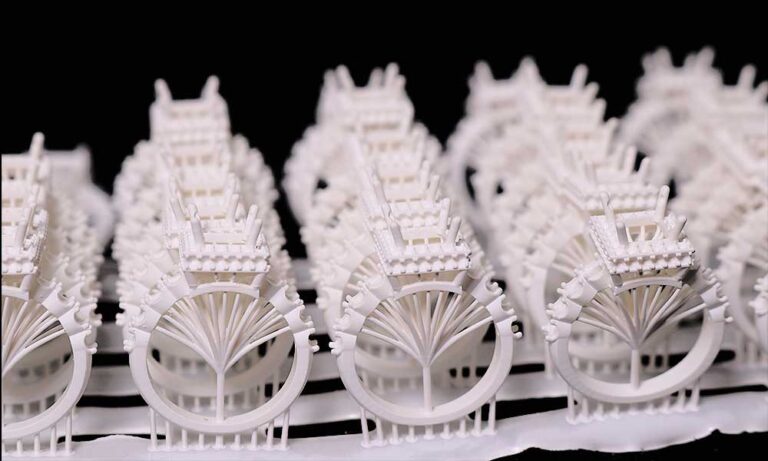

Stable batch production

The machine is capable of stable batch production, with minimal differences between different batches and a high coincidence rate of up to 98%.

Mini Giant Pro 9k Dental Printer Application

How to use Mini Giant Pro 9k printer to produce dental molds >>

Here are the steps for using 3D printing in dental models:

Design or scan the dental model.
Prepare and load the printing material.
Slice the model into printable layers.
Start the 3D printing process.
Remove any support structures if needed.
Post-process the printed model.
Use the model for treatment planning or patient education.
Follow dental guidelines for accuracy and precision.
Seek expert advice for proper utilization.

Note: The specific steps may vary based on equipment and materials. It’s important to adhere to professional standards and consult dental professionals for guidance.

Gold mini 9k 3D Printer	Parameters
Building size	14389150mm
Screen Resolution	8520×4320(9K)
Operation mode	5 inch OLED smart screen
Native Pixel Size XY	18um
XY Resolution	±0.05mm
Dynamic Layer Thickness	0.025-0.1mm
Screen	9k Mono LCD
Molding speed	10~20mm/hour
Molding method	MSLA
Software	ChiTu Box
Transmission mode	USB transmission,WIFI,wired network
The data format	STL,OBJ,SLC
Voltage	240V/110V 50Hz
Power	250W
Equipment Weight	21KG
Packing Size	400400580mm
Working environment	20℃-30℃
