Green Wax Casting Resin (700D)

IFUN resin provides a one-stop solution for jewelry manufacturing, with its unique low shrinkage formula ensuring excellent direct casting results. This allows jewelry designers to achieve more precise and high-quality works.

  • Extremely low shrinkage less than 0.25%
  • No stacking, no adhesion
  • Fine detail restoration
  • Casting with low thermal expansion
  • Simple post-processing
Get A Sample

Extremely Low Shrinkage

with an absolute dimensional error within the range of 0.01-0.03 when used with compatible printers, and a shrinkage rate not exceeding 0.25%. This ensures dimensional accuracy of castings, with most tolerances within reasonable ranges

No Piling, No Adhesion

It excels in areas with special structures, such as side holes and fine clearances (0.2mm), avoiding piling and adhesion issues, thereby preserving the integrity and precision of castings.

Fine Detail Reproduction

can clearly depict the clasps in diamond settings,with high fidelity in concave-convex shapes, clear organization of filament structures, and sharp angles. It also achieves high fidelity in reproducing specific details, meeting the meticulous design requirements.

Convenient Post-processin

Post-processing is simple and time-saving, significantly enhancing production efficiency and reducing the time and manpower required for subsequent processing steps.

Green Wax Resin Application

How to Make and Use 3D Printed Green Wax Resin >>

The application process of 3D printing green wax using resin involves the following steps:

1. Design Creation: The jewelry design is created using computer-aided design (CAD) software, allowing for intricate and customized designs.

2. 3D Printing: The design is then sent to a 3D printer, which uses jewelry wax resin to build the physical model layer by layer, capturing fine details and intricacies.

3. Casting: The 3D printed wax model is used to create a mold, into which molten metal is poured to form the final jewelry piece.

4. Finishing: The metal jewelry piece is then polished and finished by skilled artisans to achieve the desired look and quality.

Specifications of Green Wax Resin(700D)

  • ContentData valueTesting method
    Viscosity280cps(25℃)ASTM D1084-1997
    Density1.05~1.1g/cm³ASM D1875-69(1980)
    Shrinkage<0.25%Capillary method
    Hardness40DASTM D2240-05(2010)

    1. Clean the residual resin on the model surface for about 30 seconds
    2. Clean the model with clean alcohol for about 1 minute
    3. Ultrasonic cleaning for 2 minutes
    4. Take out the model and blow dry the alcohol on the model
    5. Post-cure for 5 minutes

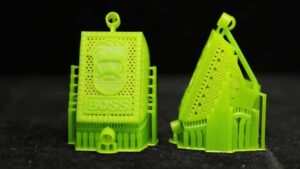

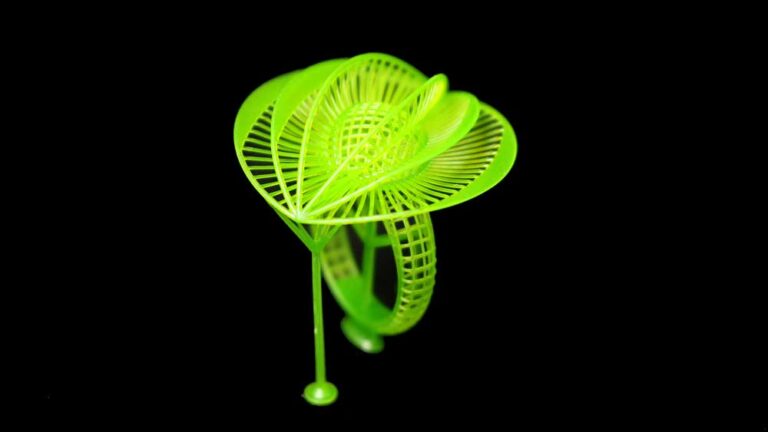

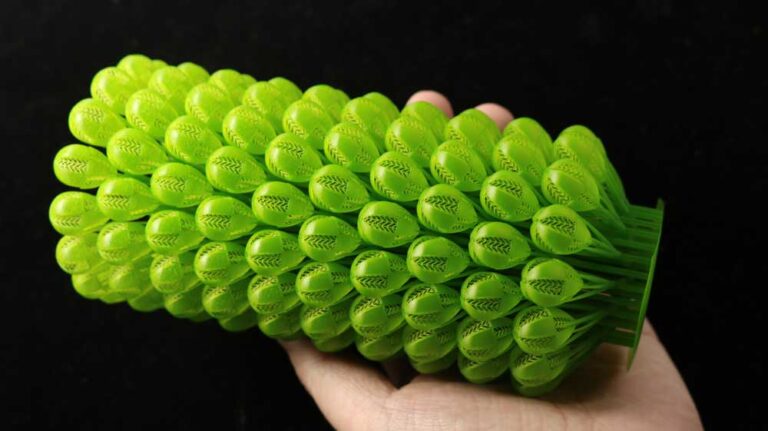

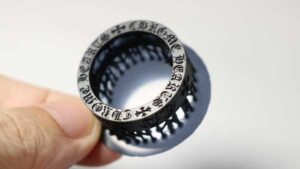

Green Wax Print Samples
