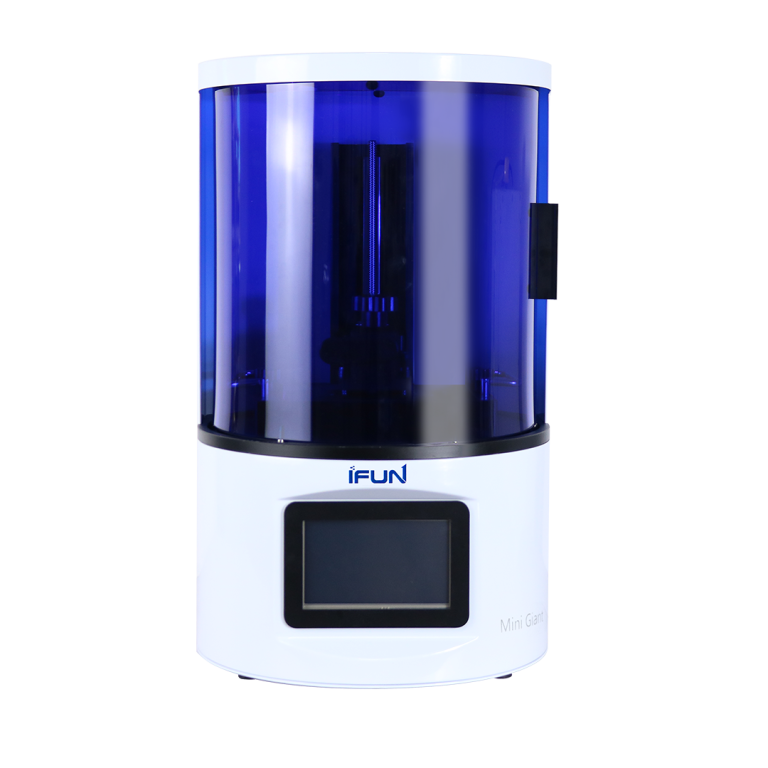

Mini Giant Pro 9k
Dental Chairside Printer: Fast, Precise, Compact yet Powerful
- Unified Production: Utilizes a light source solution with a more uniform optical path, achieving over 96% light uniformity. Minimizes weight differences between printed parts during production, with errors controlled within ±0.03g.
- Cold-Resistant: Equipped with a heating system to maintain resin temperature within the optimal molding conditions of 25~30℃. Enhances the printer’s adaptability to different environments, reducing the need for modifications to customer settings.
- Reduced Post-Processing: Enlarging high-definition model images by 50 times minimizes visible layer lines, allowing for minimal post-processing after solidification. This saves labor and time costs for subsequent applications.
- Precision Printing: Achieves XY axis accuracy of 18μm through strict material selection and stable operation, striving for accurate 1:1 model reproduction. Tailored for efficient desktop manufacturing.
- Expanded Material Choices: IFUN offers a diverse range of proprietary resins, including jewelry, dental, and engineering resins, allowing for multiple applications with a single machine. Third-party resins are also supported, providing even more options for you.
Precise printing
XY axis accuracy is 18μm, strict selection of materials, stable operation, and accurate restoration of the model 1:1 as much as possible, born for efficient desktop manufacturing.
Uniform production
Adopting a light source solution with a more uniform light path, the light uniformity is over 96%. The weight of printed parts during the production process is more standardized, and the error is basically controlled within ±0.03g.
Heating system
The machine adds a heating system to keep the resin temperature at the optimal molding condition of 25~30°C, increasing the printer's environmental adaptability.
Smooth surface
Enlarge the high-definition model image by 50 times, basically without layers , which means that subsequent applications can be carried out without grinding after curing, saving you labor and time costs.
Mini Giant Pro 9k Dental Printer Application
How to use Mini Giant Pro 9k printer to produce dental molds >>
Here are the steps for using 3D printing in dental models:
- Design or scan the dental model.
- Prepare and load the printing material.
- Slice the model into printable layers.
- Start the 3D printing process.
- Remove any support structures if needed.
- Post-process the printed model.
- Use the model for treatment planning or patient education.
- Follow dental guidelines for accuracy and precision.
- Seek expert advice for proper utilization.
Note: The specific steps may vary based on equipment and materials. It’s important to adhere to professional standards and consult dental professionals for guidance.
| Mini Giant Pro 9k 3D Printer | Parameters |
| Building size | 143*89*150mm |
| Screen Resolution | 8520×4320(9K) |
| Operation mode | 5 inch OLED smart screen |
| Native Pixel Size XY | 18um |
| XY Resolution | ±0.05mm |
| Dynamic Layer Thickness | 0.025-0.1mm |
| Screen | 9k Mono LCD |
| Molding speed | 55mm/hour(max.) |
| Molding method | MSLA |
| Molding band | 405nm |
| Software | ChiTu Box |
| Transmission mode | USB transmission,WIFI,wired network |
| The data format | STL,OBJ,SLC |
| Voltage | 240V/110V 50Hz |
| Power | 250W |
| Equipment Weight | 21KG |
| Packing Size | 400*400*580mm |
| Working environment | 20℃-30℃ |
幻灯片内容… (2)

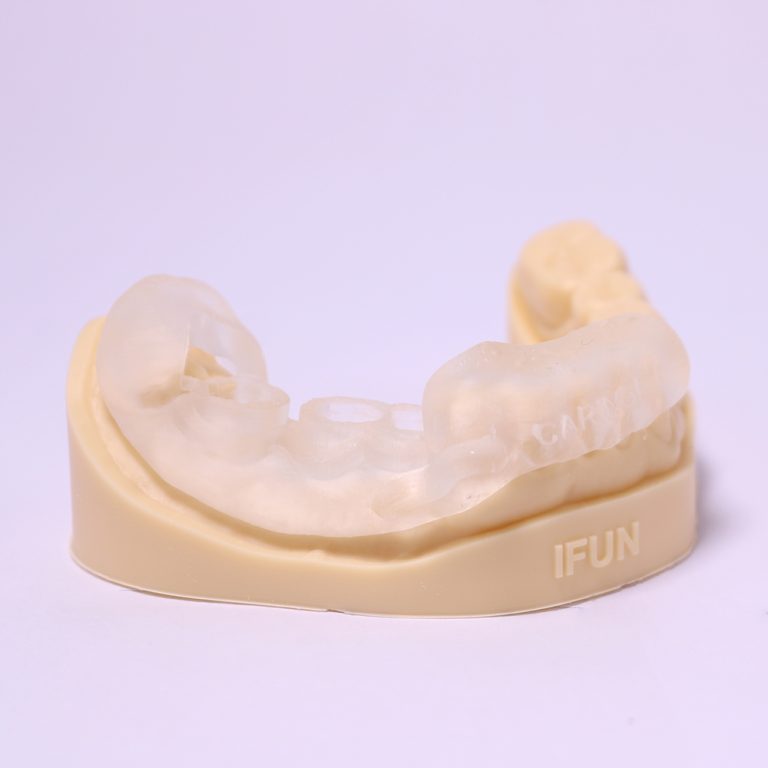

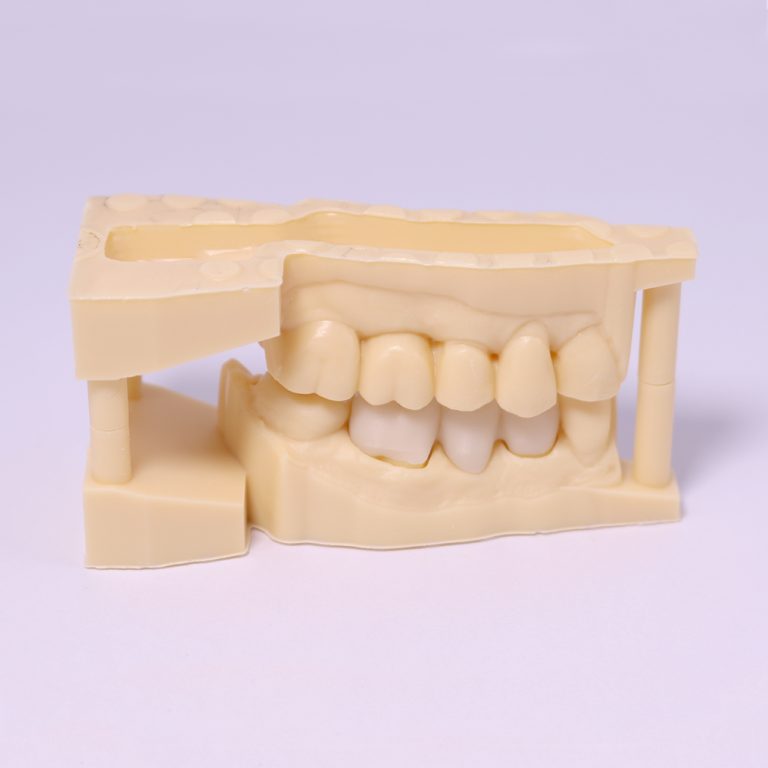

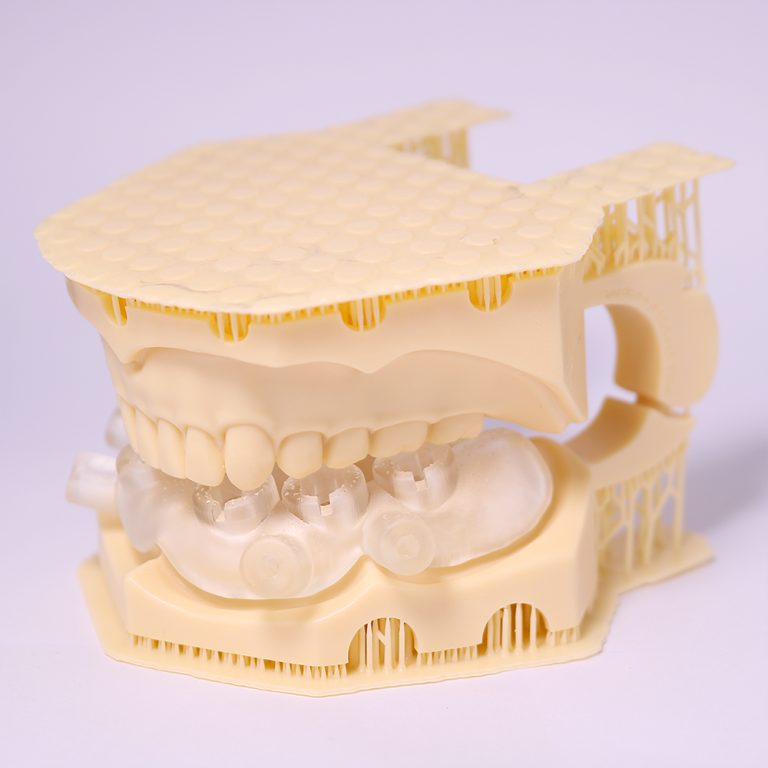

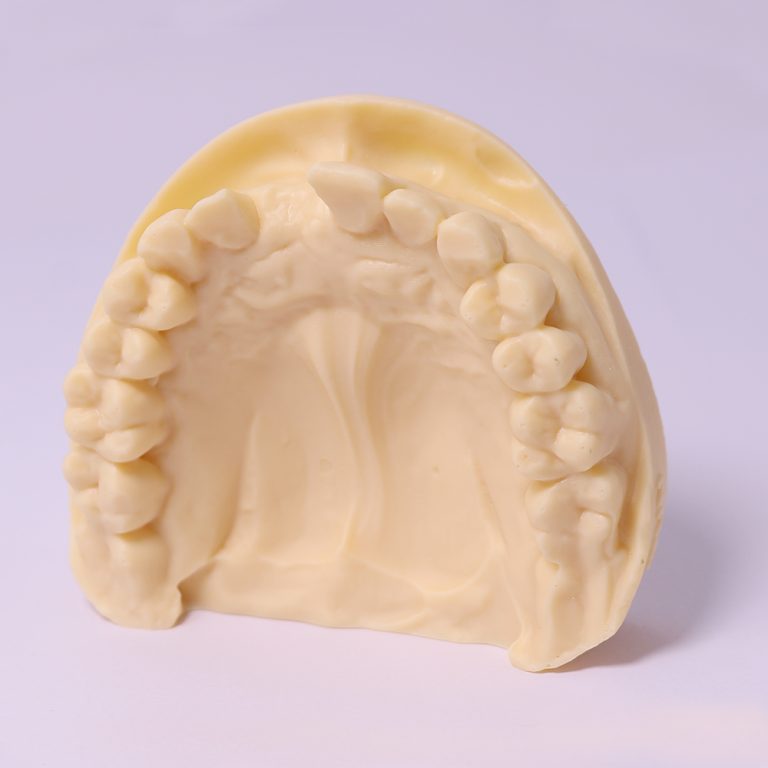

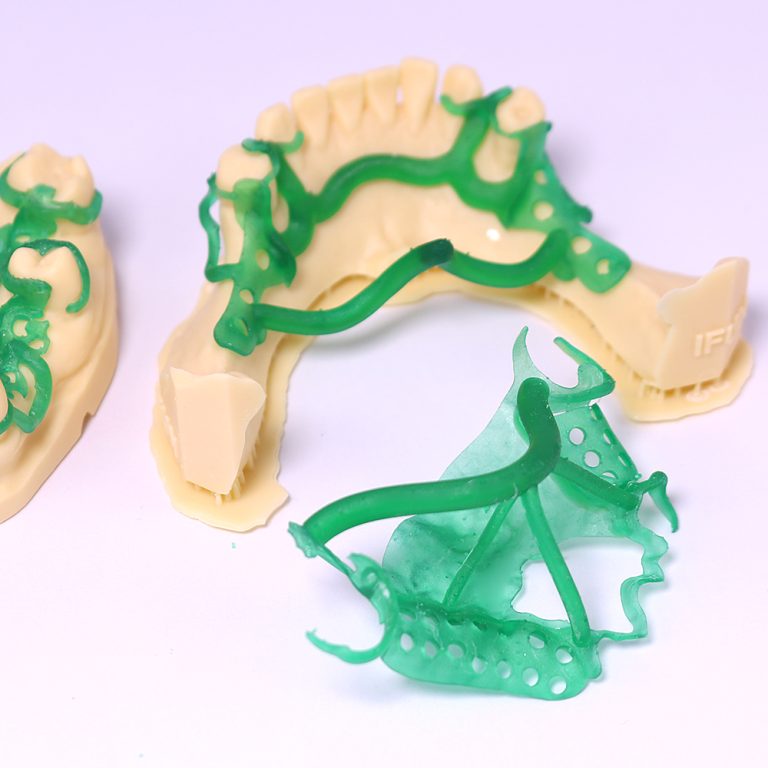

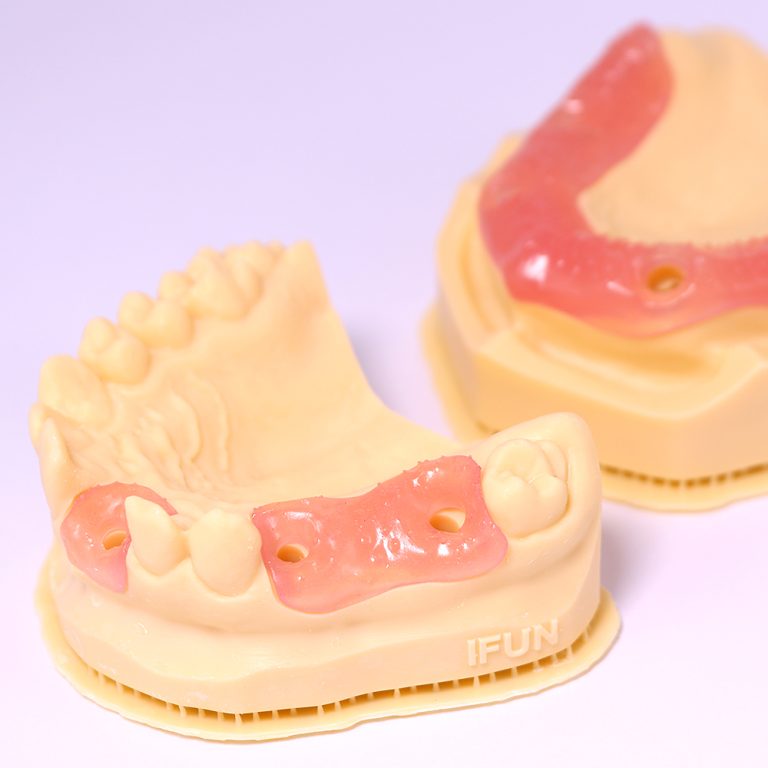

Mini Giant Pro 9k Print Samples
Enable 3D Digital Production
