High-Precision Dental Model Resin 3160 for Orthodontics & Implants
The 3160 Dental Model Resin eliminates model warping, poor margin fits, and cast breakage across orthodontic, implant, and restoration workflows. Built with high heat deflection (120°C) and ultra-low shrinkage (<0.5%), it prevents distortion during high-temperature aligner thermoforming and guarantees true-to-CAD margin accuracy for crowns and surgical guides. Its high hardness (>82D) withstands repeated lab manipulation without chipping. By maintaining full-plate tolerances within 0.08 mm, this resin cuts reprint material waste, eliminates manual grinding time, and accelerates patient case turnarounds for dental labs and clinics.
Engineered for Uncompromising Dental Precision
Overcoming model deformation, fit inaccuracies, and fragile casts with high-temperature resistance and ultra-low shrinkage photopolymer technology.
Warp-Free Thermoforming
Withstands temperatures up to 120°C without softening or deforming during vacuum forming. Keeps orthodontic staging models strictly locked in shape, completely eliminating aligner remakes caused by heat distortion.

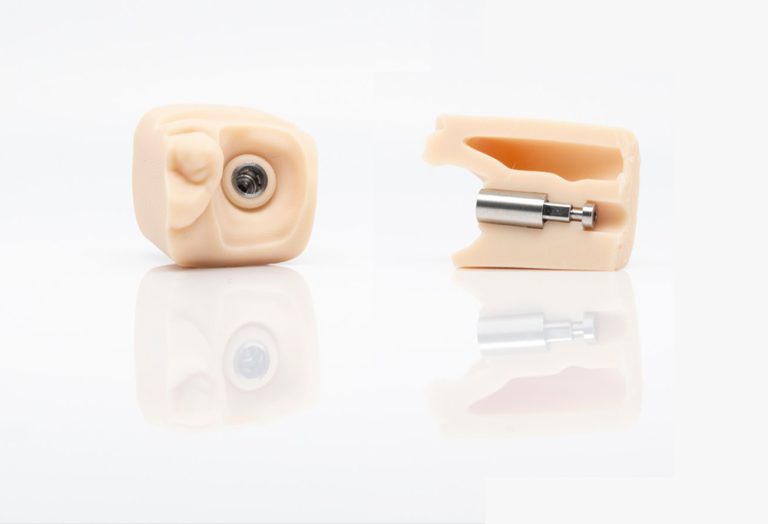

±20μm Precision Assembly
Controls assembly accuracy within ±20 microns for flawless guide positioning. Guarantees true-to-CAD margins, bypassing manual grinding and accelerating case turnaround times.
Gypsum-Level Durability
Combines >82D surface hardness with >60 MPa flexural strength to prevent chipping or breaking. Built to endure aggressive lab handling and repeated trial fittings without deforming.

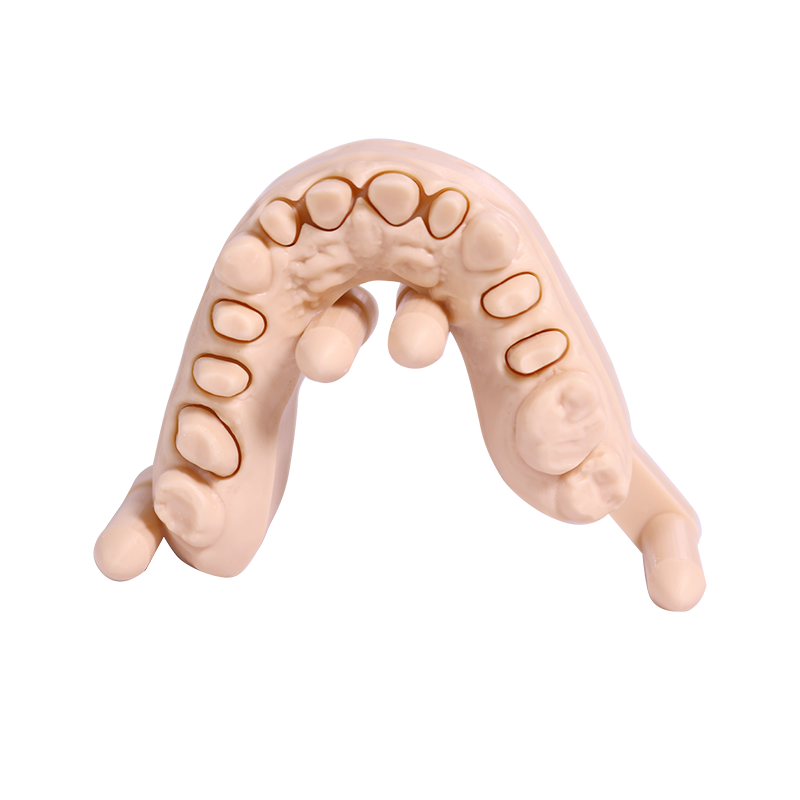

Matte Glare-Free Surface
Features a natural matte finish that eliminates glare under intense laboratory lighting. Allows technicians and dentists to mark margin lines and inspect micro-details effortlessly.
Technical Performance Matrix
Verified parameters and testing protocols for jewelry casting validation.
| Technical Spec | Parameter Value | Testing Method |
|---|---|---|
| Color | Yellow | Visual Inspection |
| Viscosity | 380–400 cps (25℃) | ASTM D1084-1997 |
| Density | 1.2 g/cm³ | ASM D1875-69（1980） |
| Shrinkage | ≤ 0.5% | Capillary Method |
| Hardness | 82D | ASTM D2240-05(2010) |
| Deformation Temperature | 120℃ | ASTM D1929-1996 |
| Bending Strength | > 60 MPa | ASTM D1781 |
Engineering Notes & Technical Interpretation
An engineering analysis of how key material specifications eliminate fitting errors and optimize daily dental laboratory production.
Why is a deformation temperature of 120°C critical for orthodontic applications?
Producing clear aligners requires thermoplastic sheets to be heated and vacuum-sucked over a printed model. If the resin's deformation temperature is too low, the heat from the plastic will cause the teeth on the model to shift or shrink. The 3160 resin’s 120°C threshold ensures the model remains rigidly locked in place, guaranteeing the resulting aligner applies the exact biomechanical forces prescribed by the orthodontist.
How does a shrinkage rate of < 0.5% impact lab profitability?
Photopolymers naturally shrink during the UV curing process. High shrinkage leads to models that are physically smaller than the digital design, causing crowns to fit too tightly and implant guides to misalign. By controlling shrinkage to under 0.5%, this resin ensures a true-to-CAD print. This eliminates the labor costs associated with technicians manually grinding restorations to fit, allowing a lab to increase its daily case output.

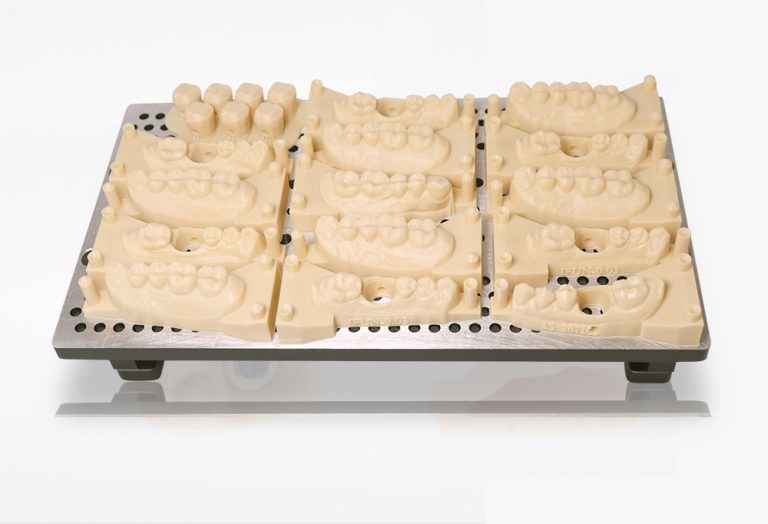

What is the manufacturing value of full-plate dimensional tolerance within 0.08 mm?
In high-volume dental labs, printers are often loaded with multiple models across the entire build plate. A tolerance variation greater than 0.1 mm can cause models on the edge of the plate to fail or fit poorly. By strictly controlling tolerance within 0.08 mm across the whole plate, the 3160 resin ensures unvarying batch consistency. You get the exact same precision whether you print one model in the center or twenty models edge-to-edge, heavily reducing scrap rates.
