White Wax Casting Resin (800D)
The iF800D is a breakthrough material for rapid printing of castable models, with a high wax content for easy post processing and lighter finished products.
- Can easily print on LCD machine.
- High wax content, can burn completely without ash.
- Combined with resin powder, the casting effect can reach the shipping level.

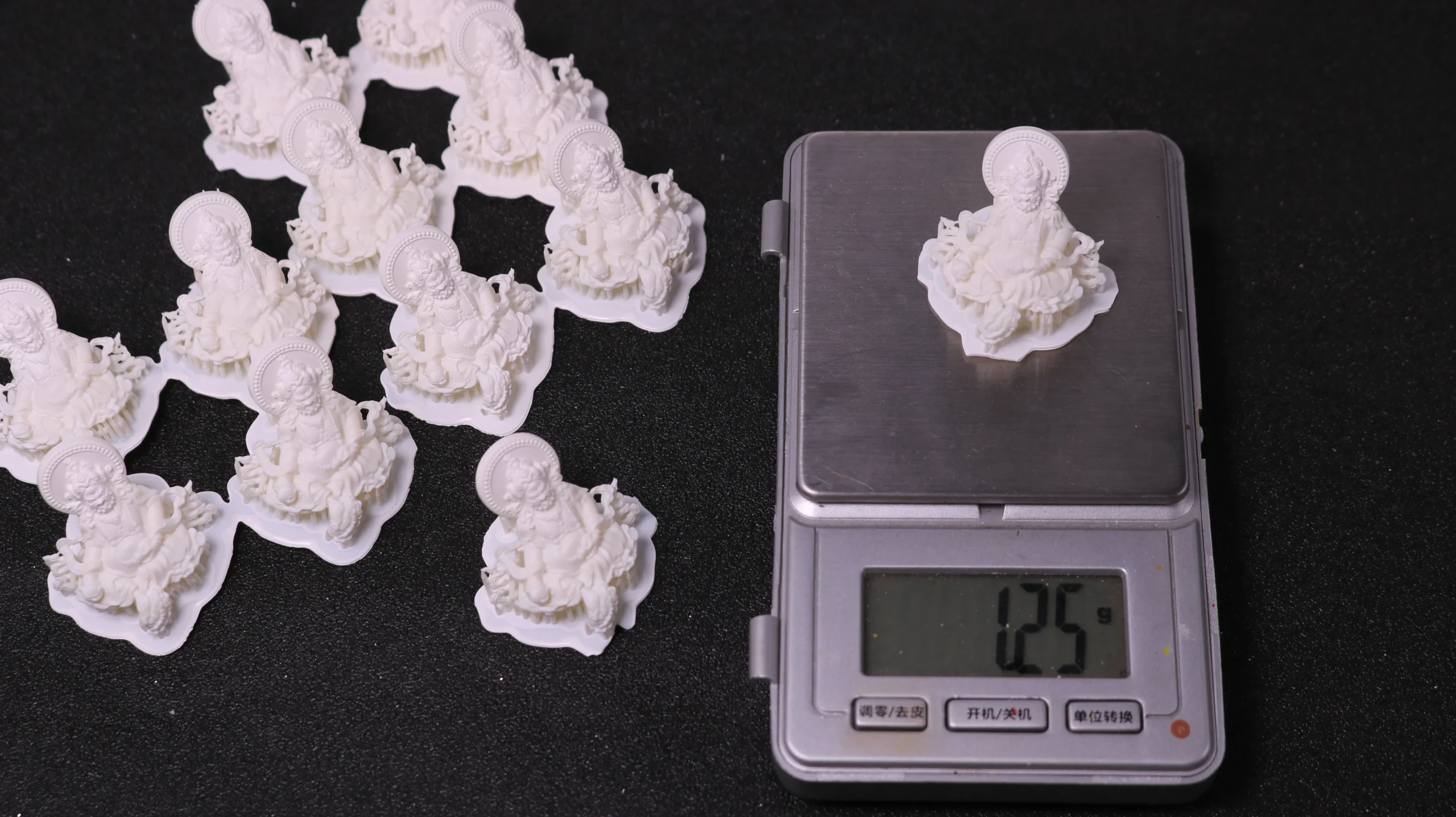

- Lighter weight, the same model, printed with white wax will be 45% lighter than ordinary resin.

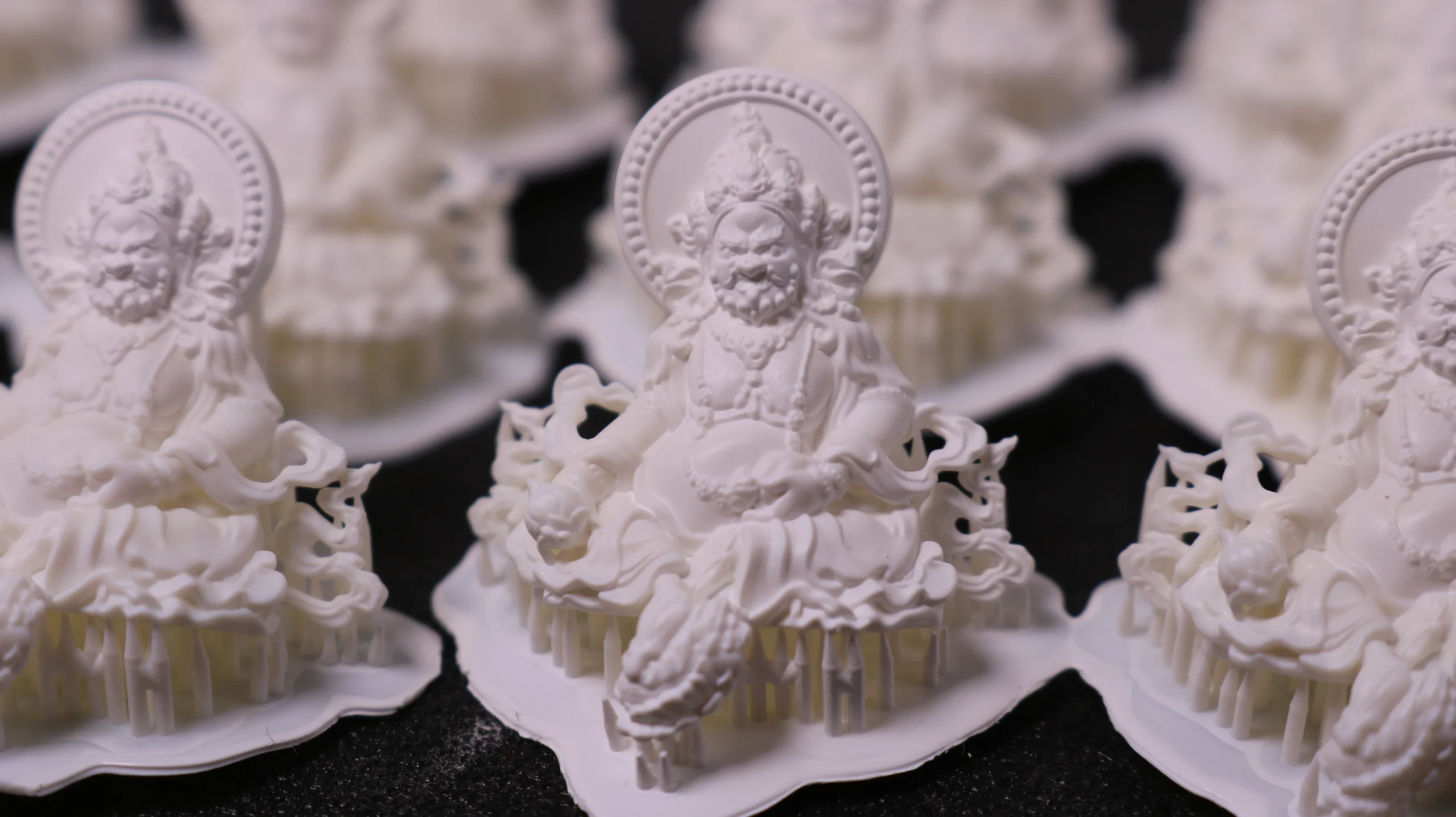

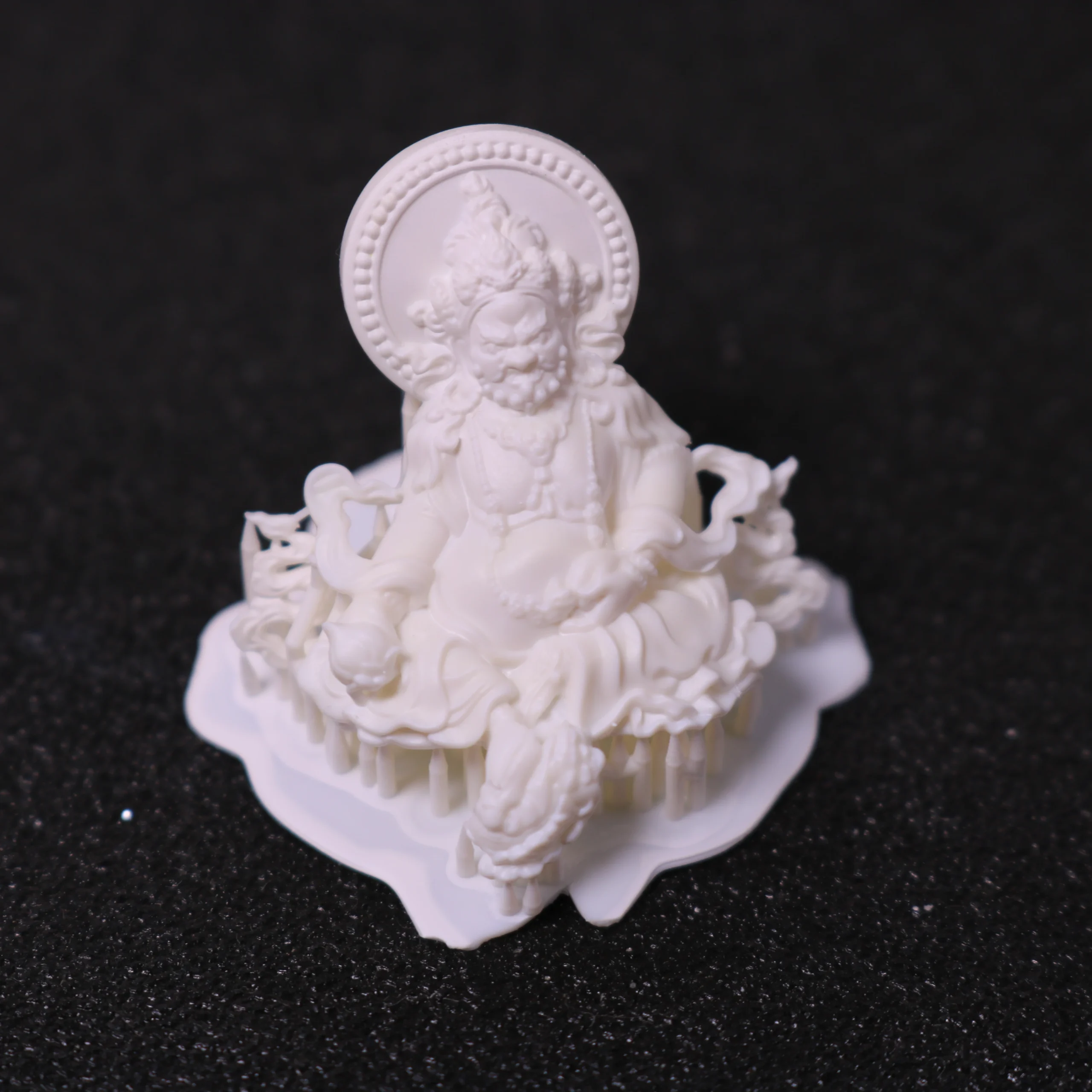

- Suitable jewelry types: diamond rings, fine coins, Buddha pendants, thick-walled pieces, etc.
- Suitable metal: gold, silver.
Easy printing
Easy to print, with a success rate of up to 99%. It can also be printed on LCD machines. If used with an oxygen permeable printer, it will achieve the best surface effect.
Smooth surface
Used with ifun printer, it can achieve the best surface smoothness, delicate and smooth, no need for polishing later.
Accurate inlay
Overcoming the problem of high shrinkage rate of white wax, diamonds can be accurately inlaid after post-processing.
Easy casting
Even novices can achieve good casting results, burning without ash, excellent casting effect, no need to hold the mold later
White Wax Application
How to Make and Use 3D Printed White Wax Resin >>
The application process of 3D printing wax jewelry using resin involves the following steps:
1. Design Creation: The jewelry design is created using computer-aided design (CAD) software, allowing for intricate and customized designs.
2. 3D Printing: The design is then sent to a 3D printer, which uses jewelry wax resin to build the physical model layer by layer, capturing fine details and intricacies.
3. Casting: The 3D printed wax model is used to create a mold, into which molten metal is poured to form the final jewelry piece.
4. Finishing: The metal jewelry piece is then polished and finished by skilled artisans to achieve the desired look and quality.

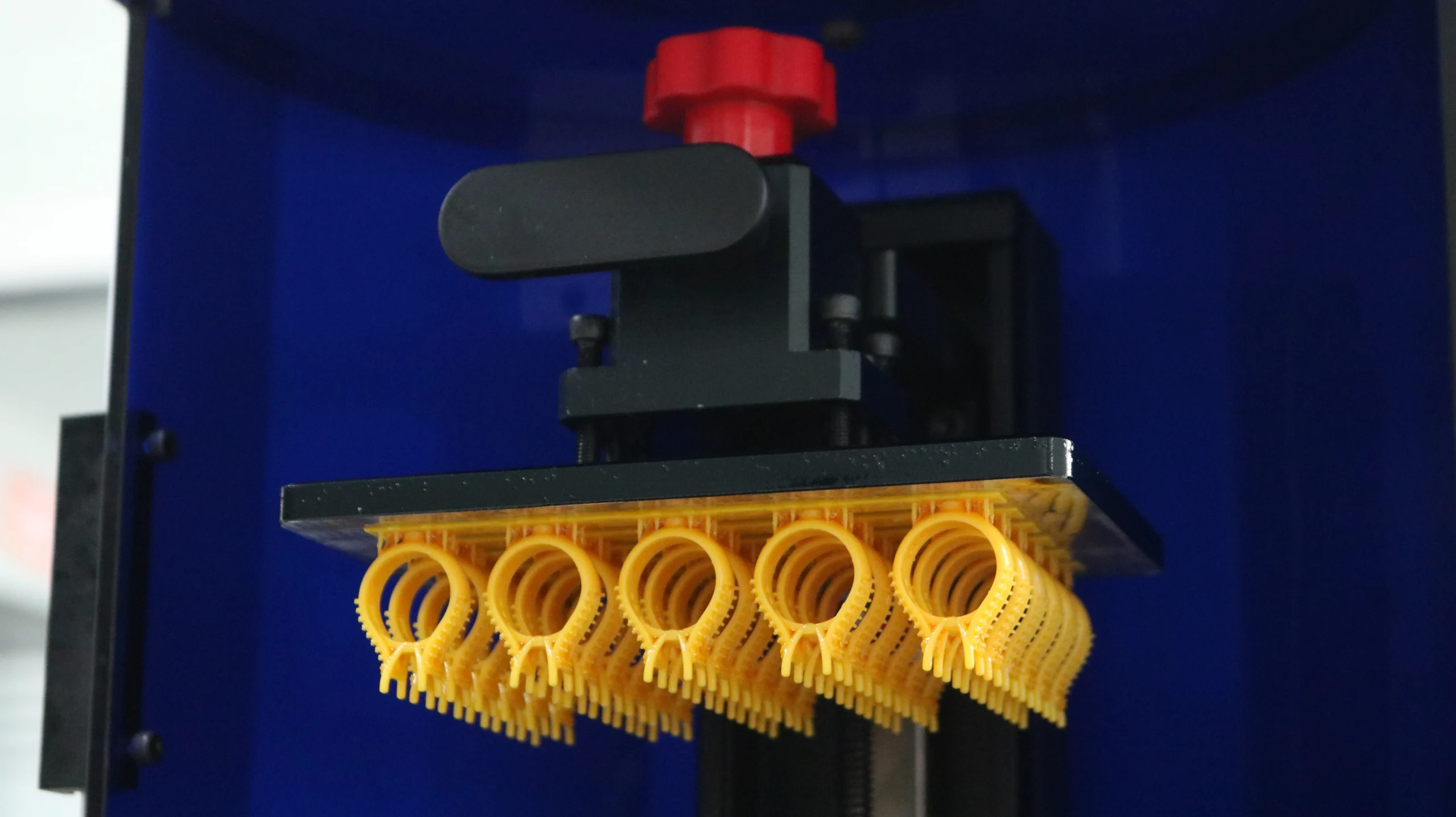

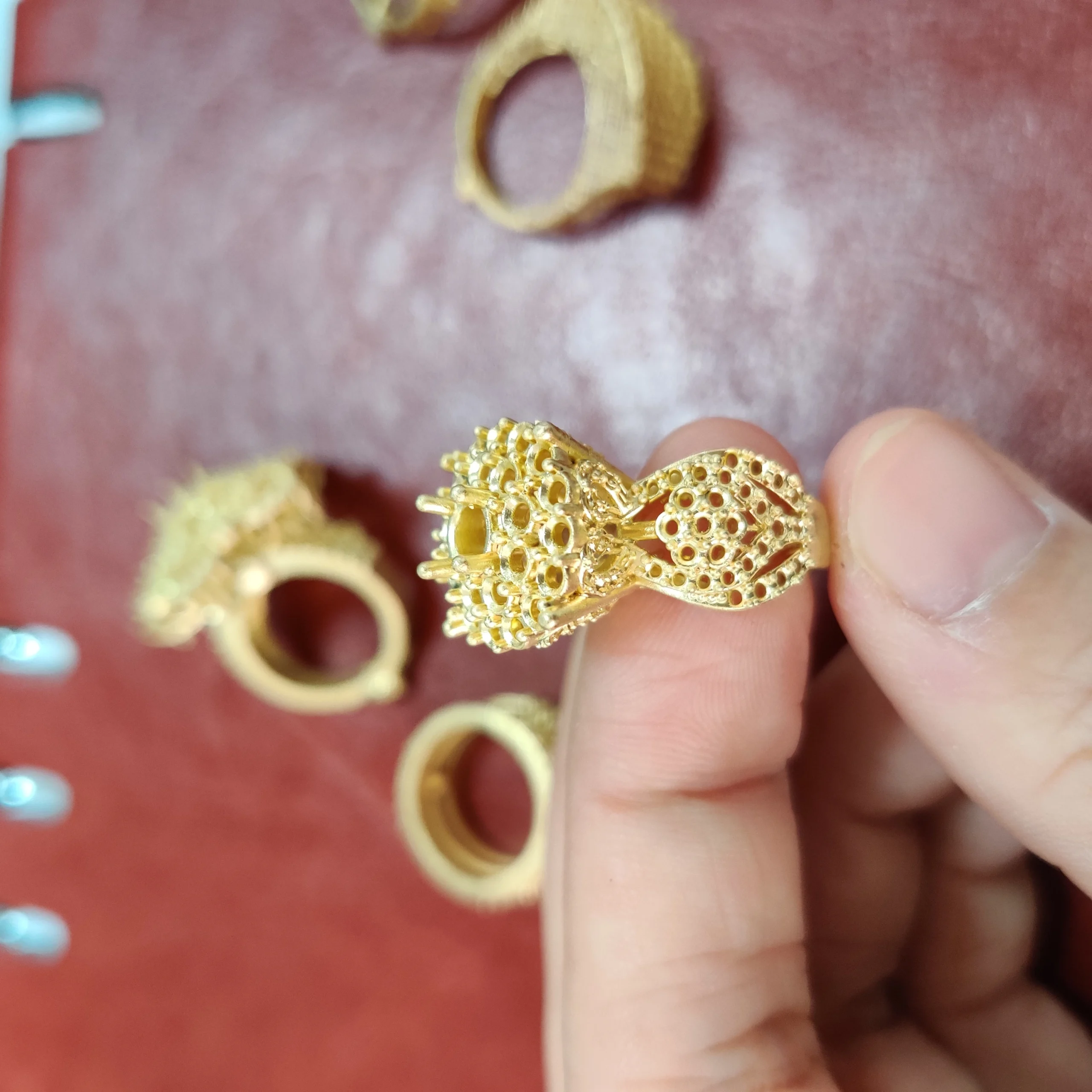

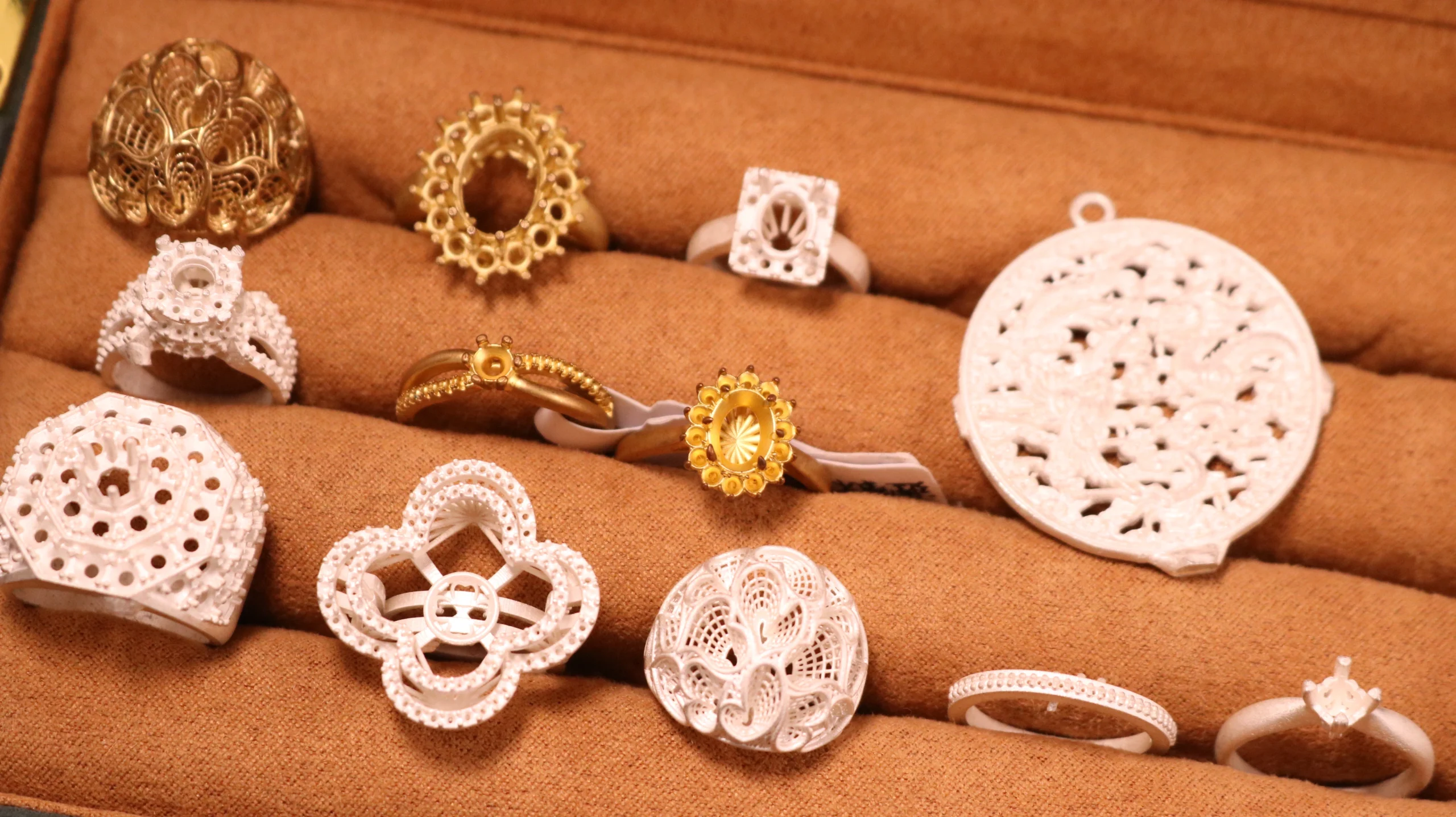

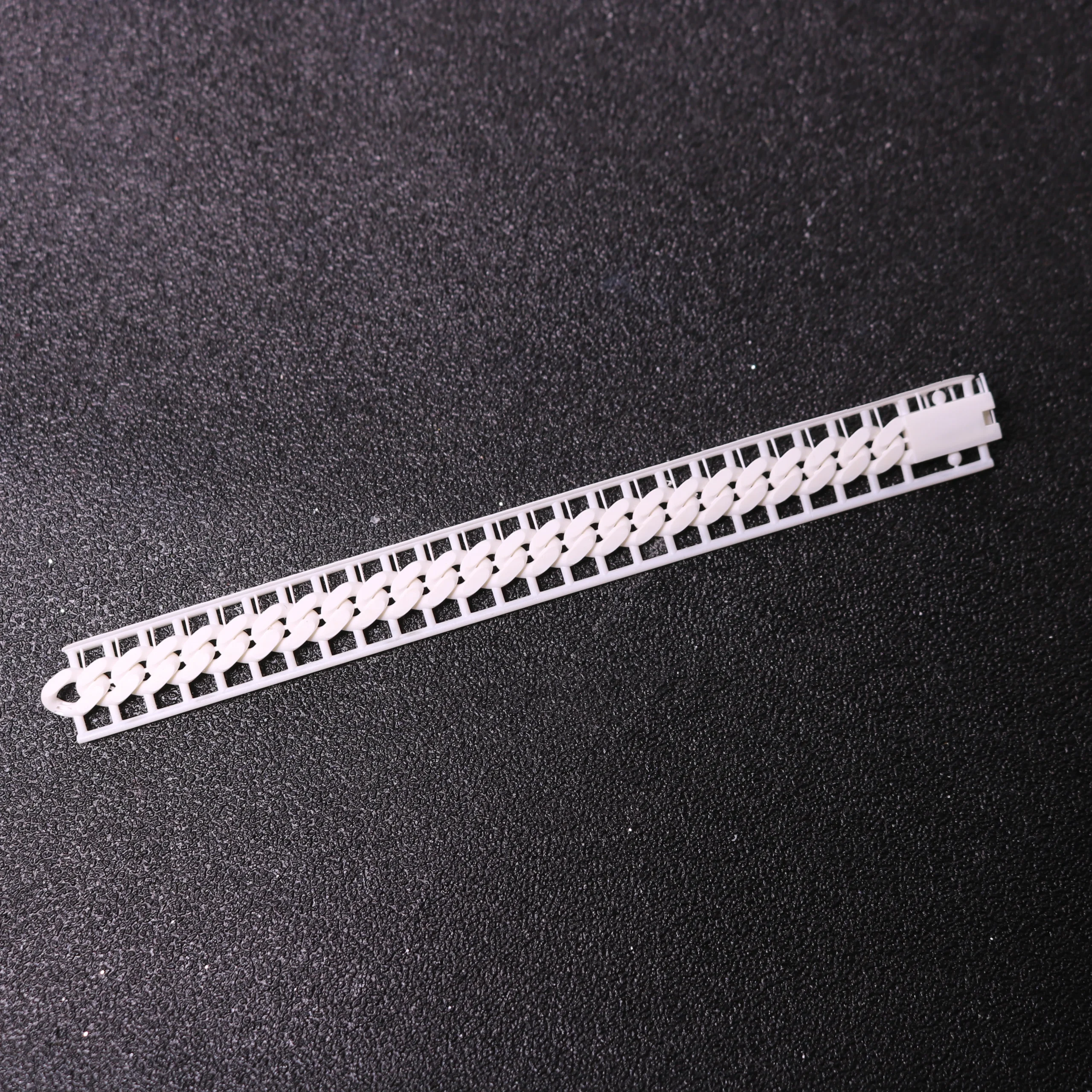

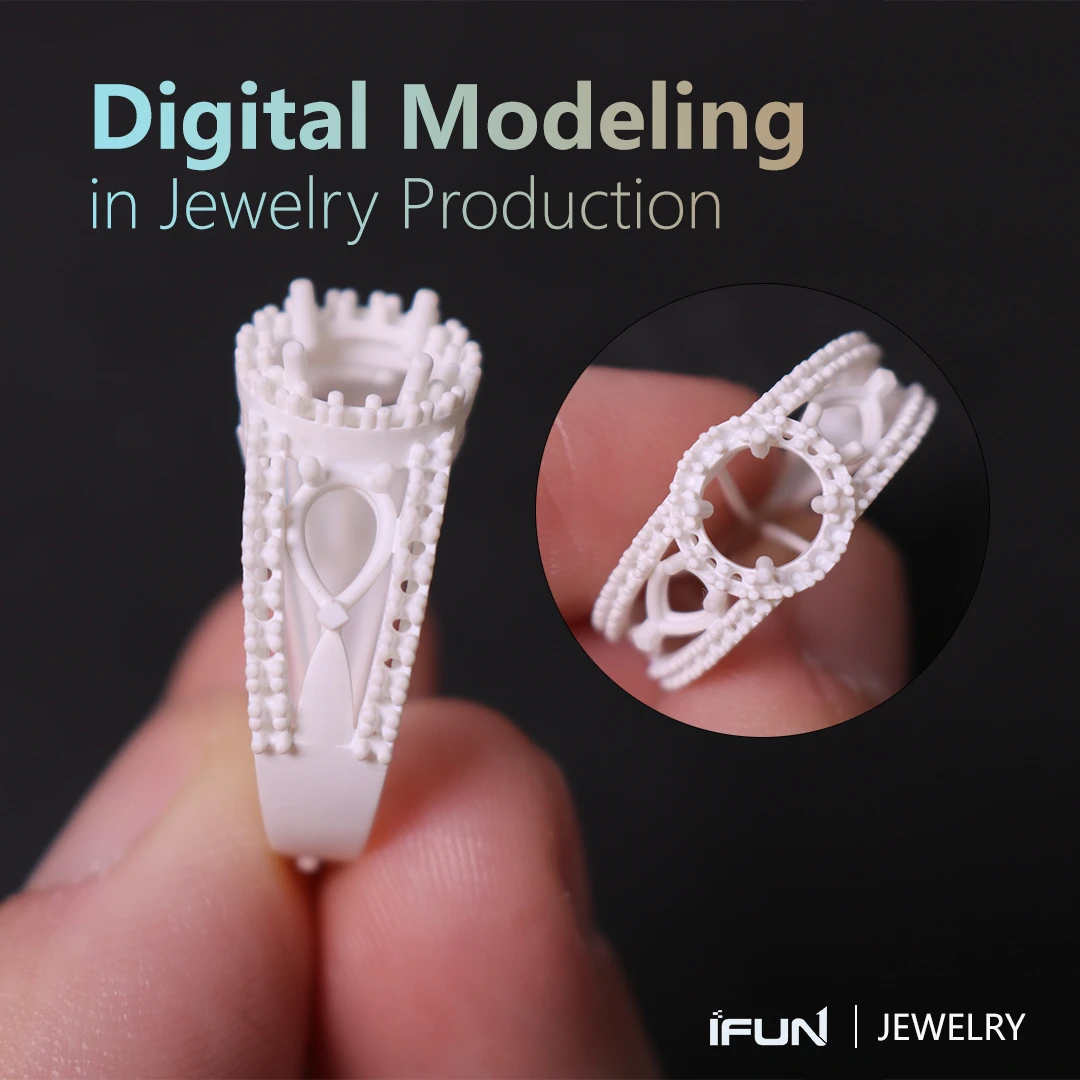

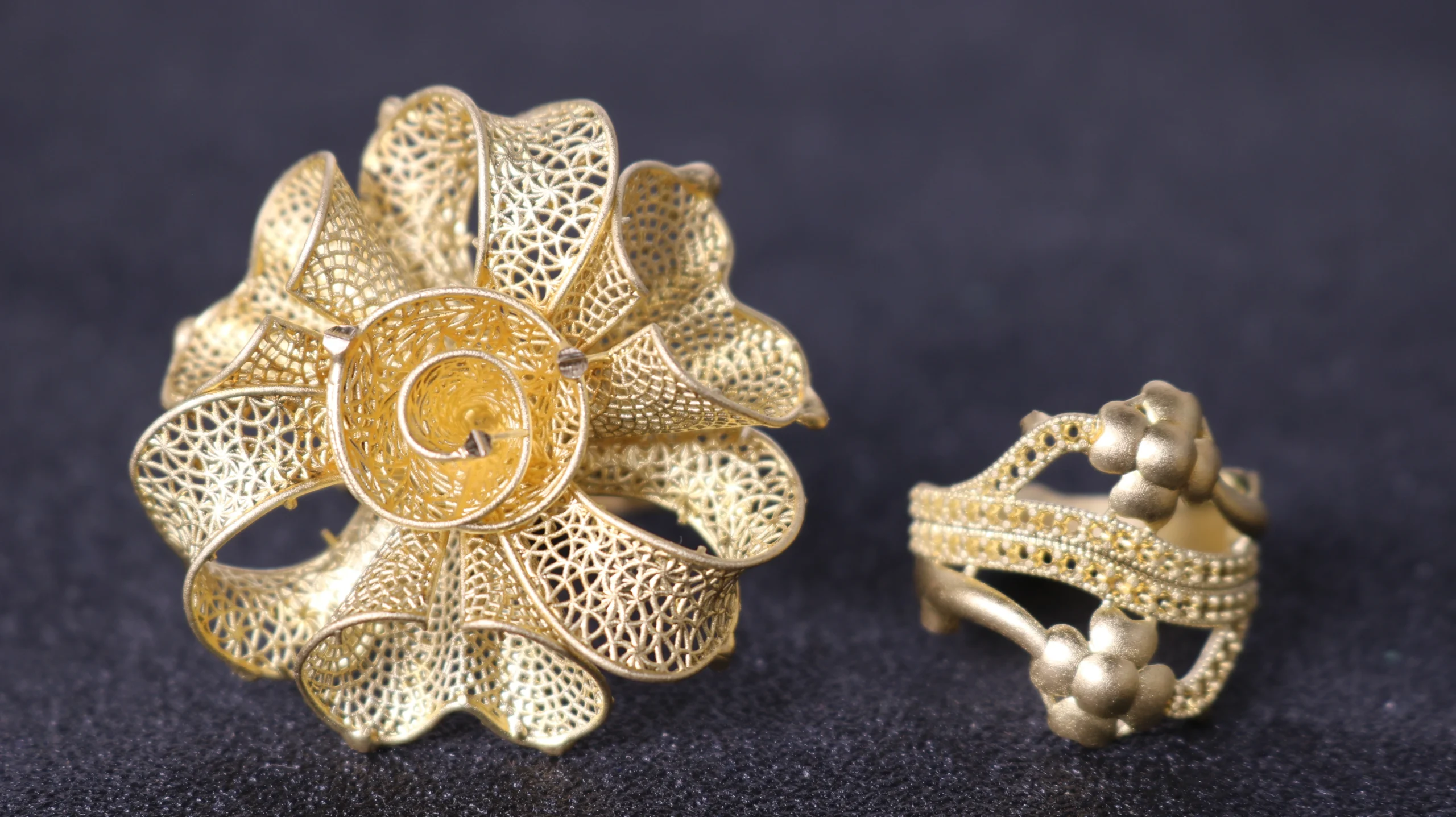

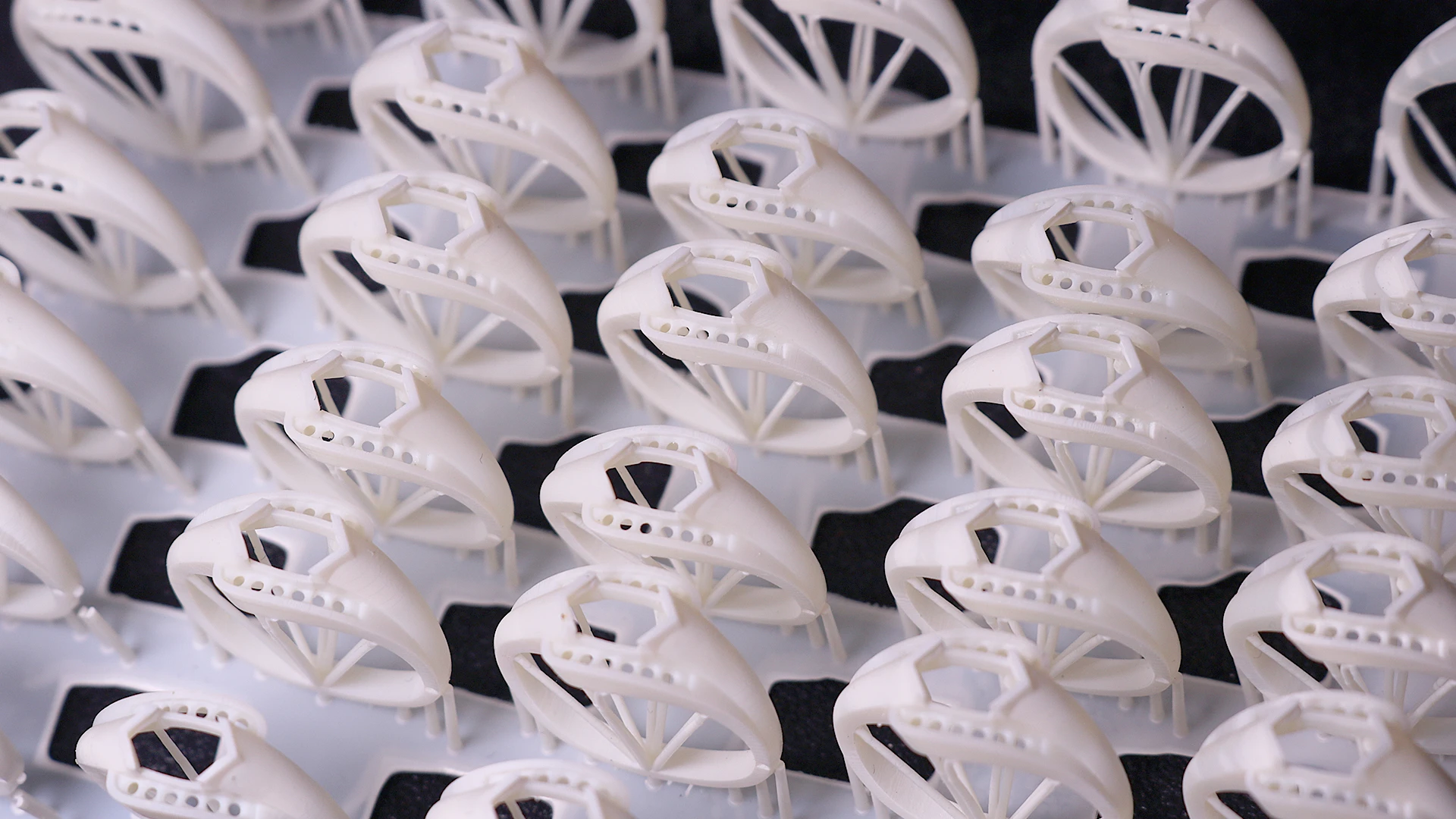

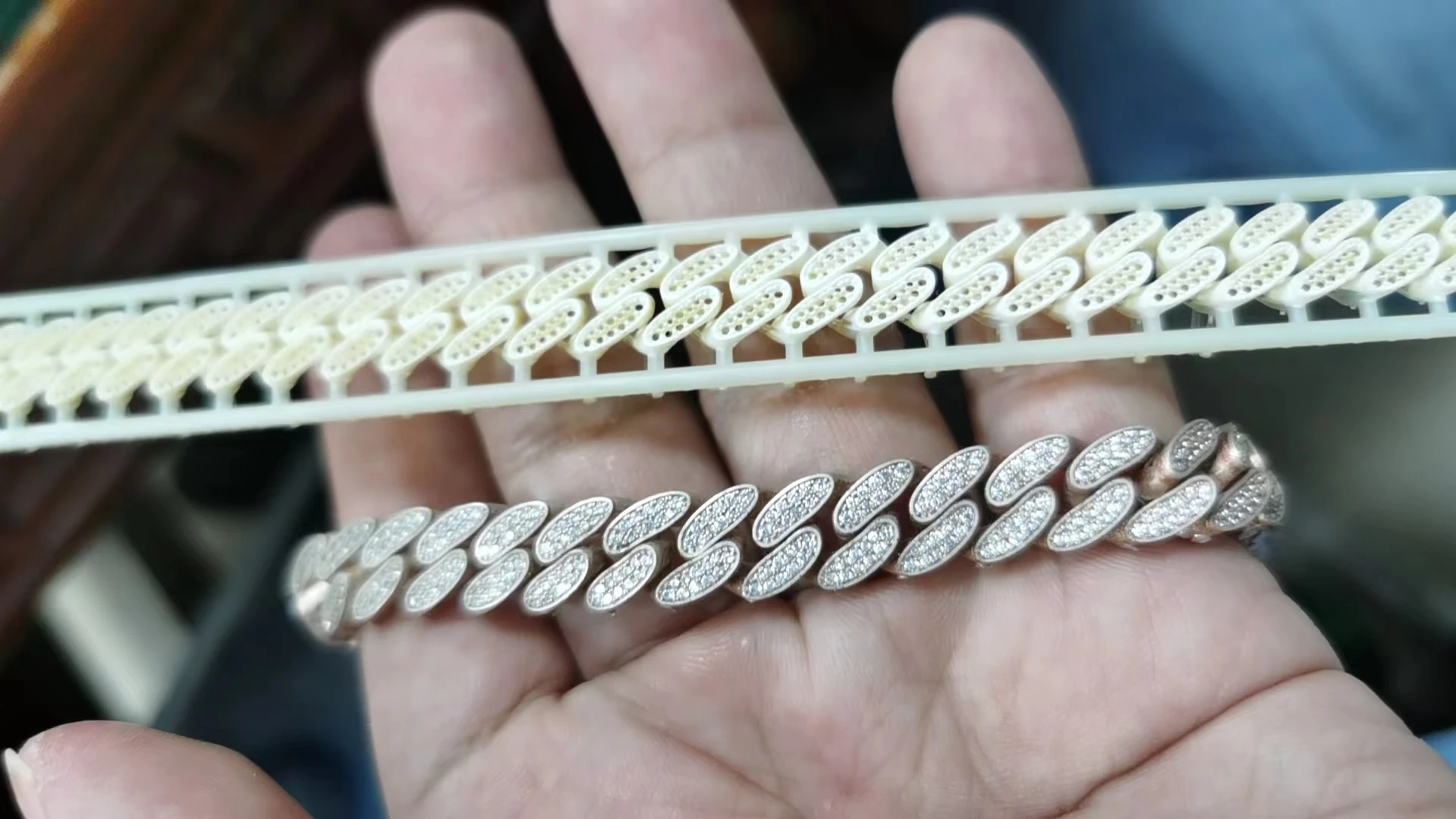

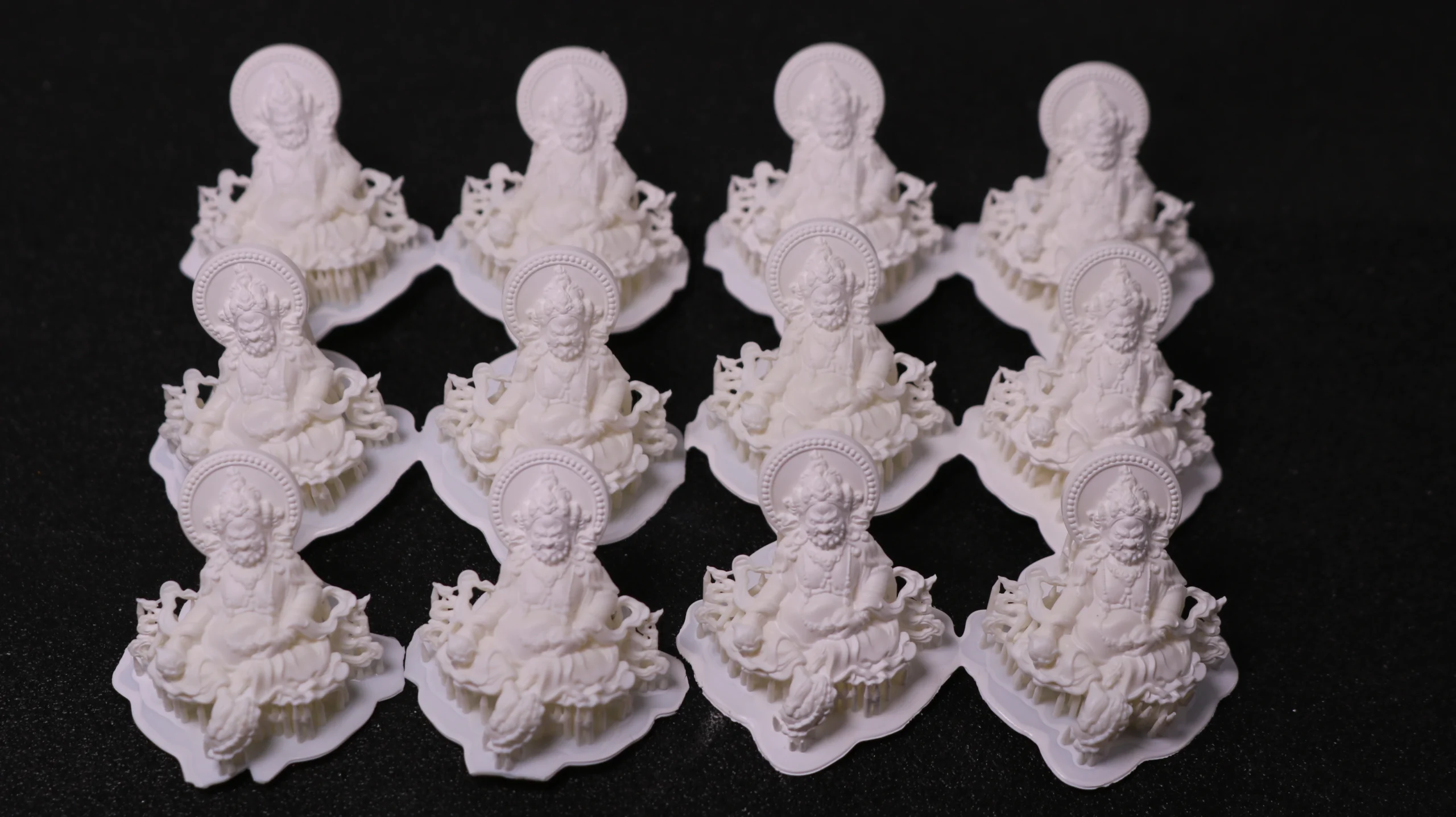

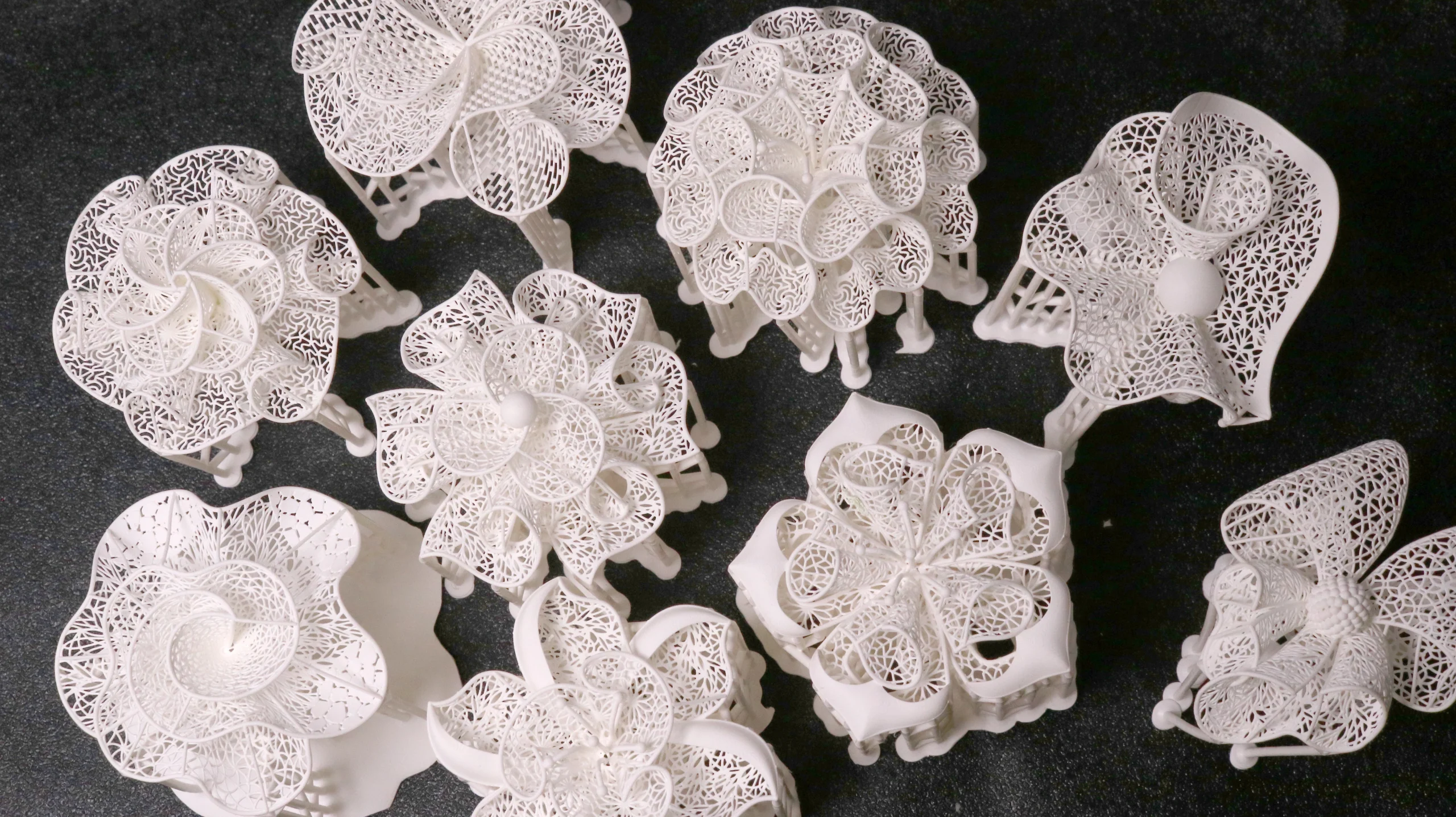

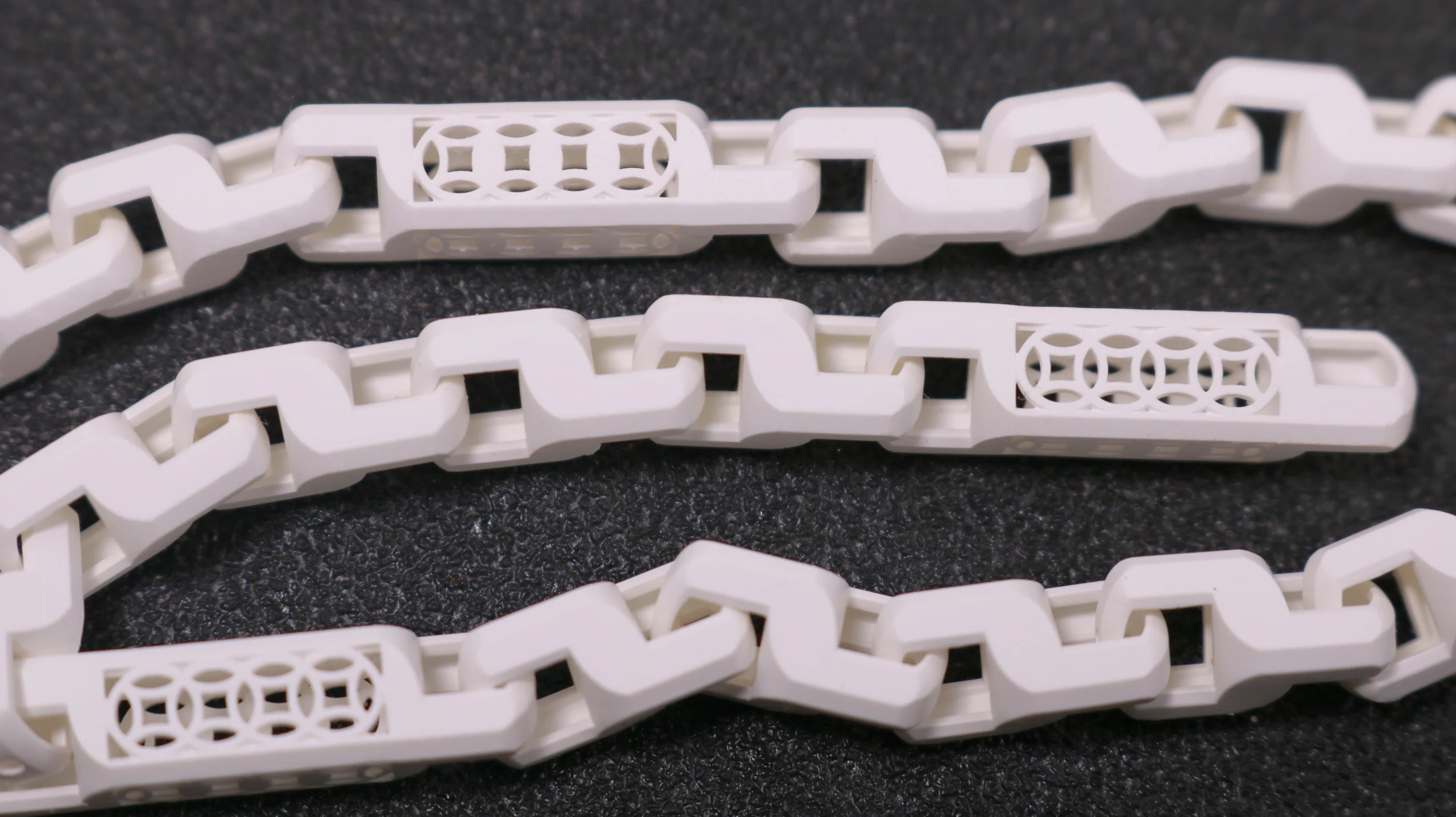

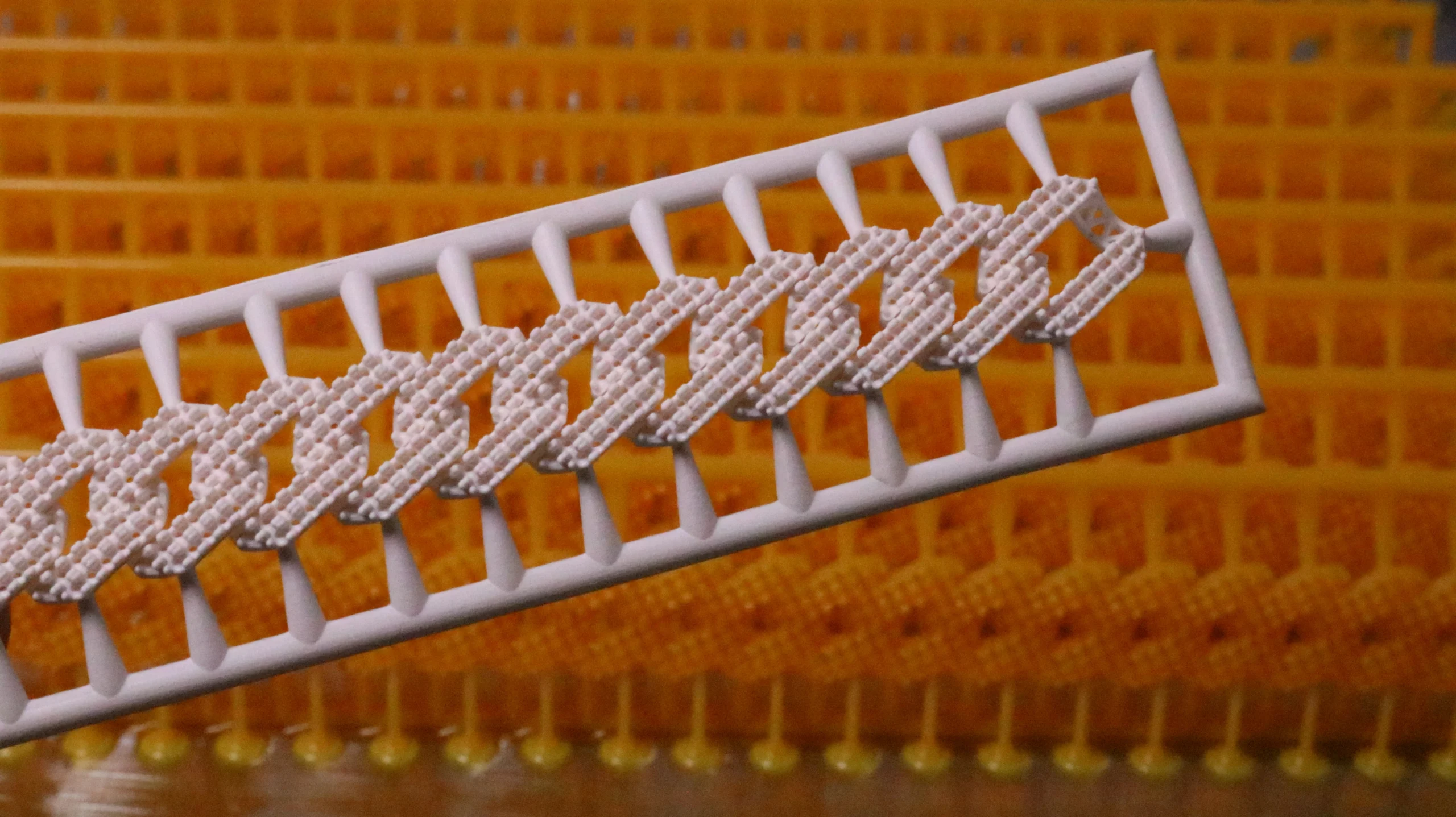

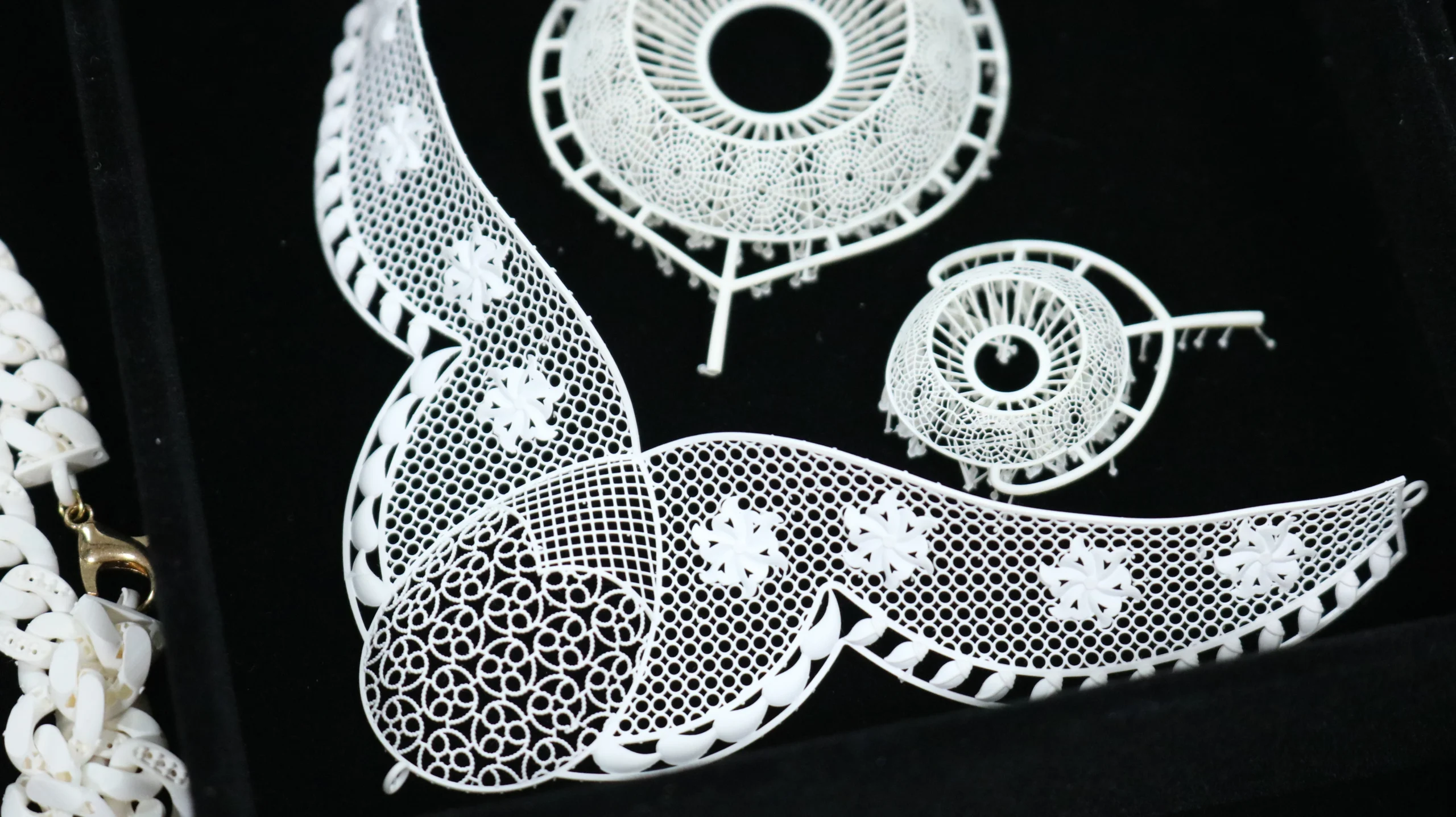

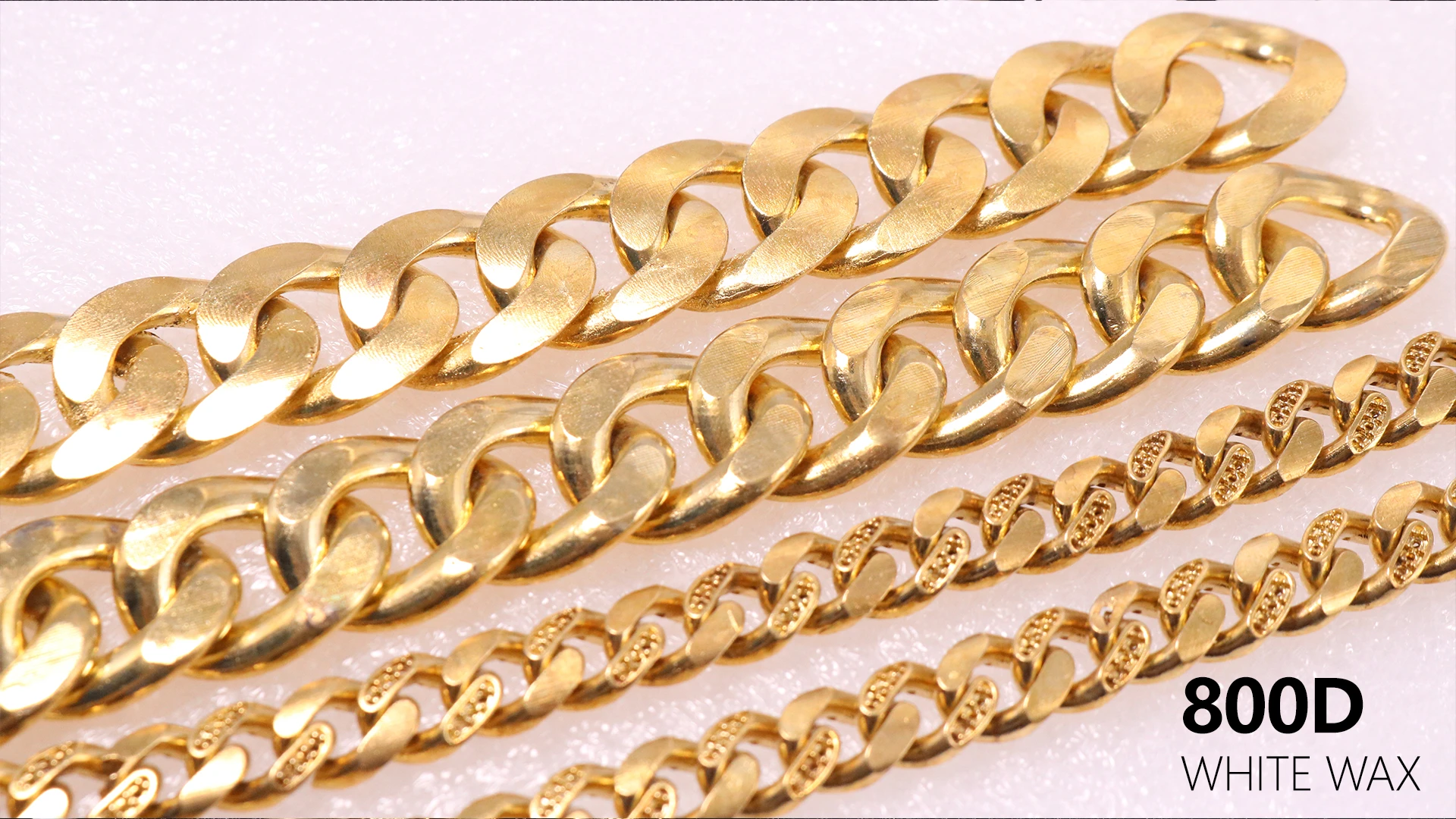

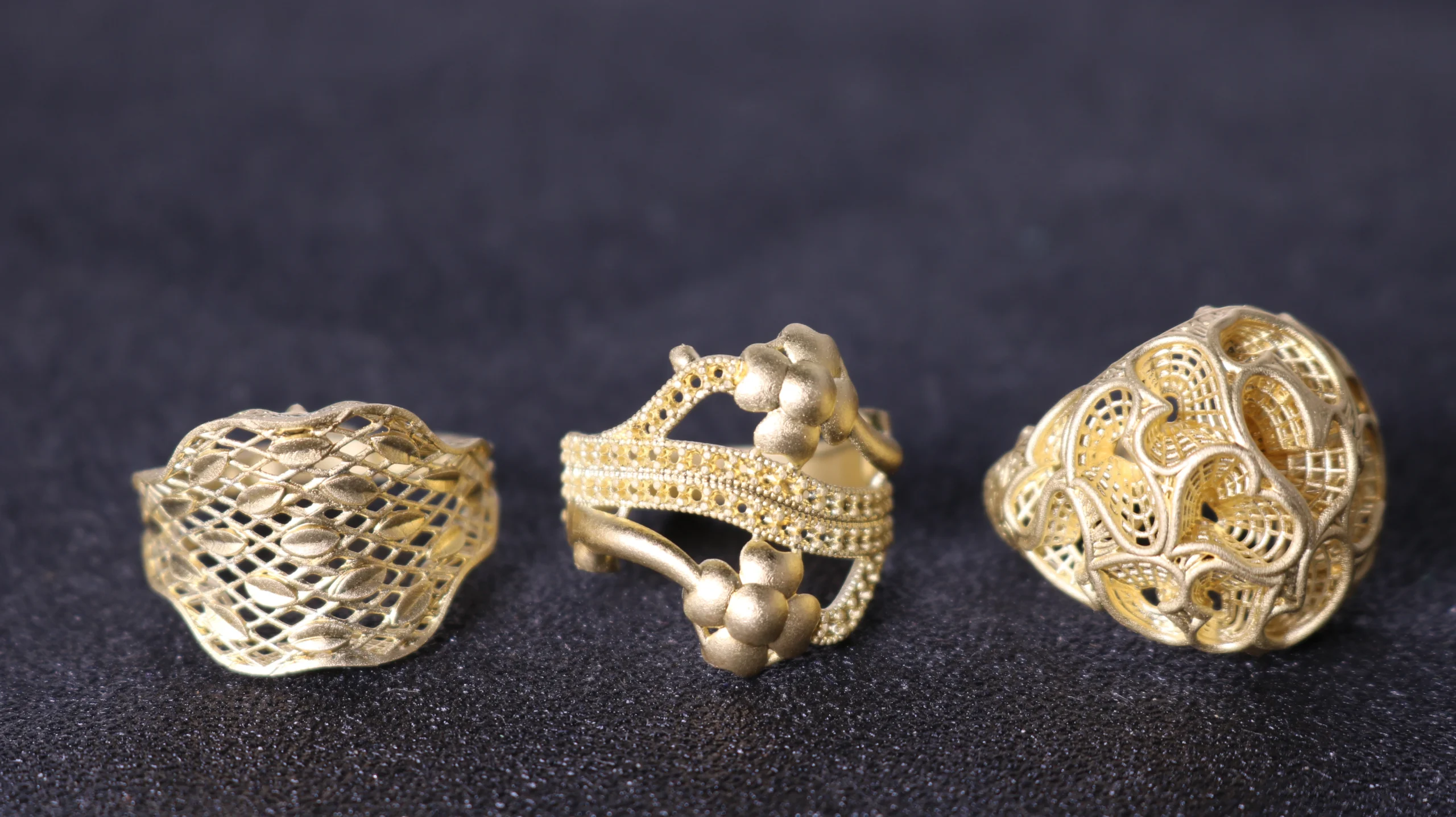

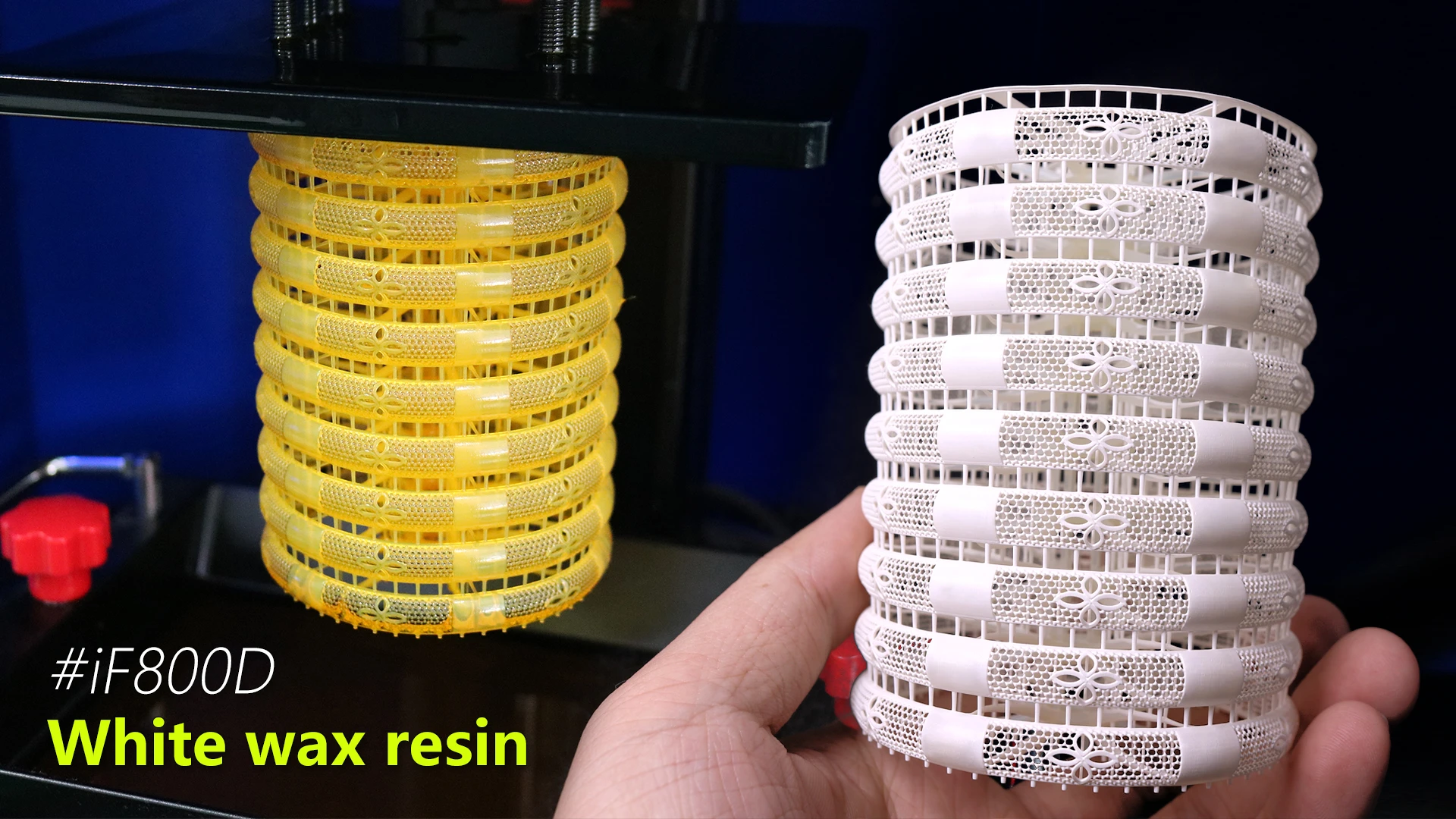

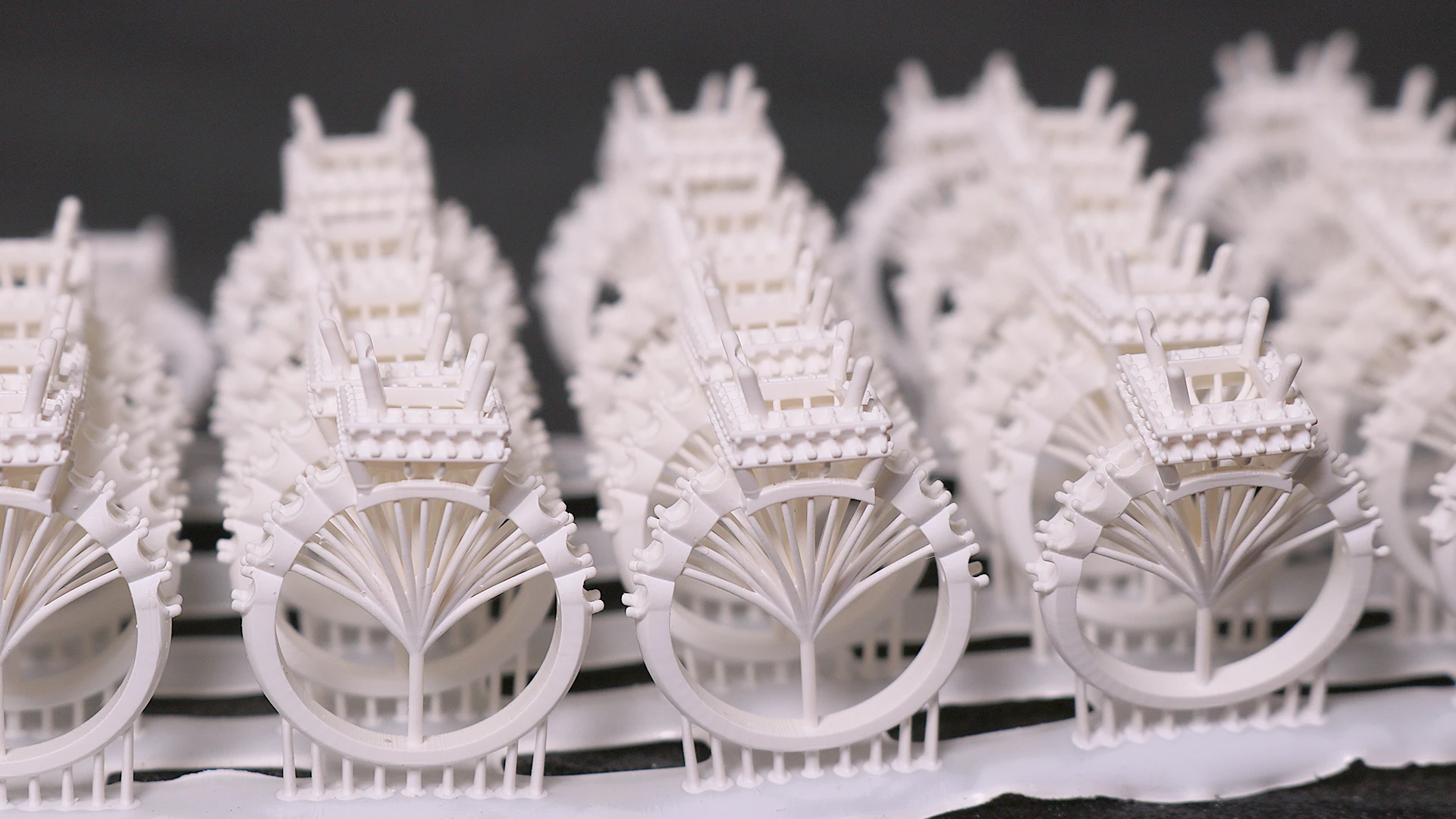

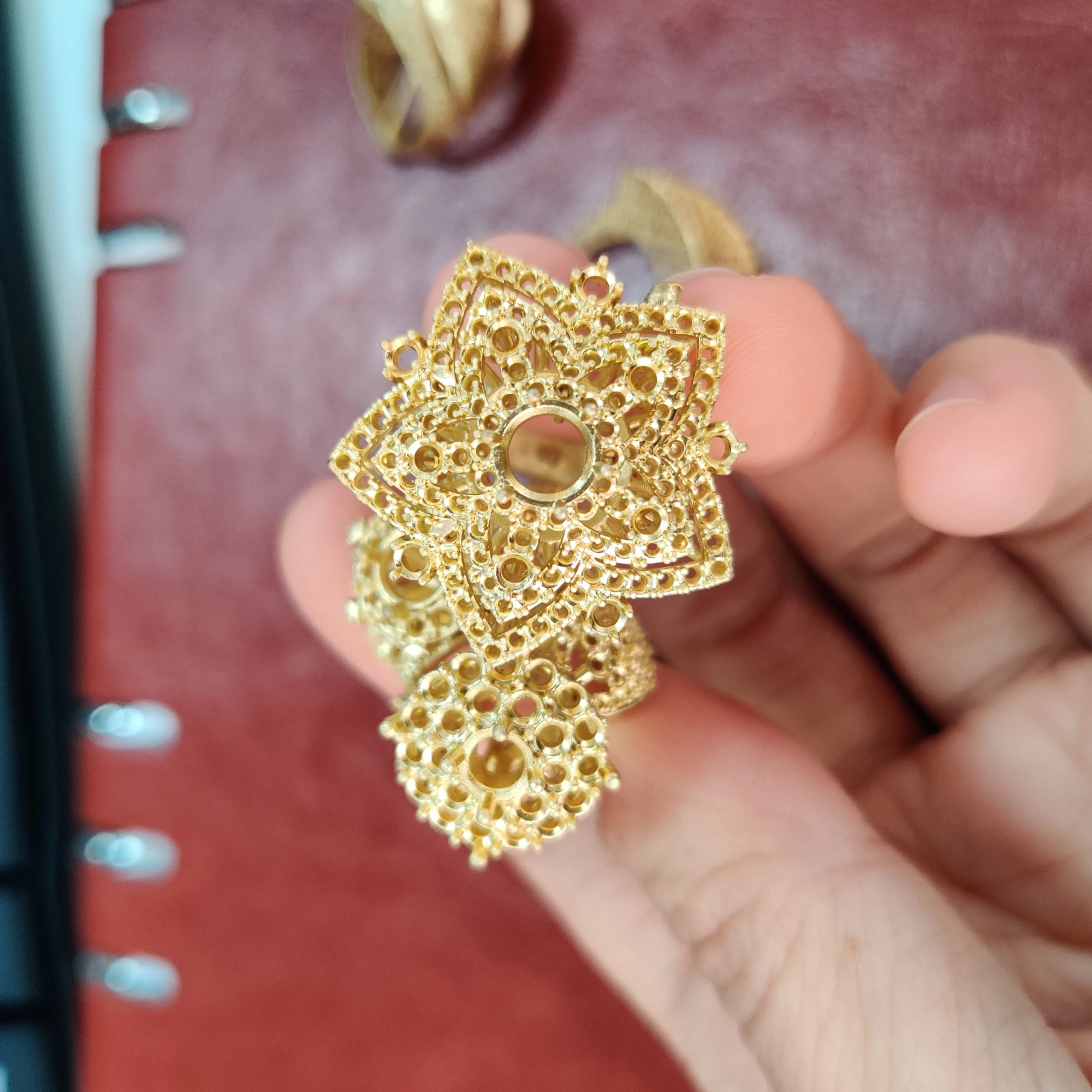

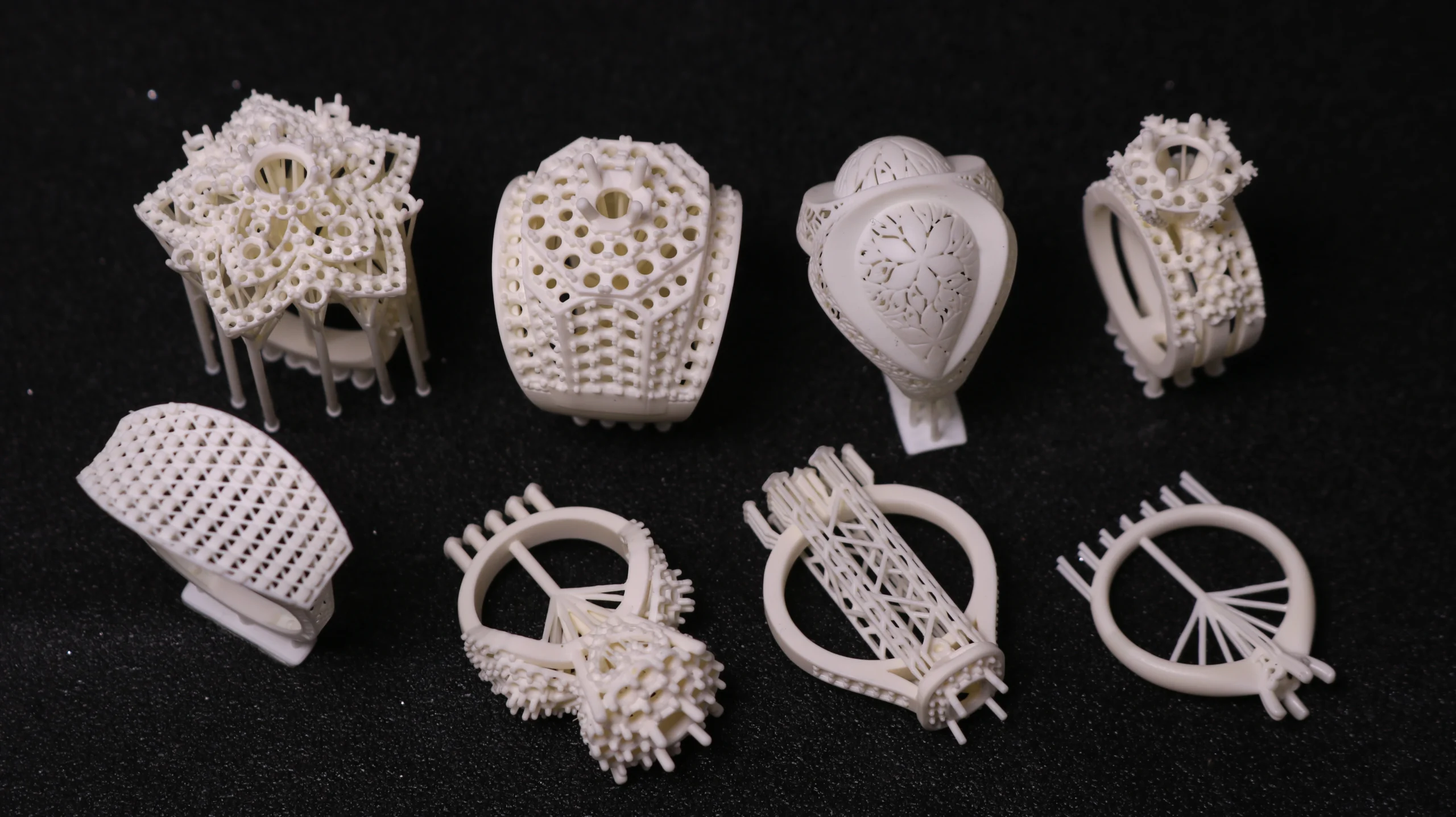

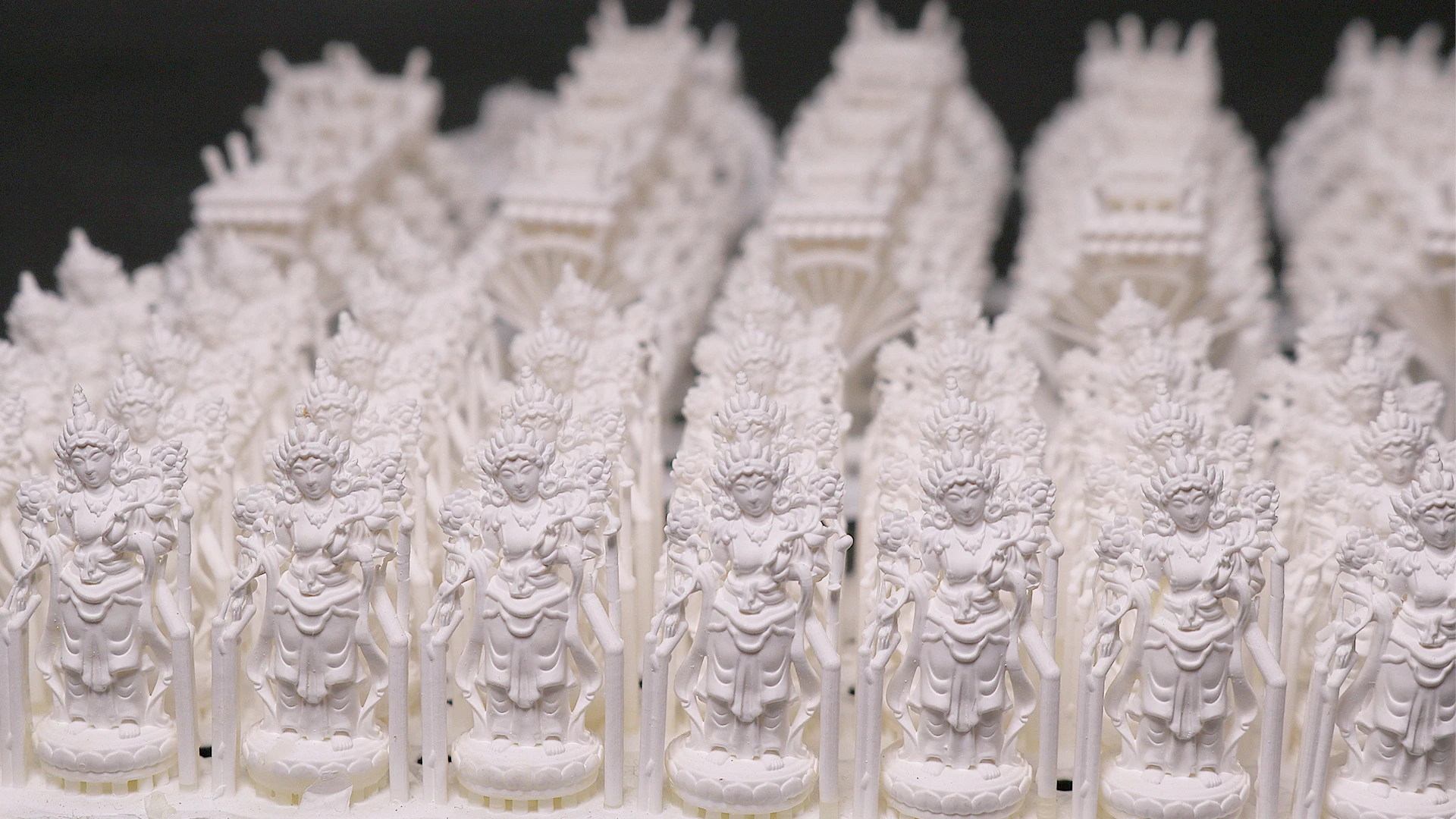

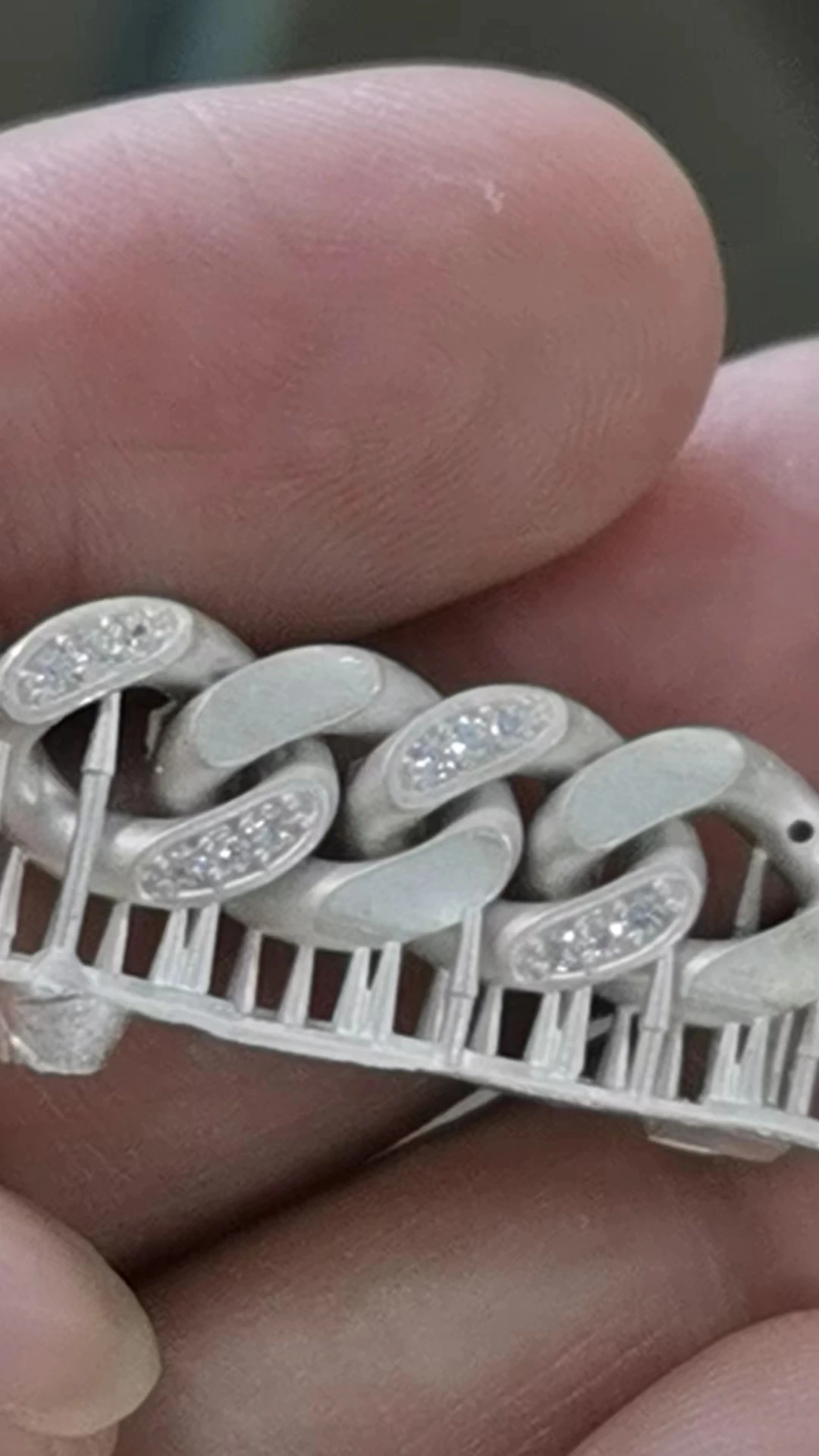

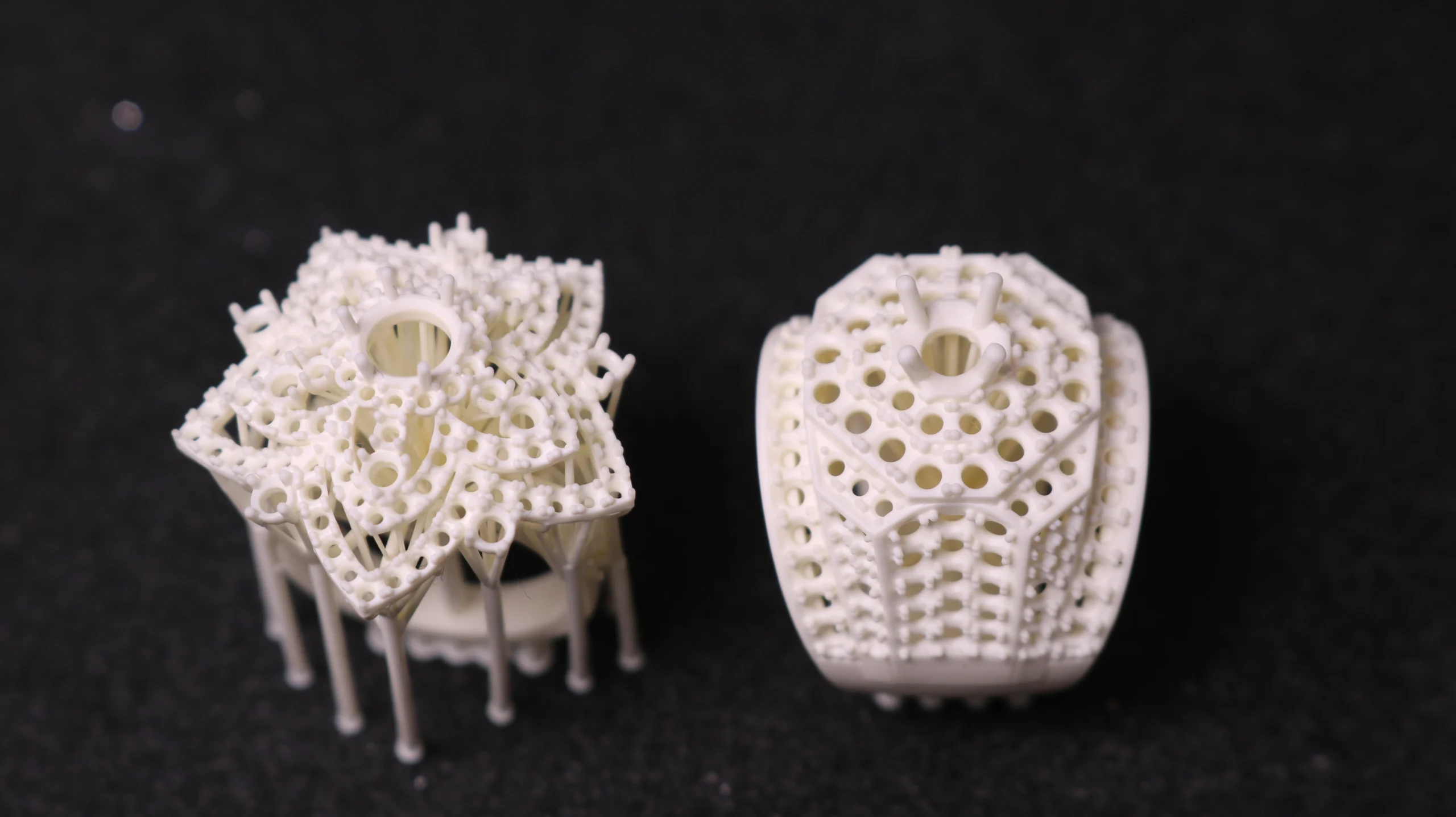

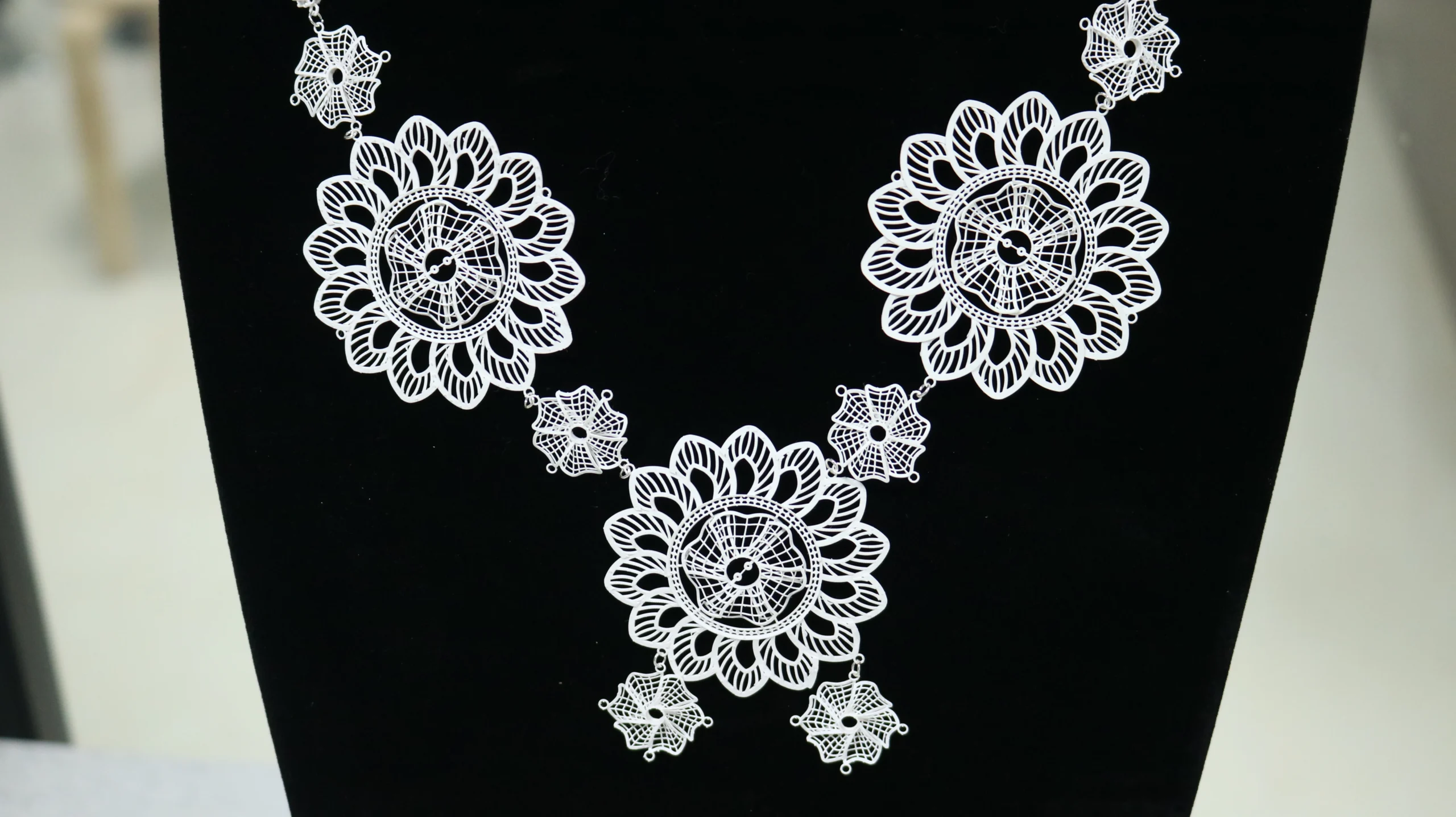

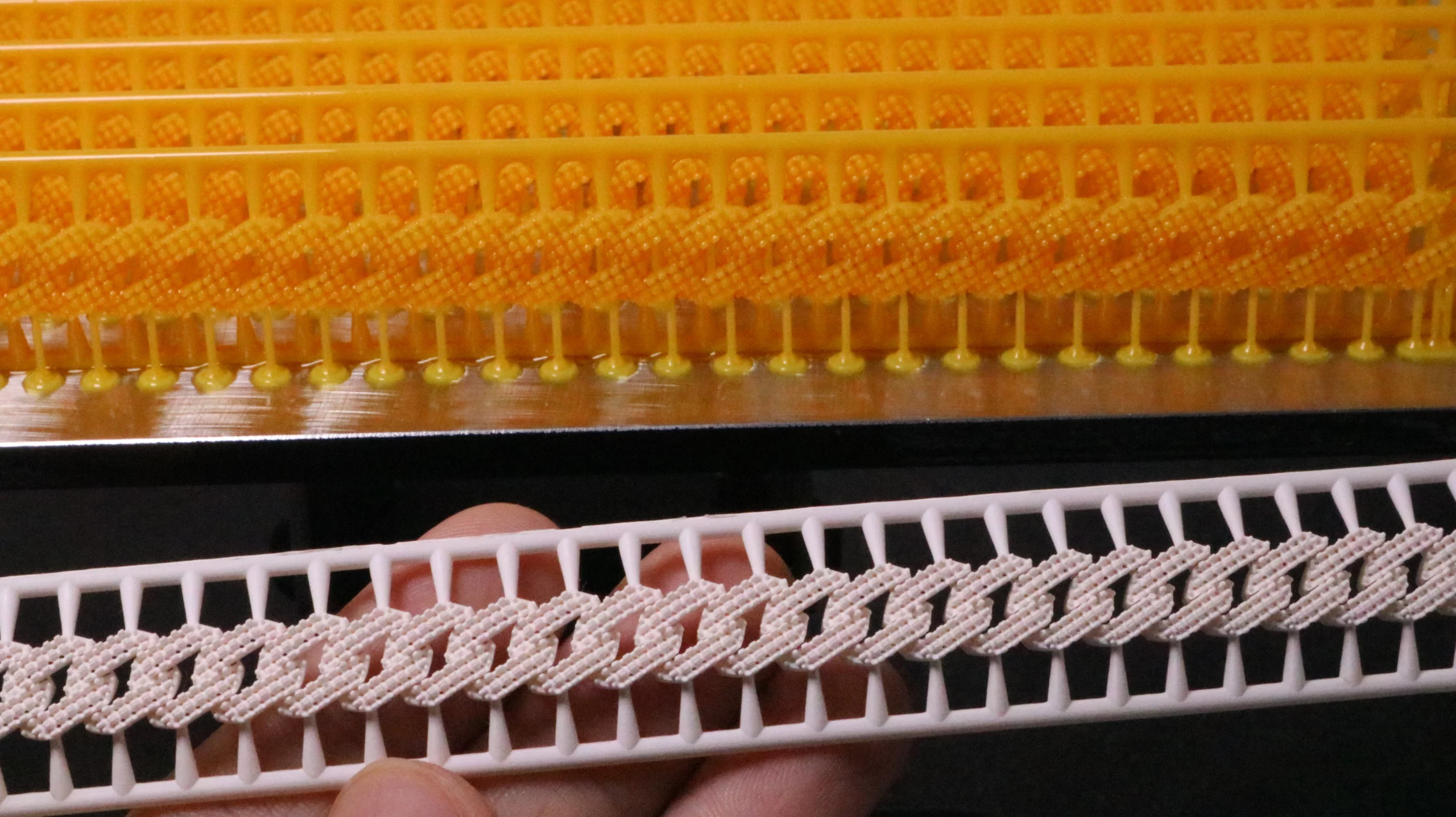

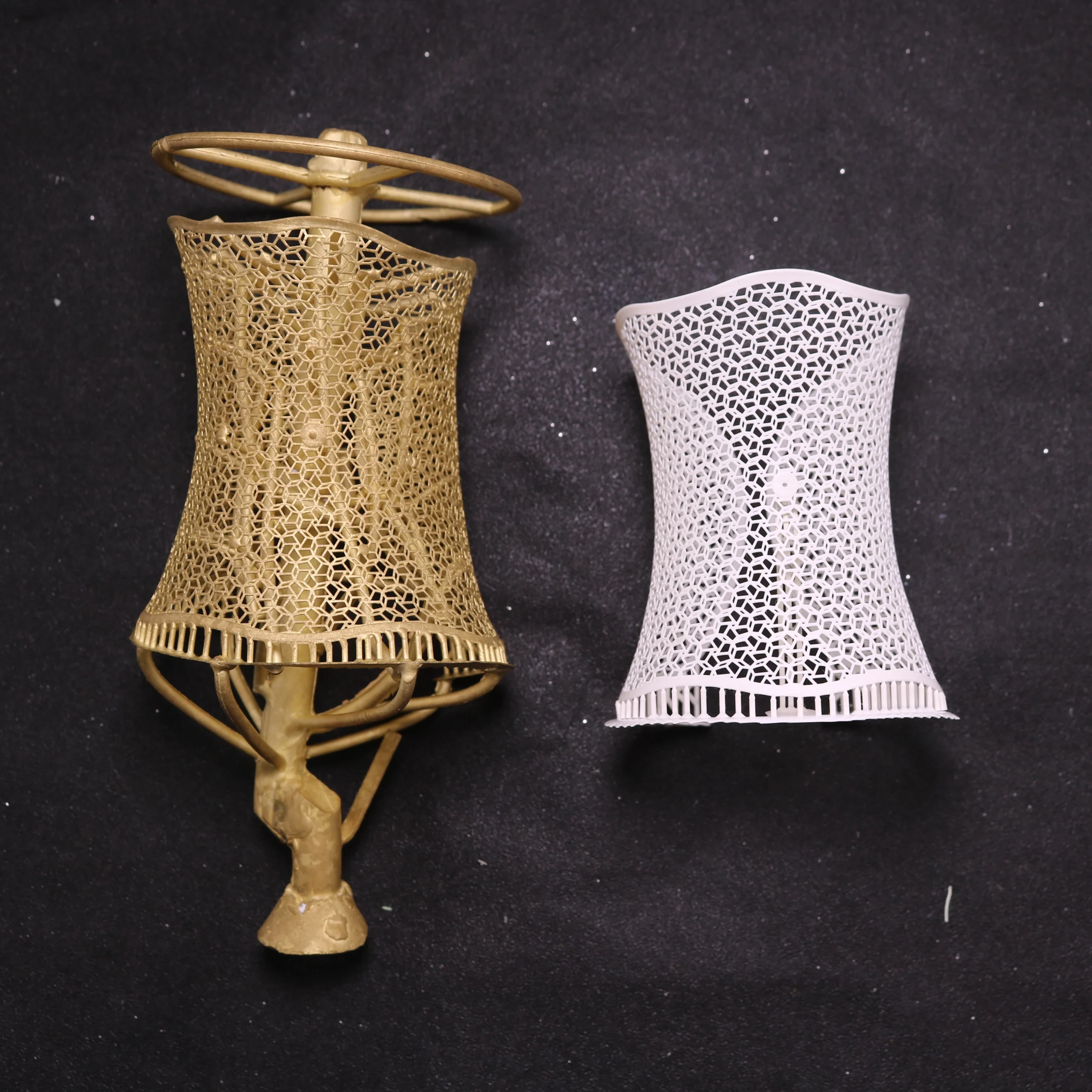

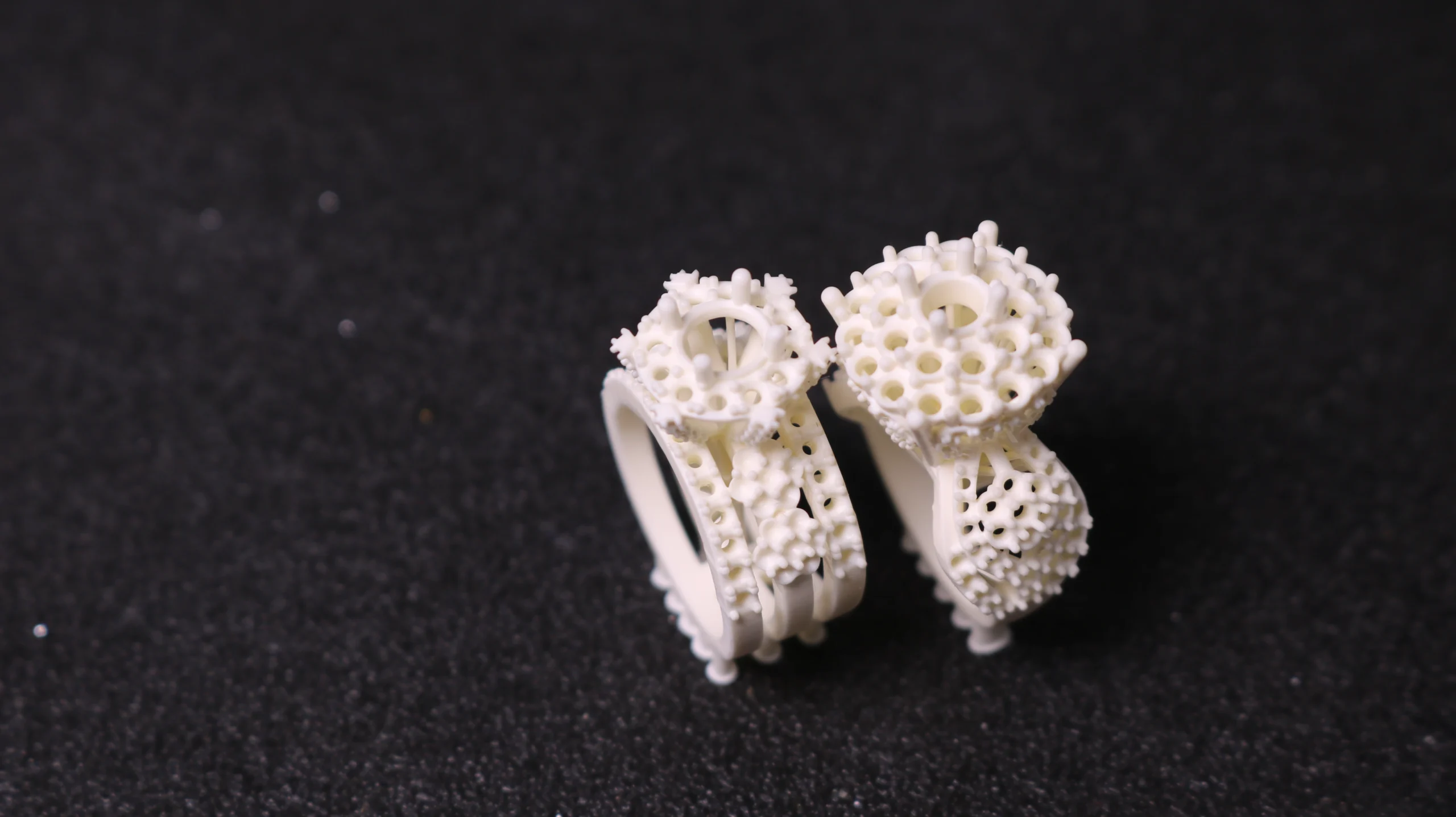

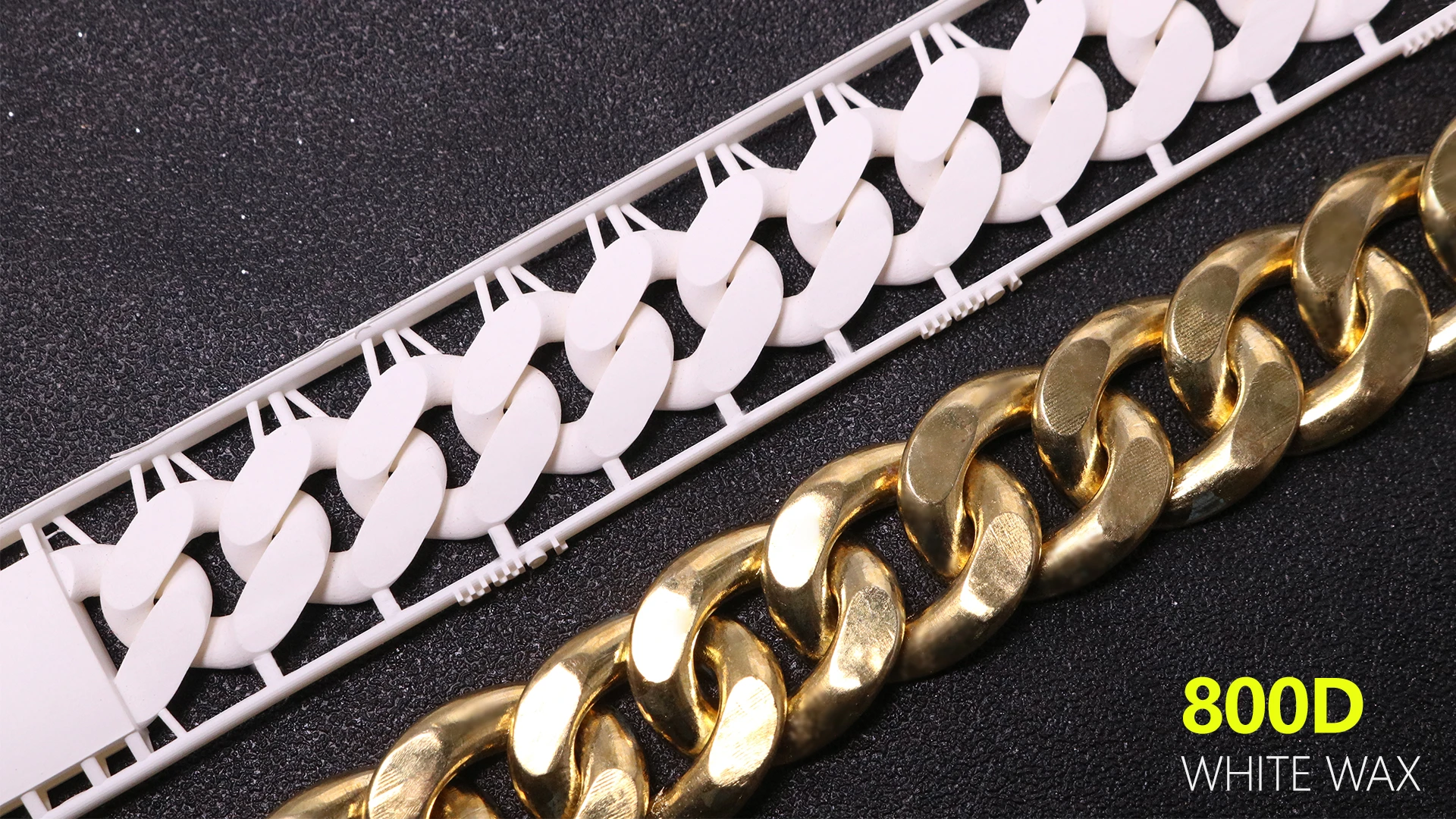

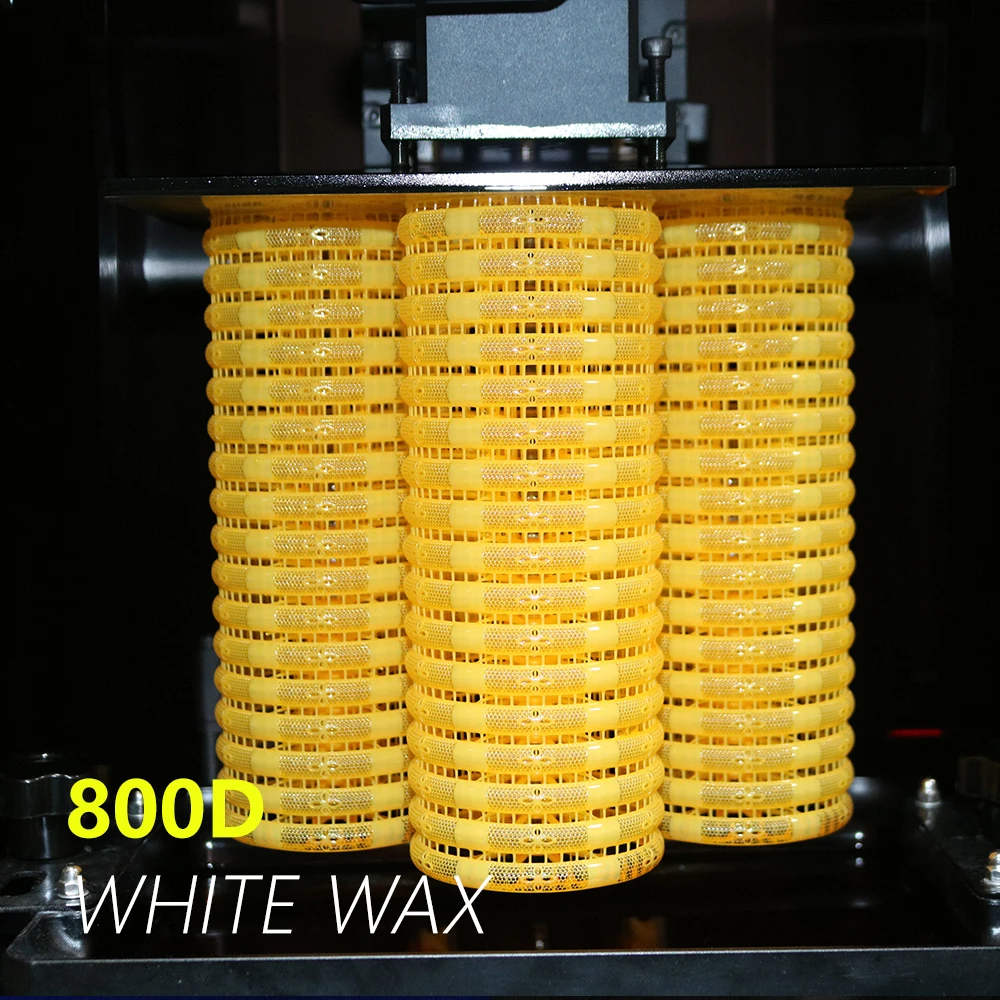

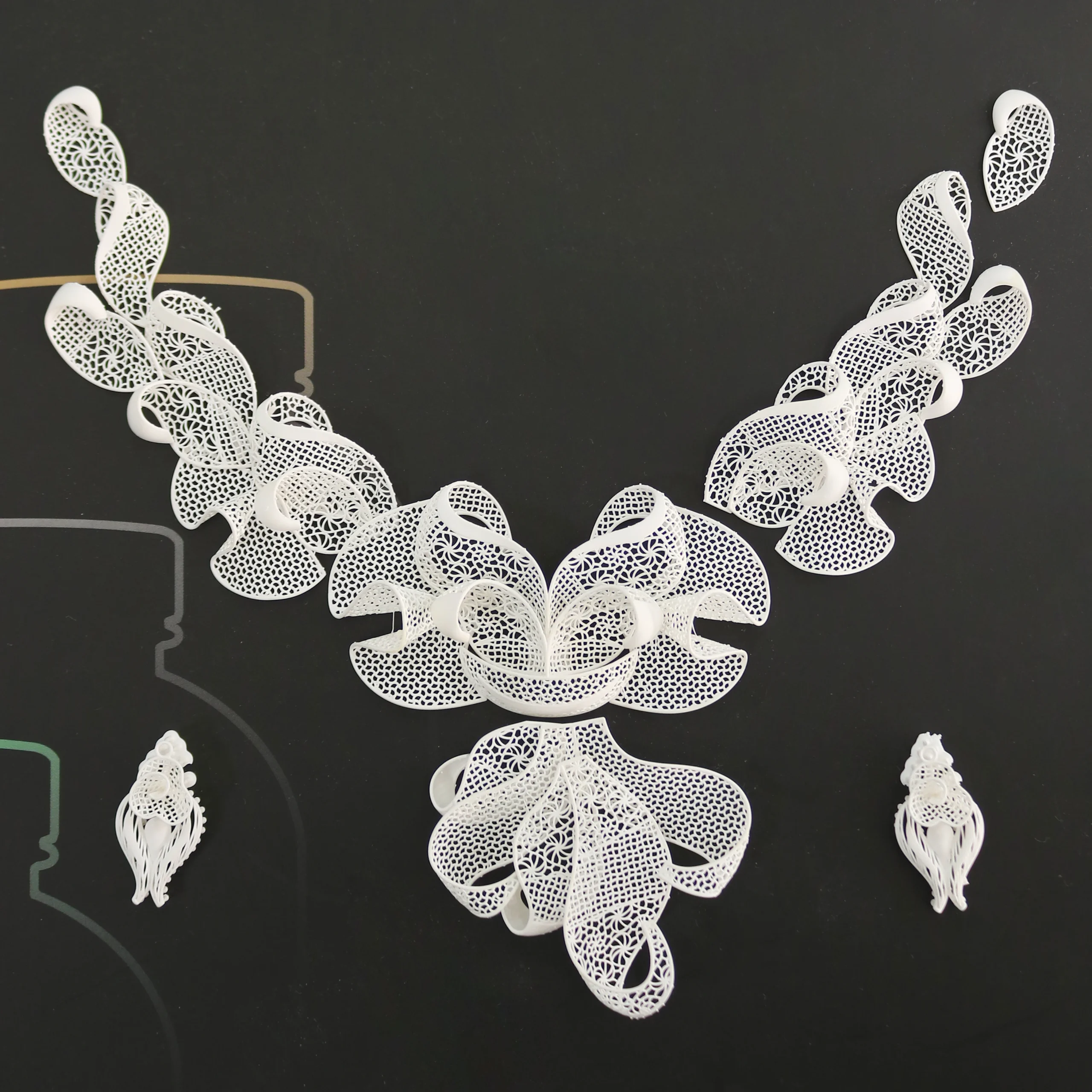

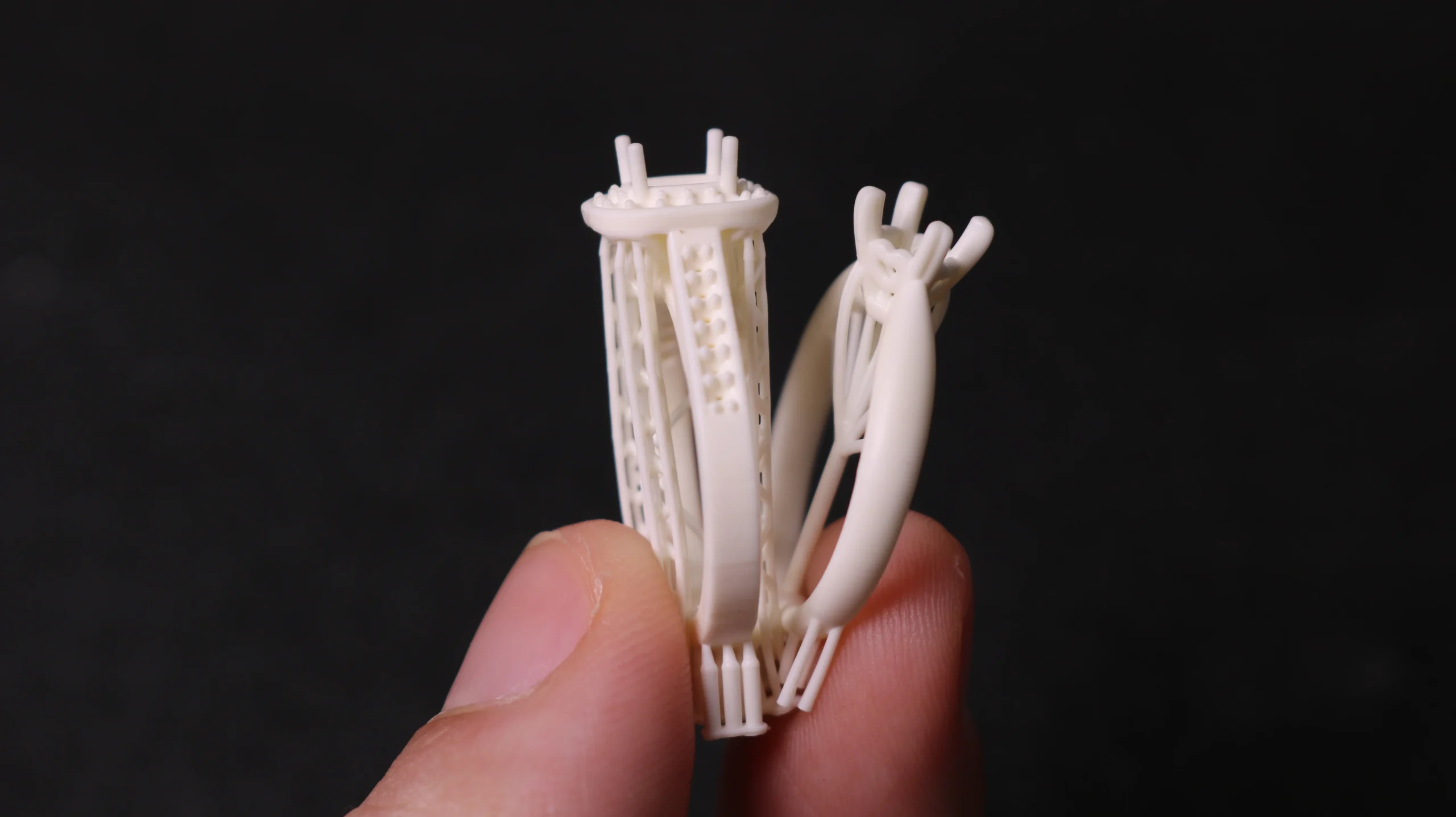

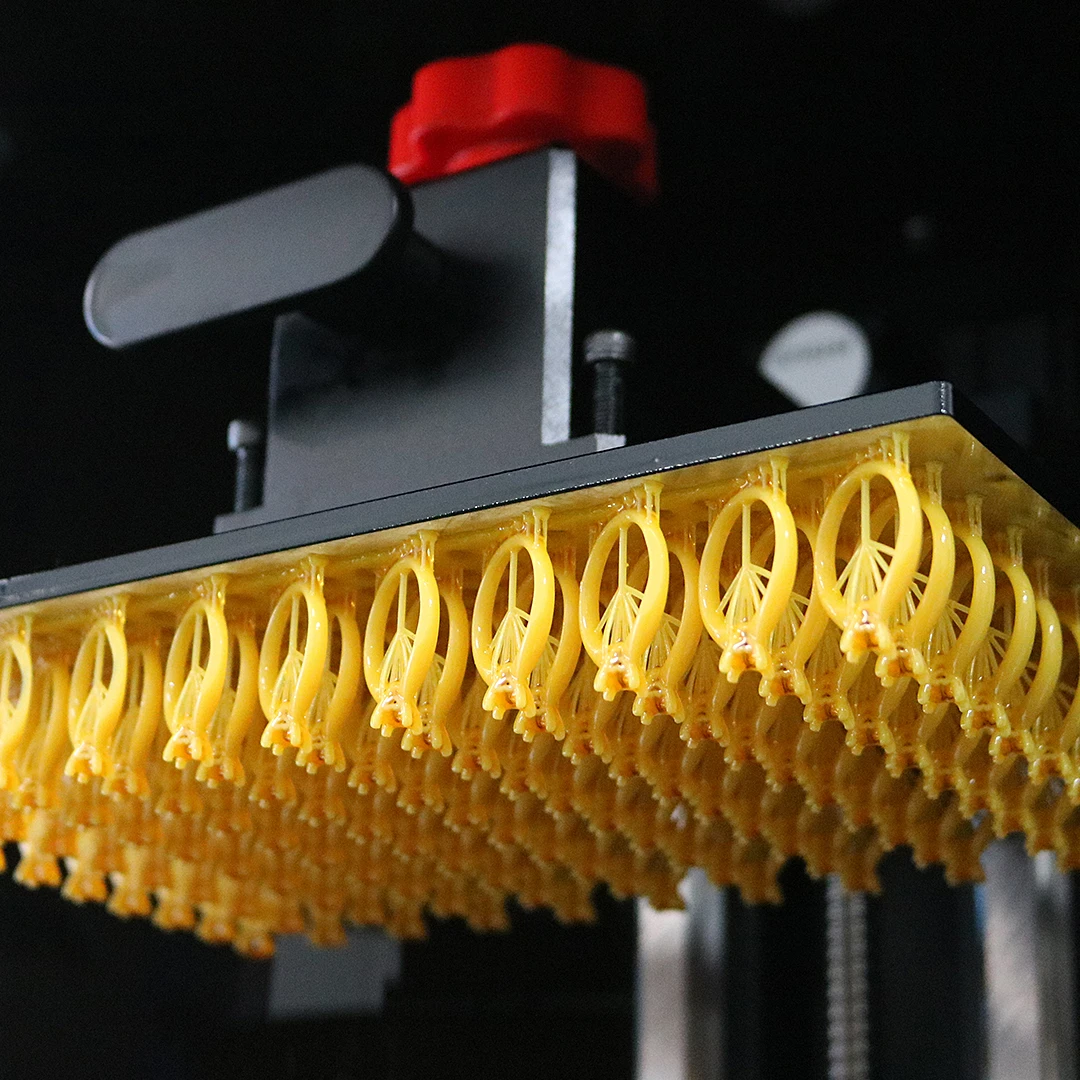

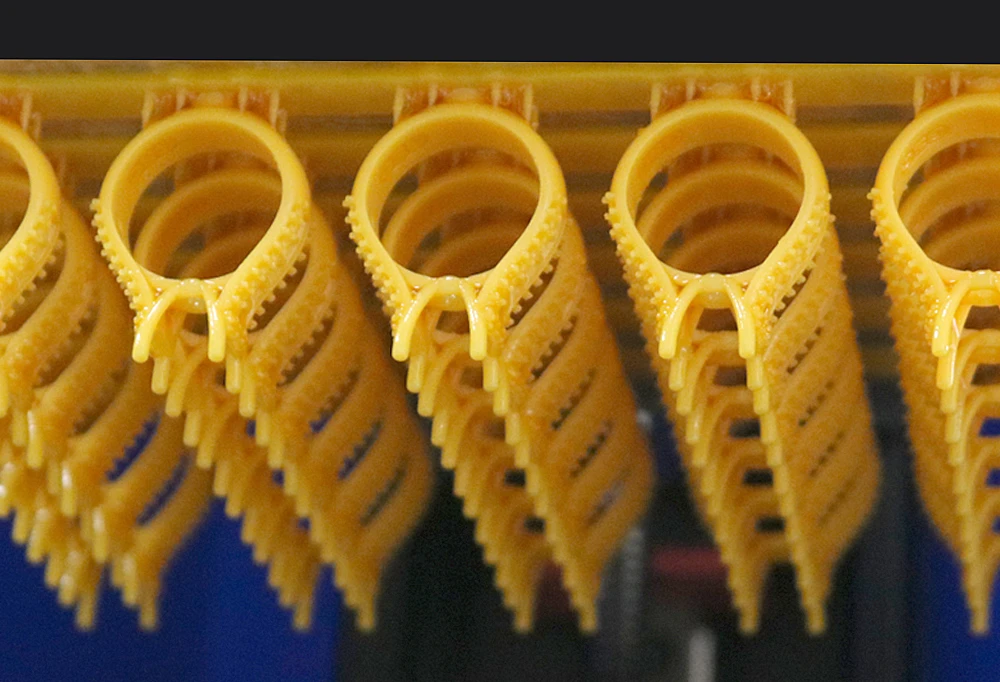

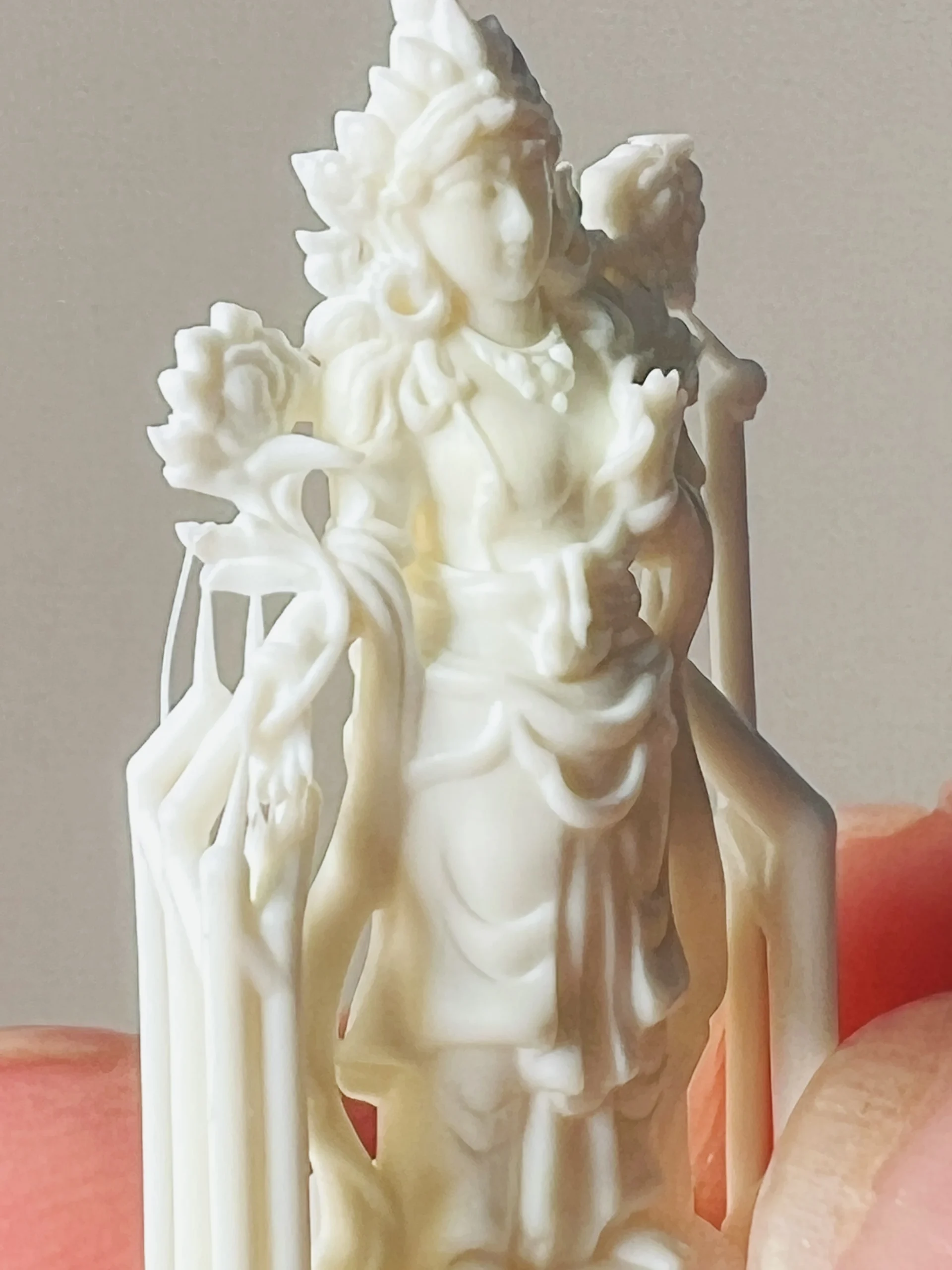

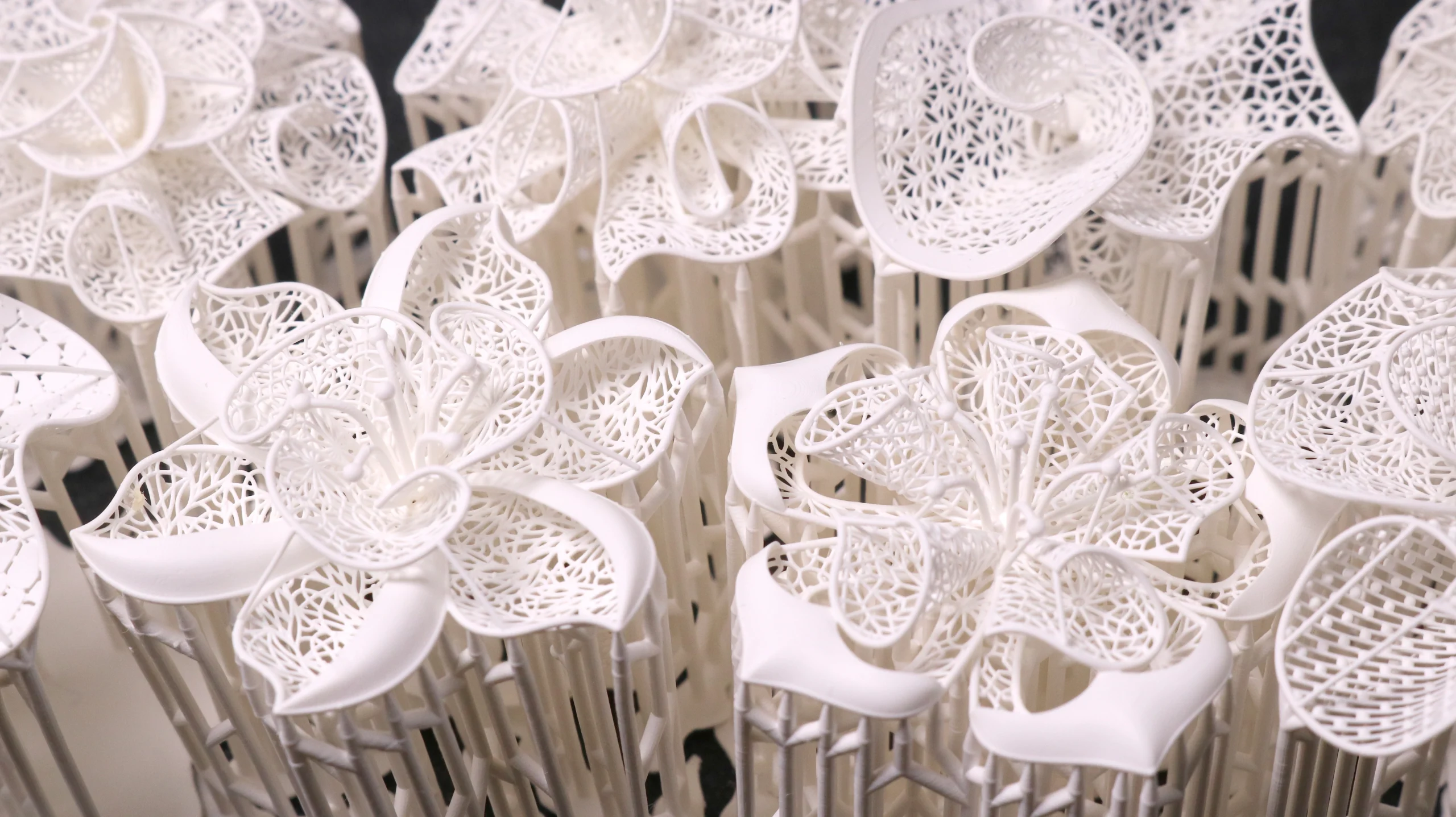

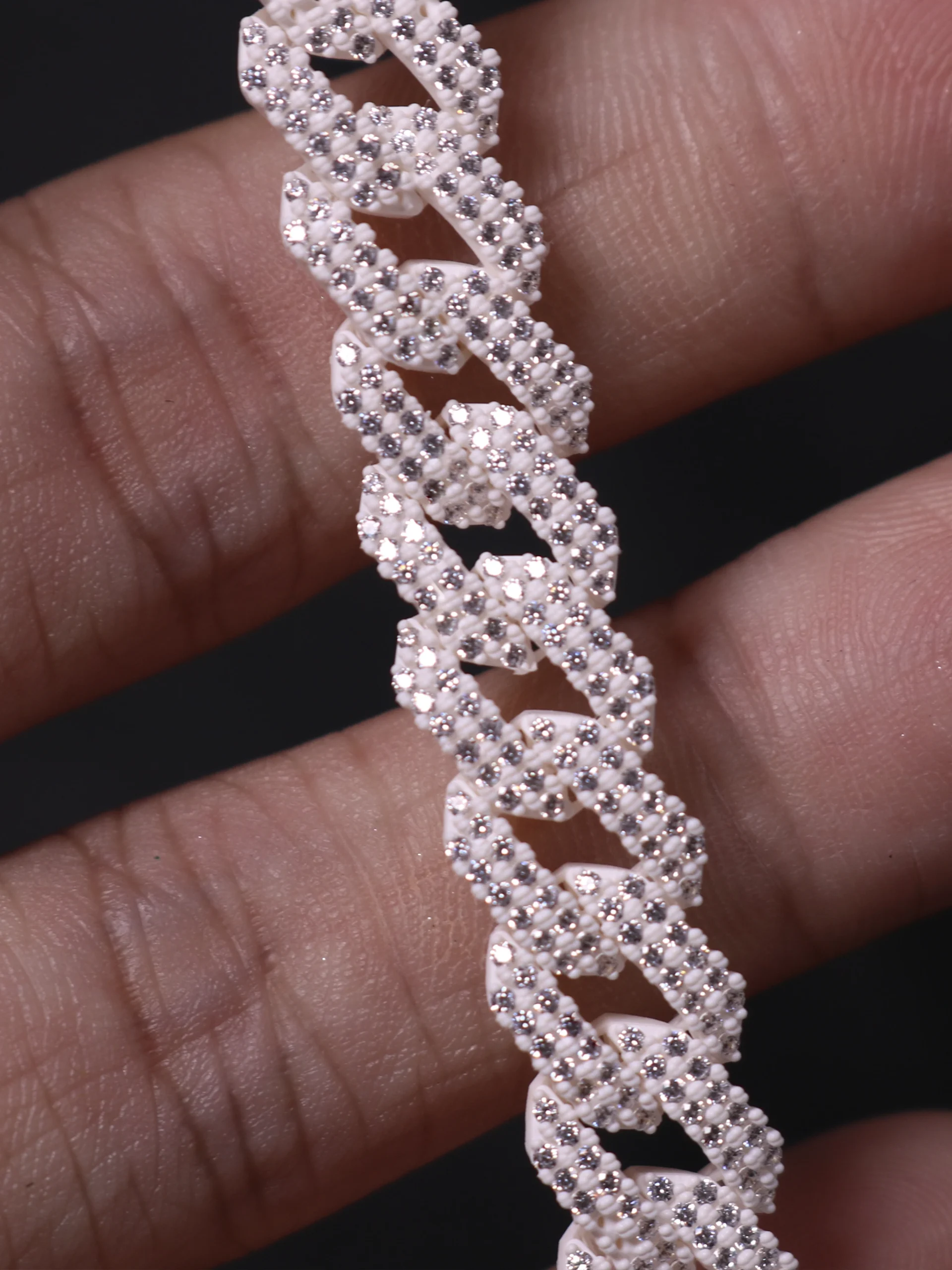

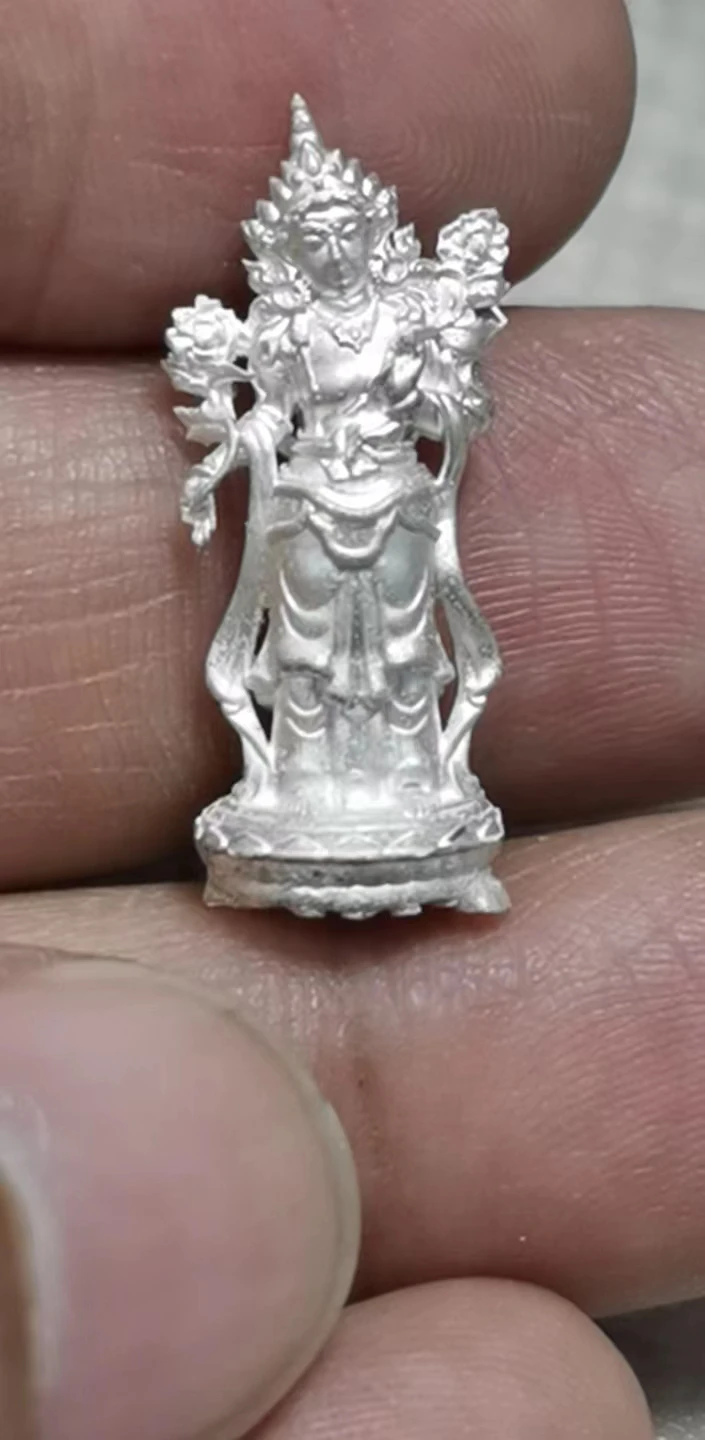

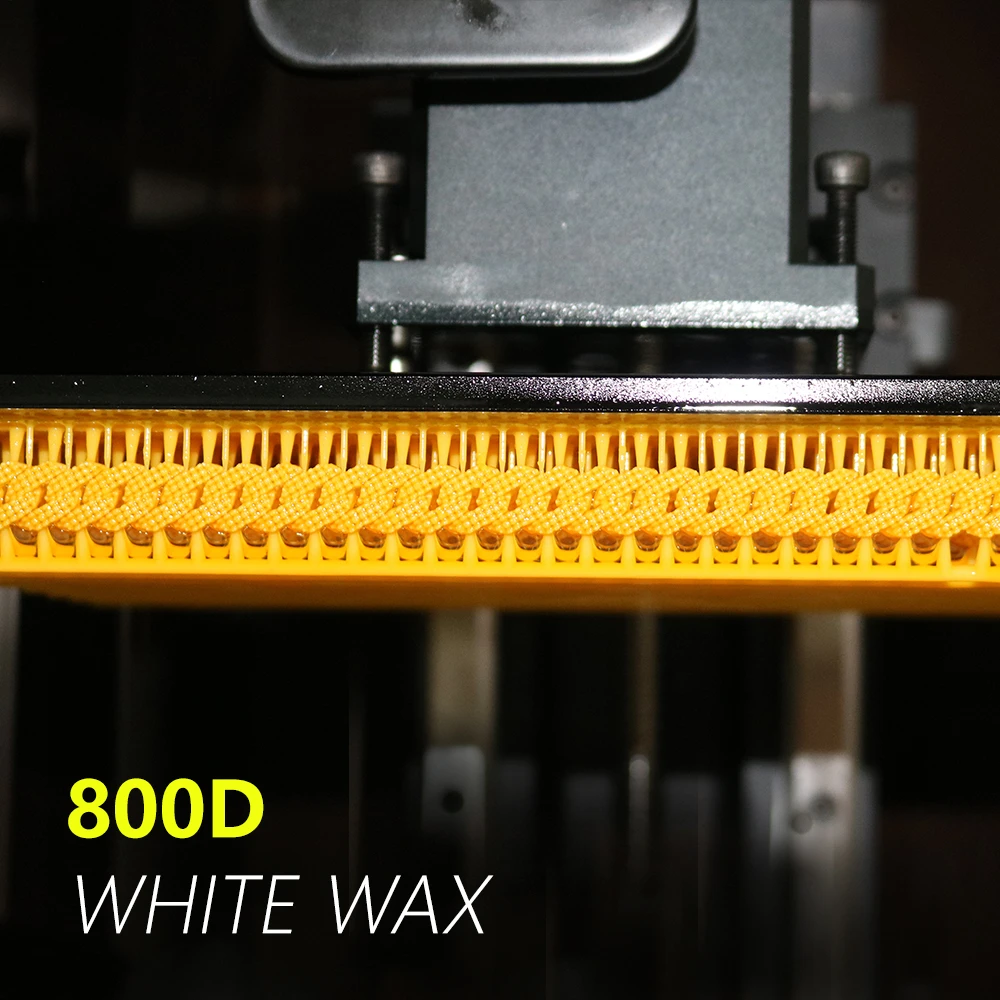

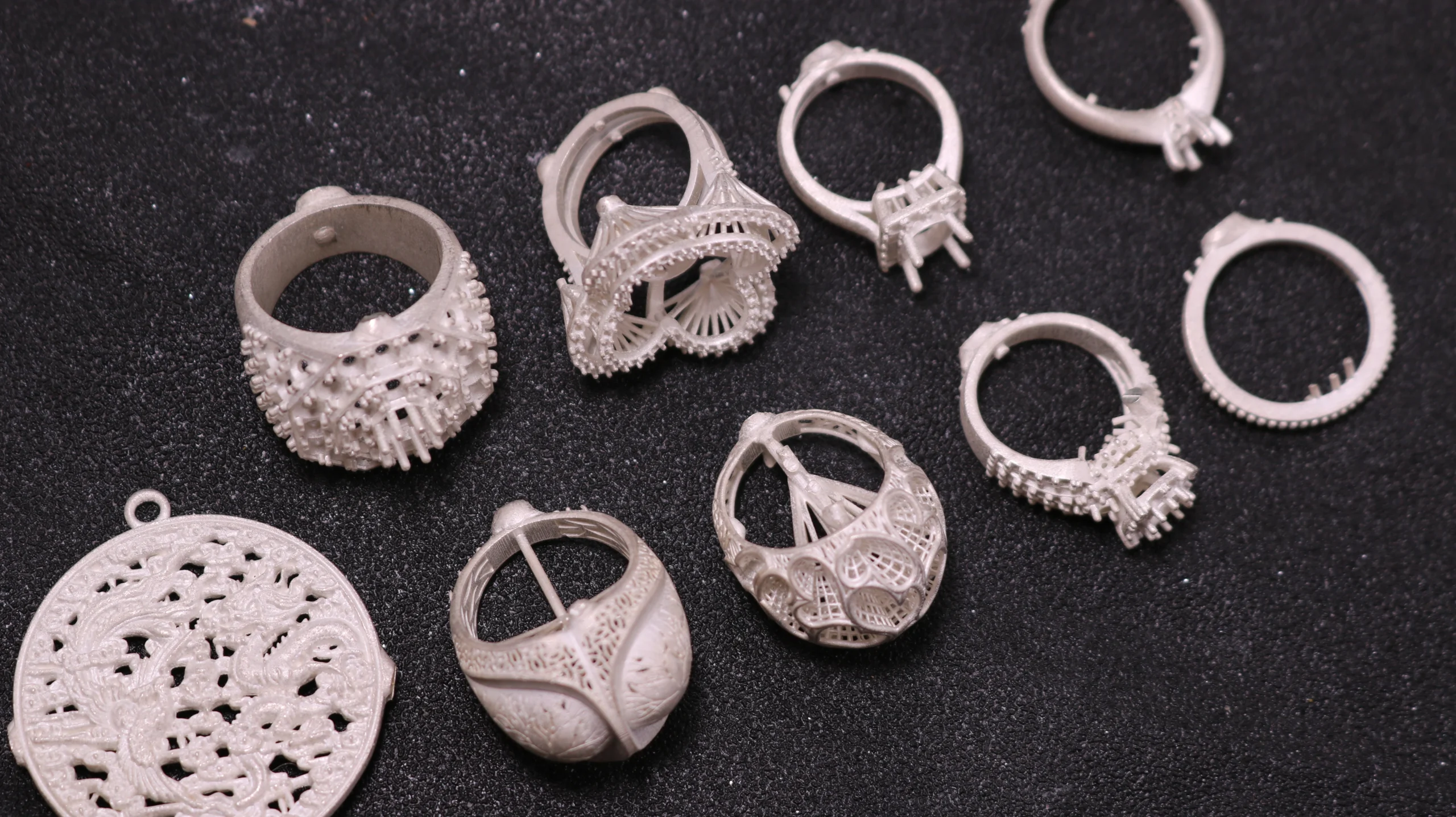

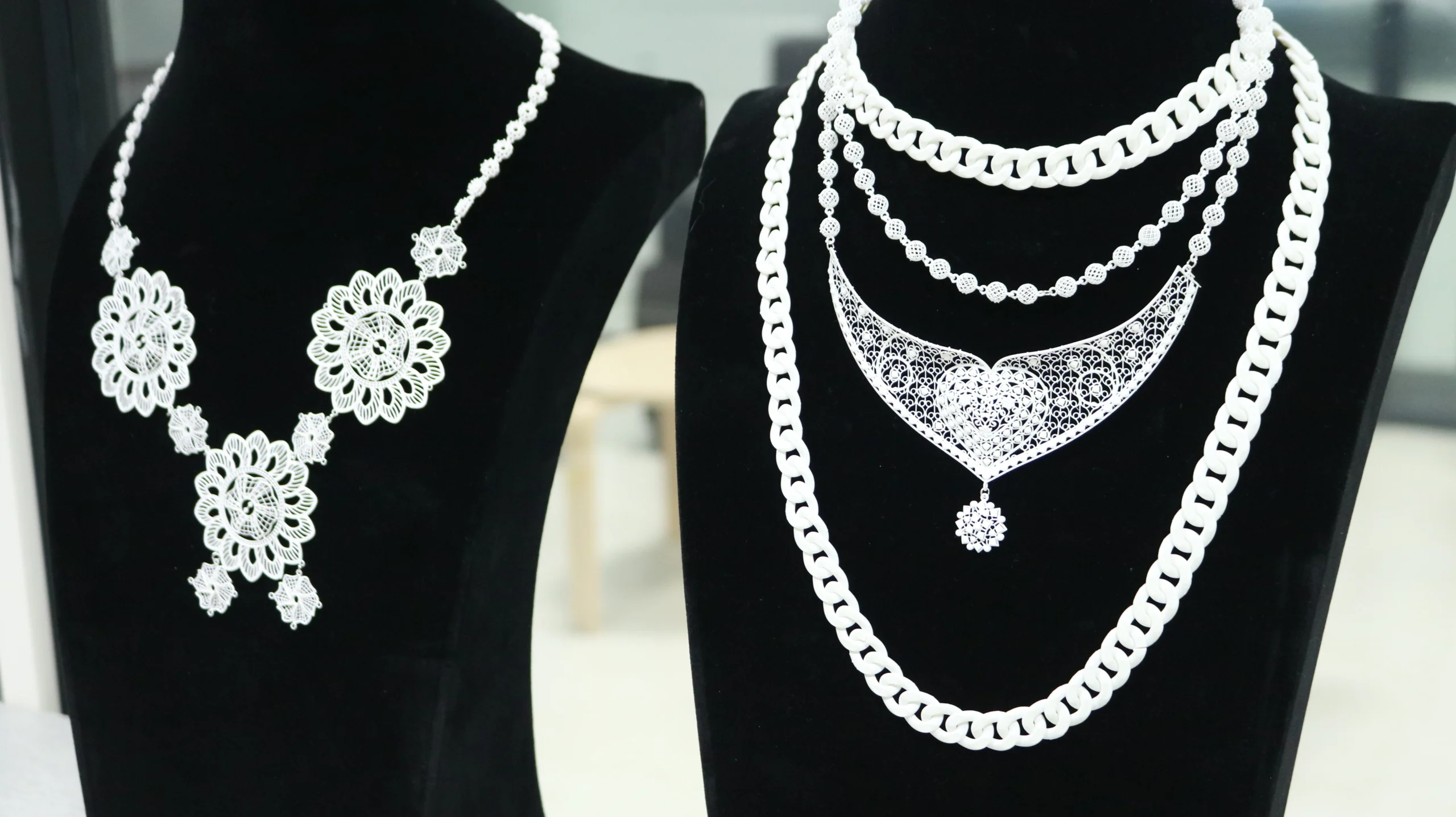

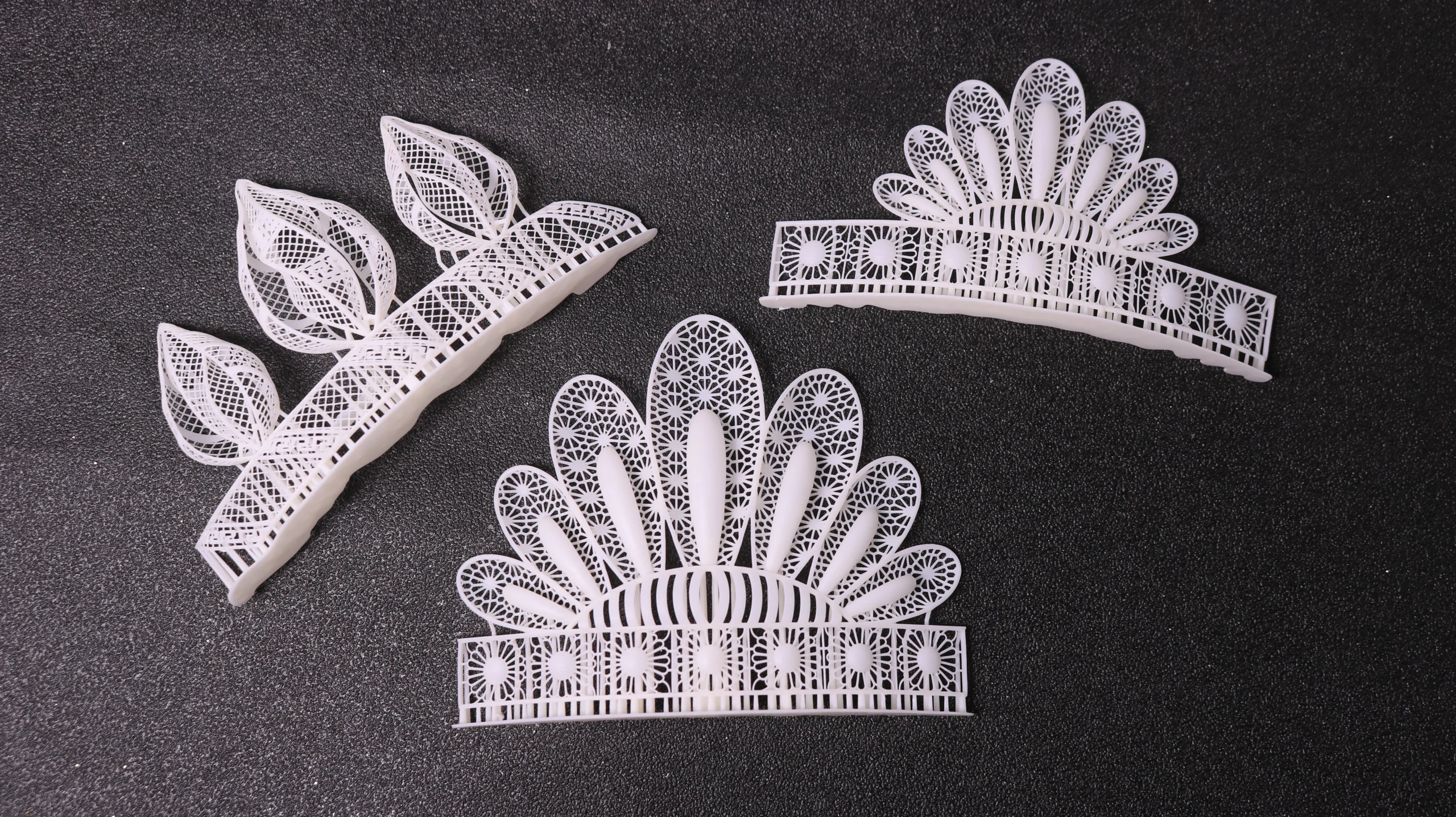

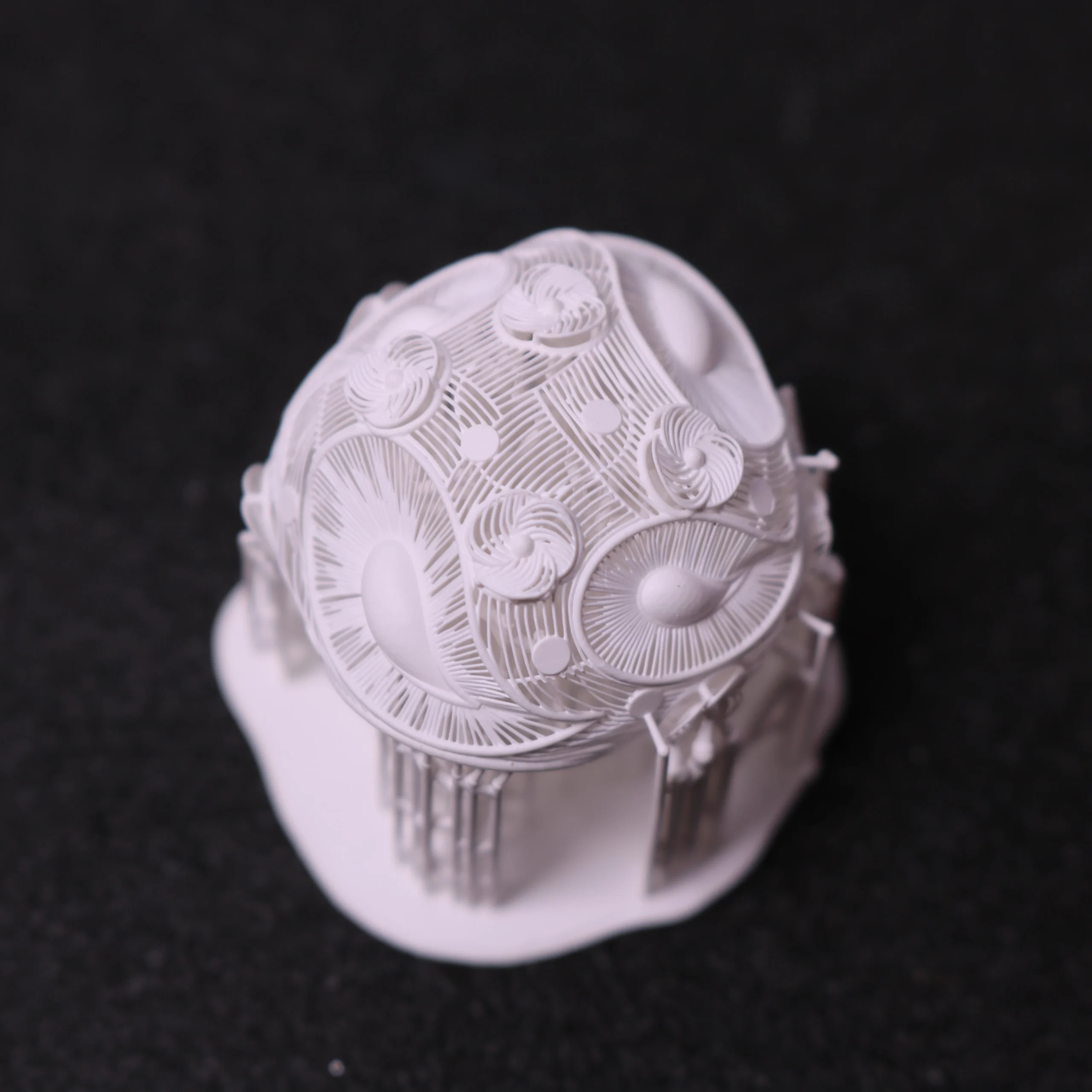

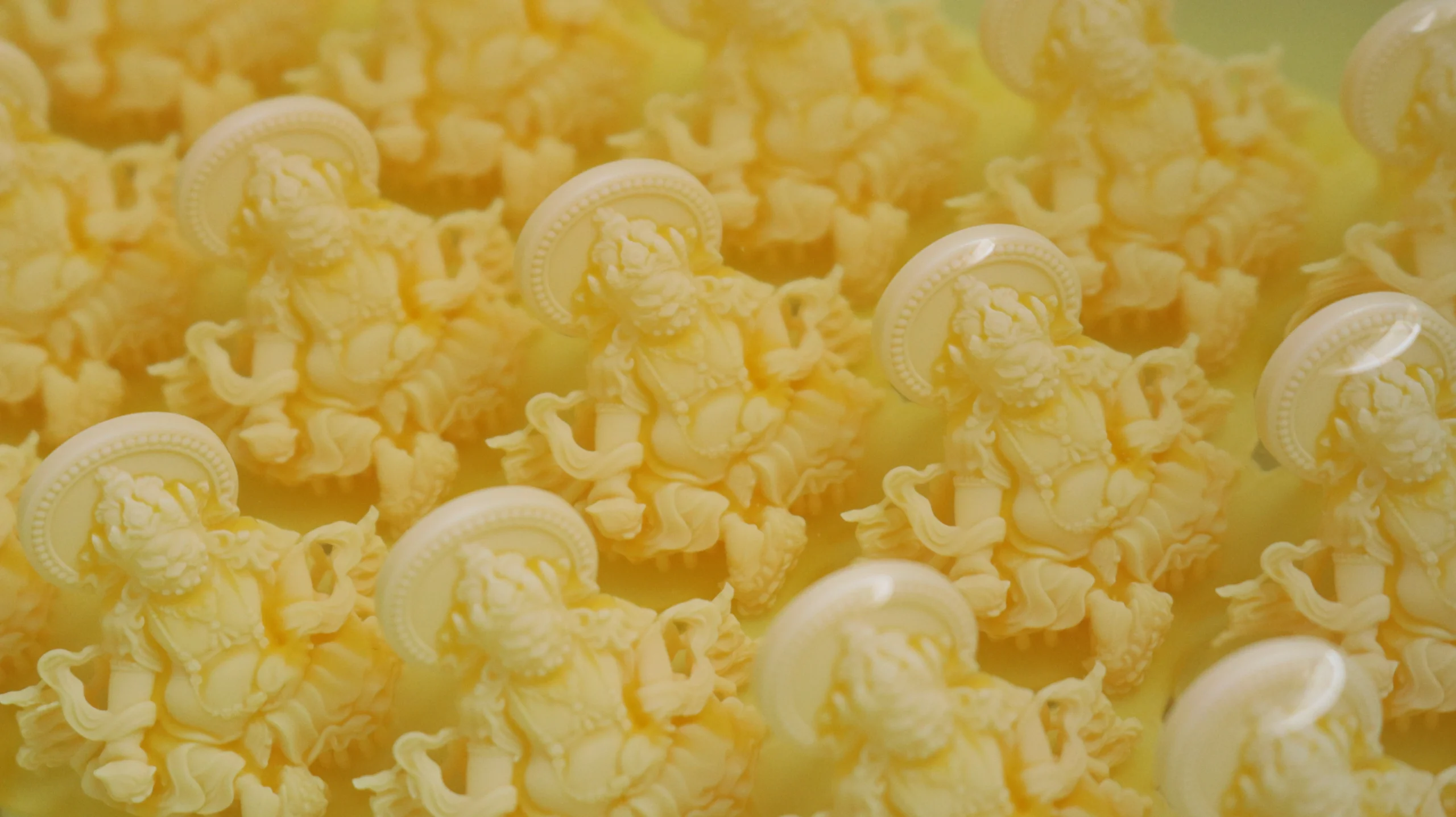

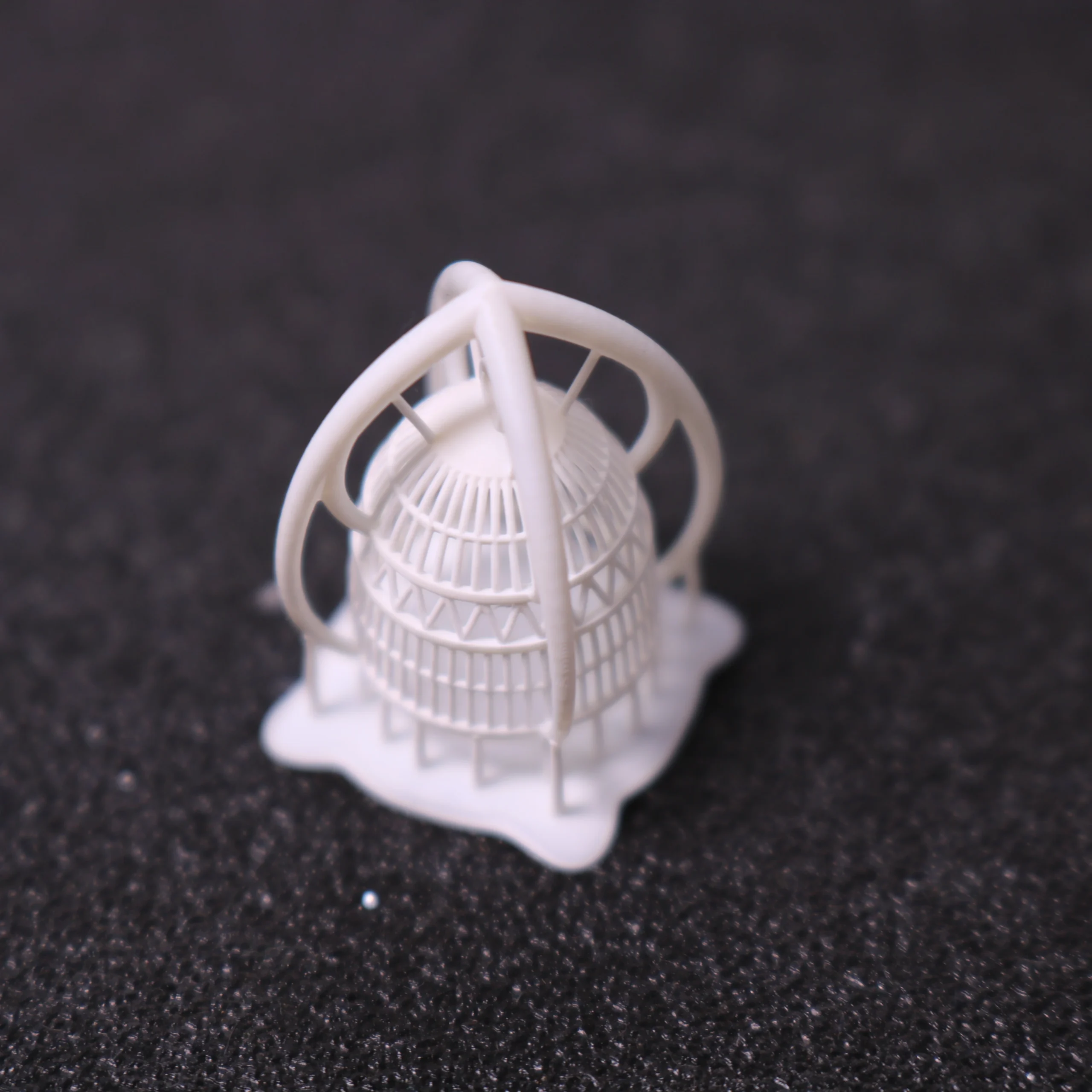

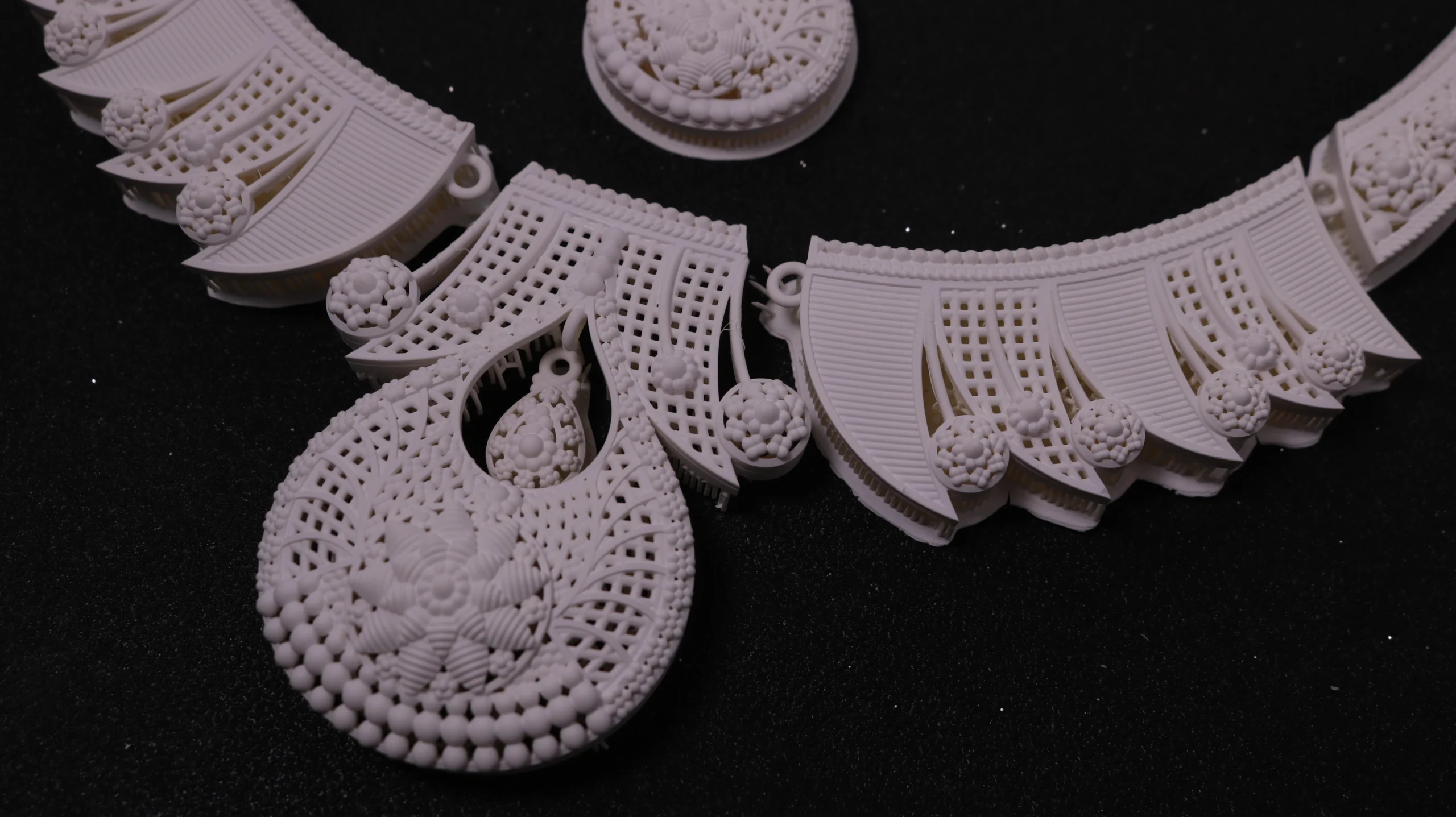

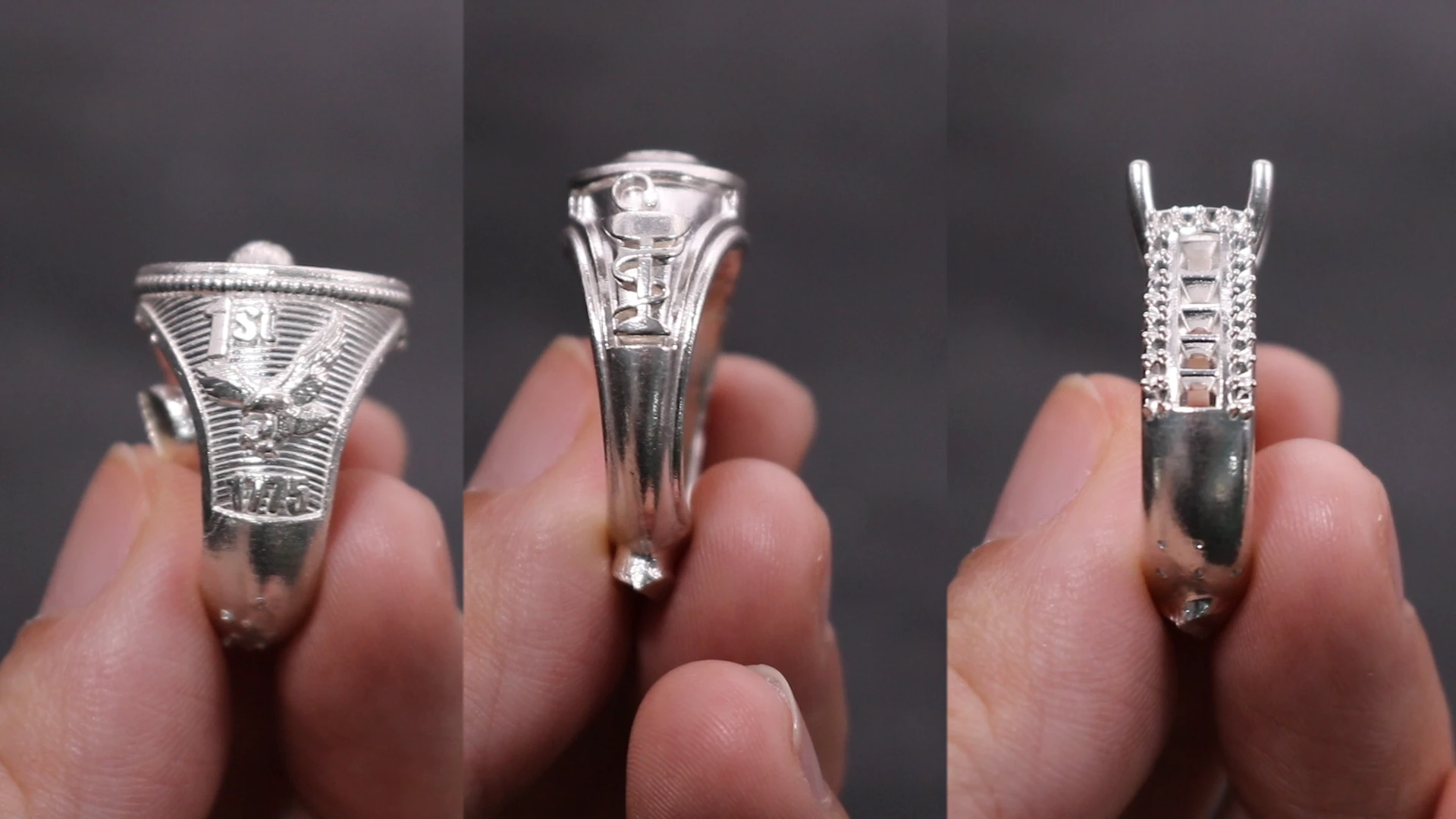

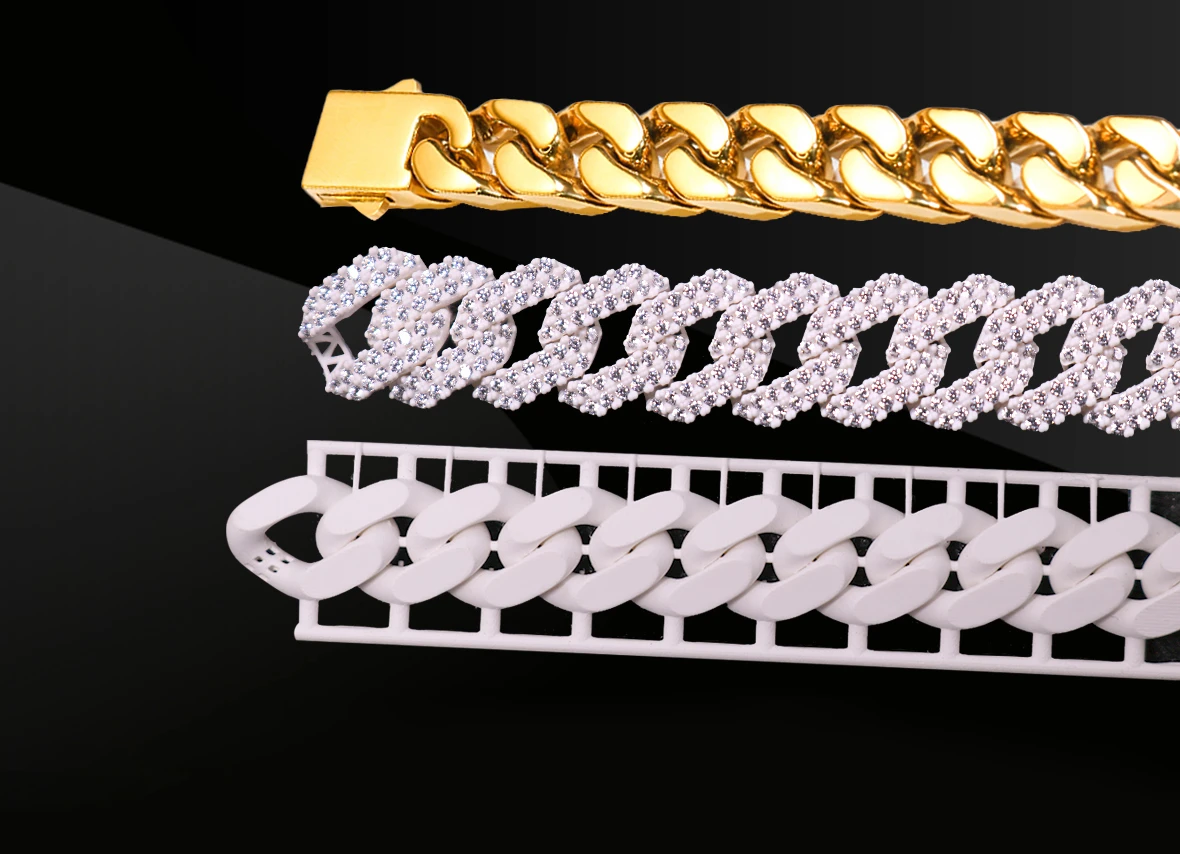

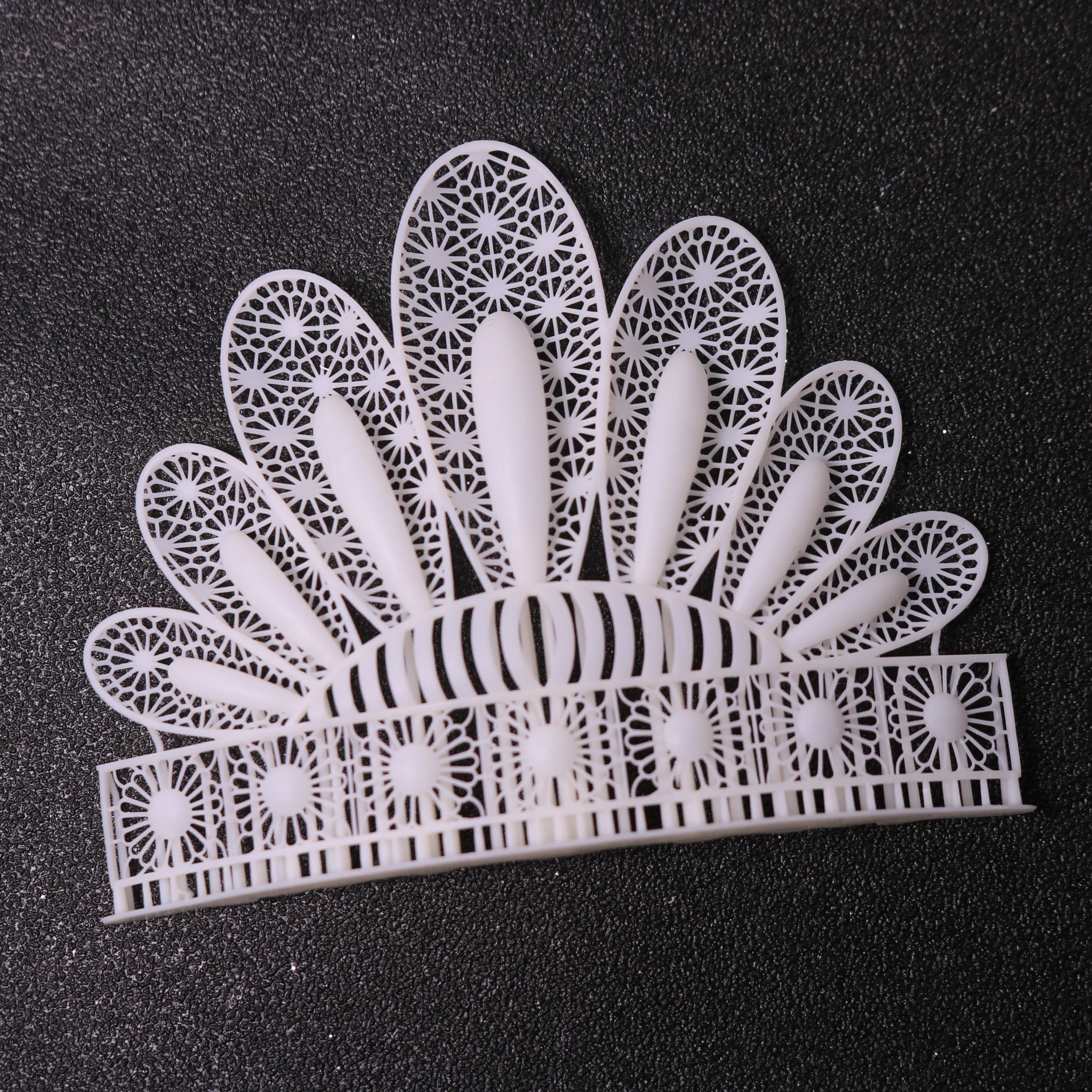

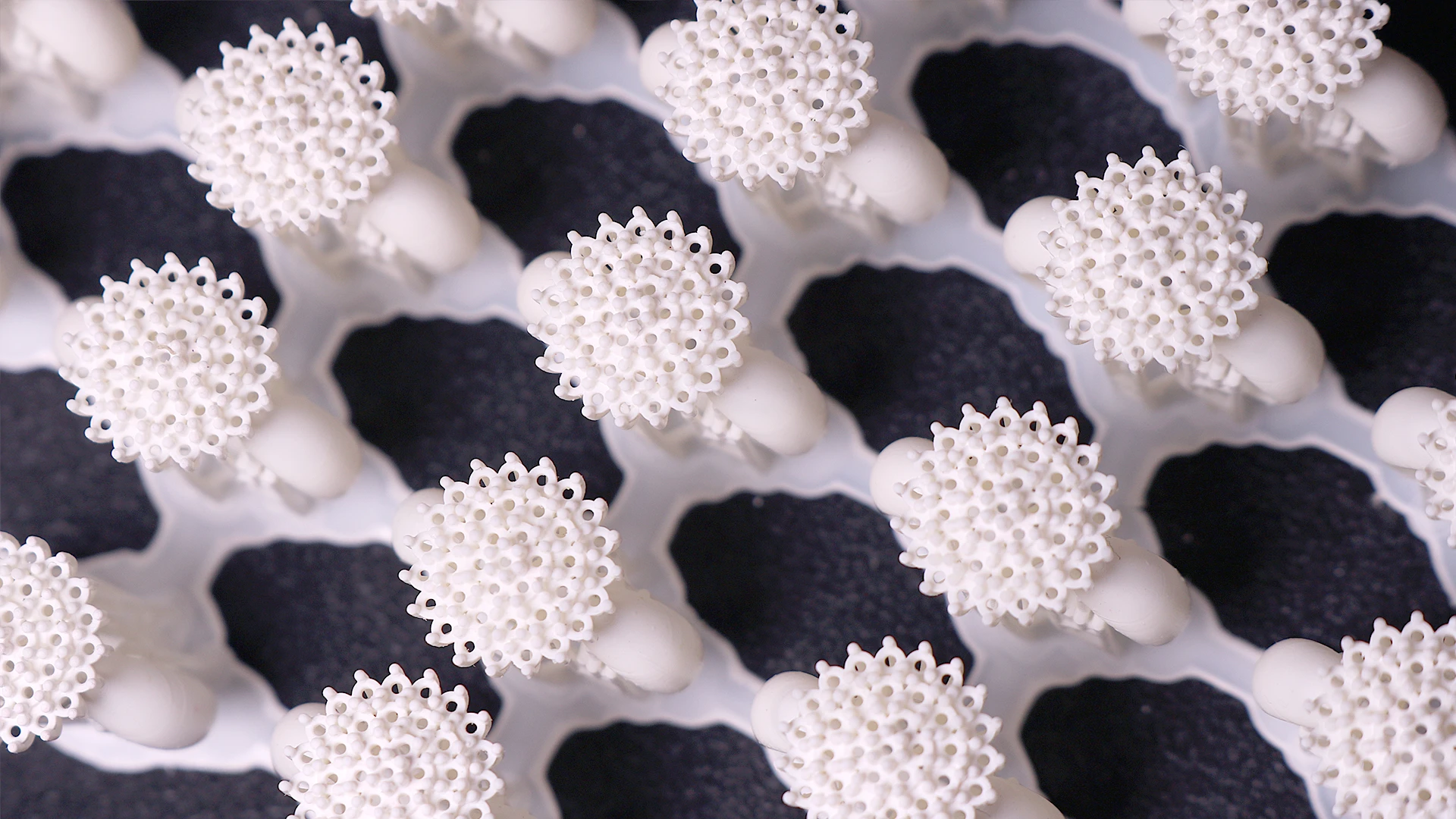

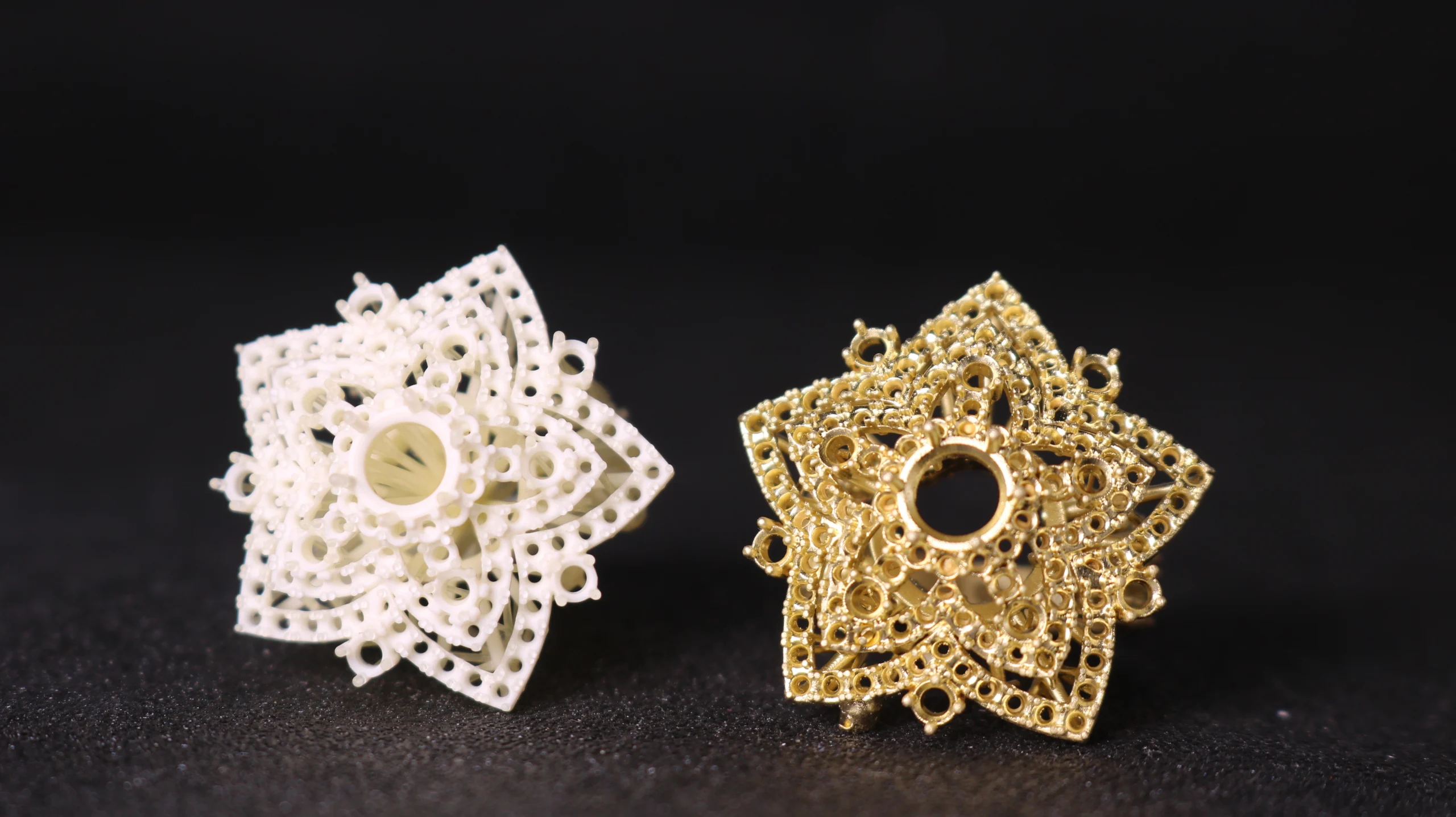

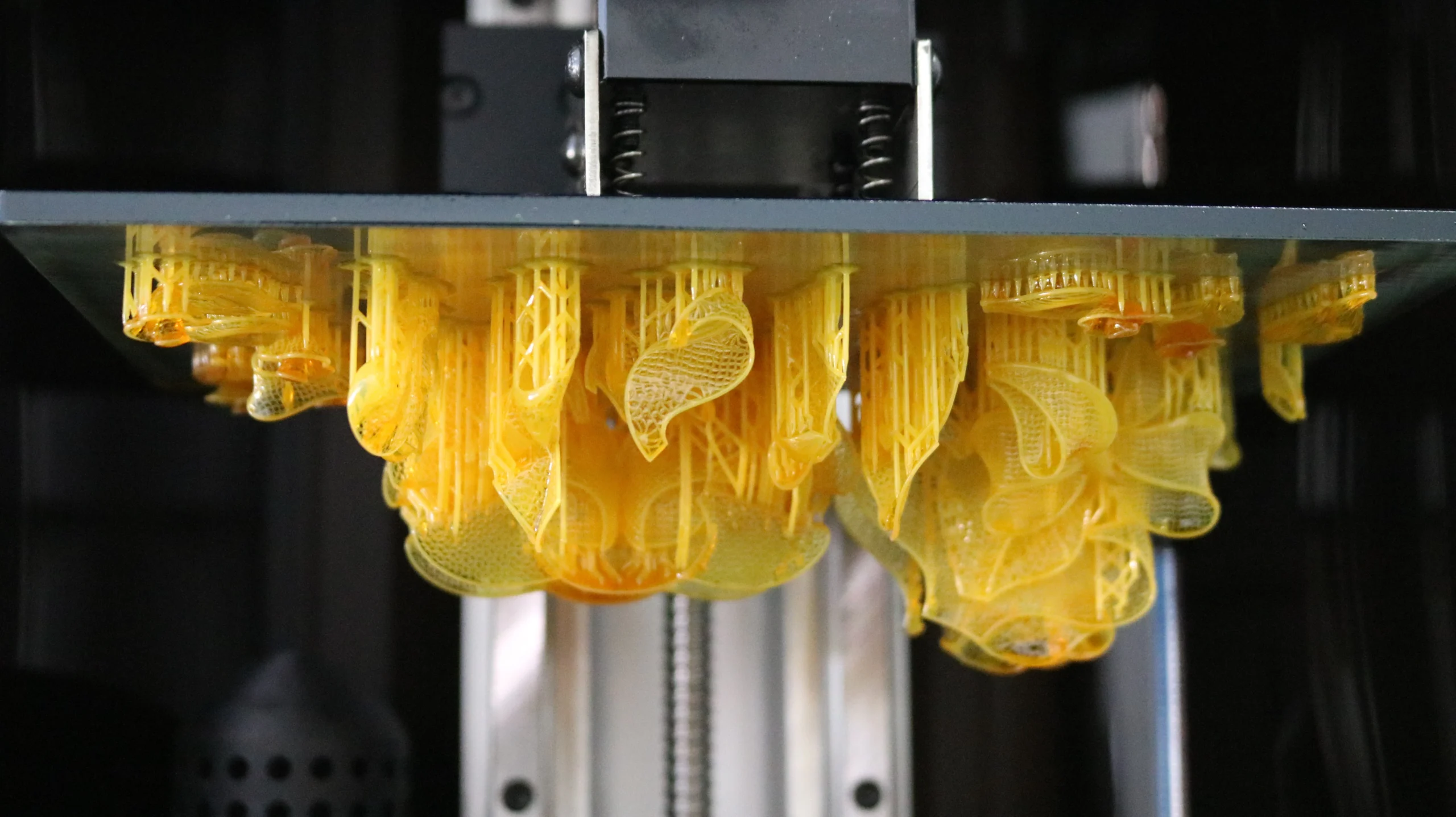

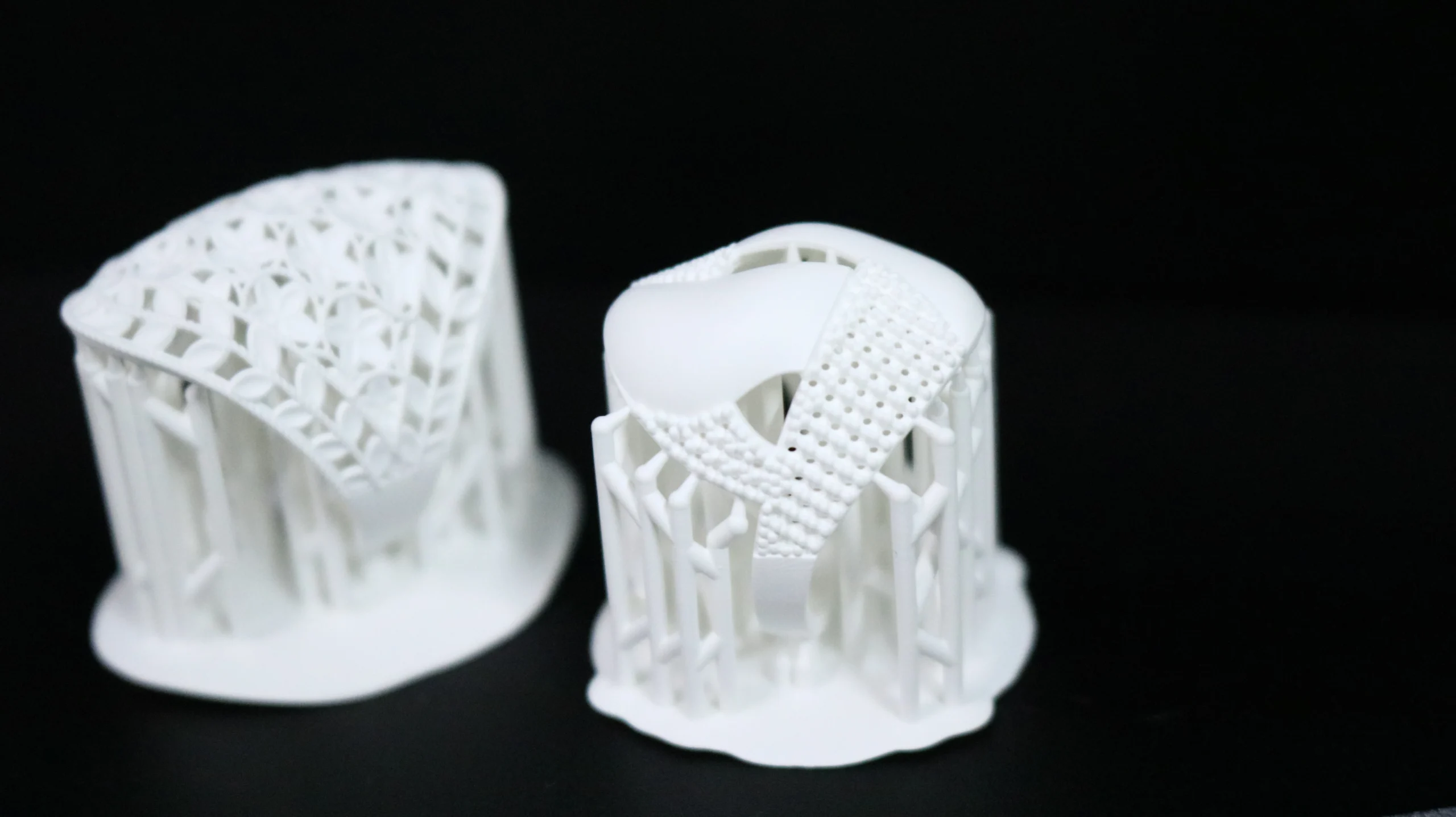

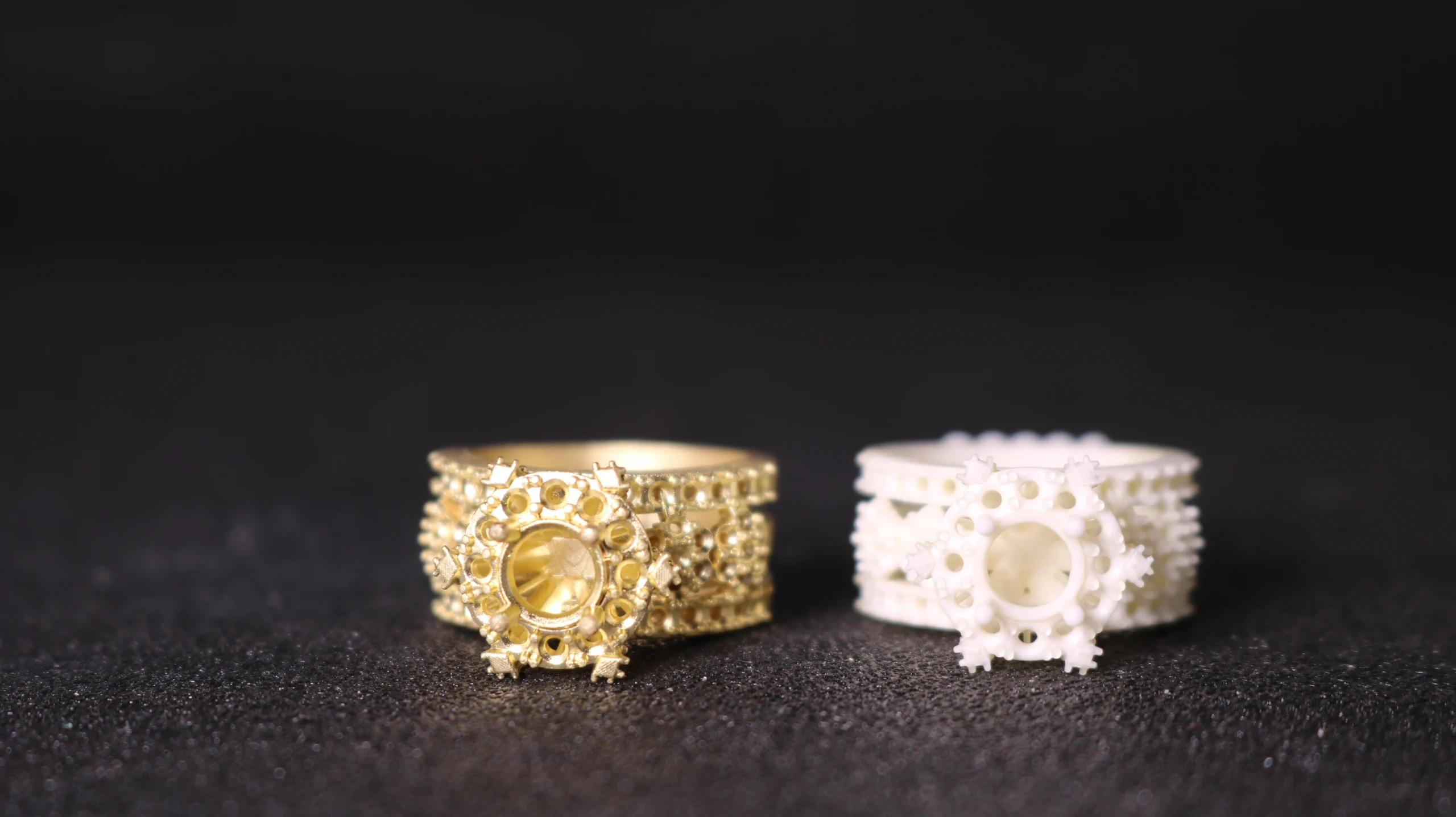

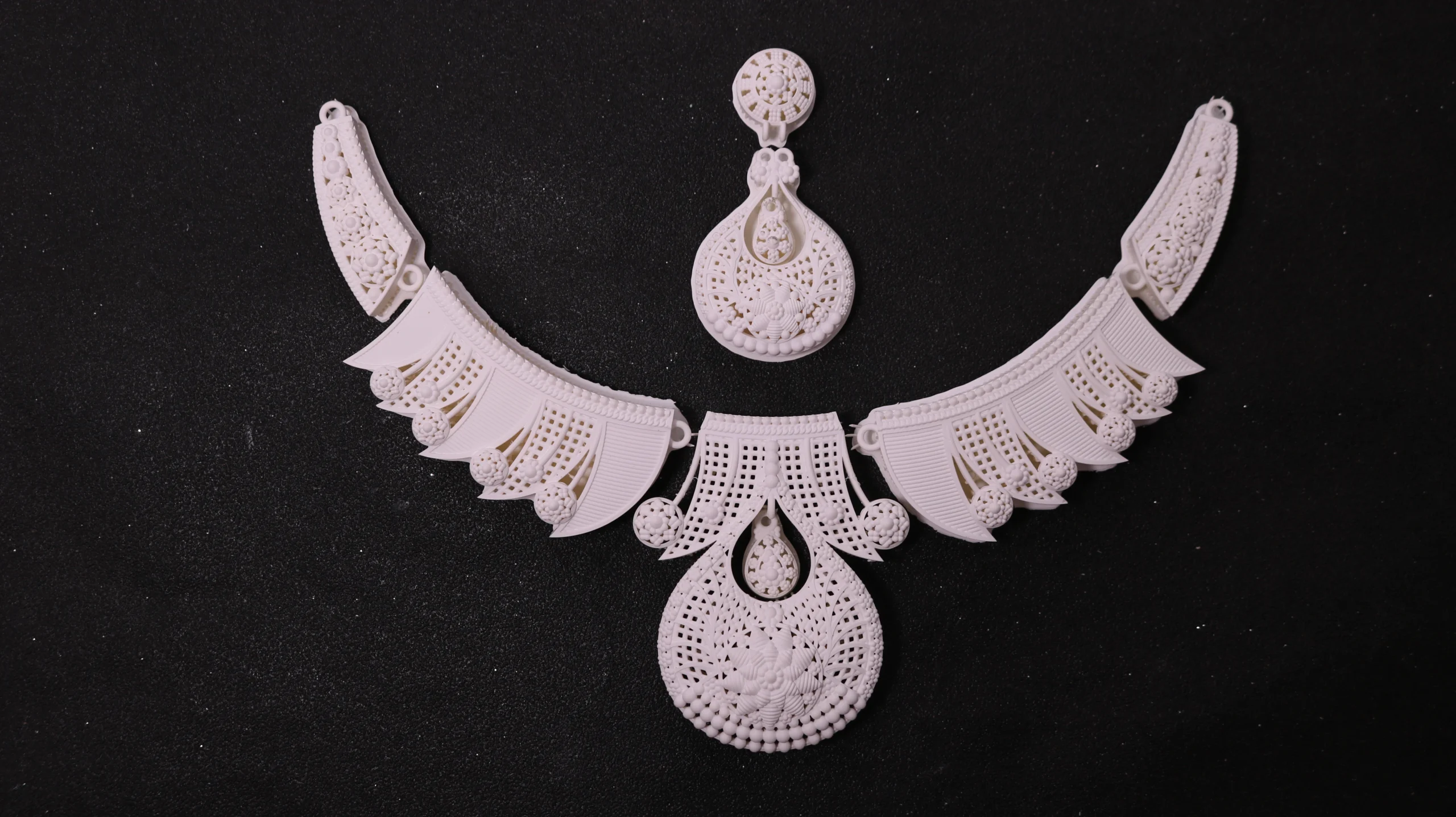

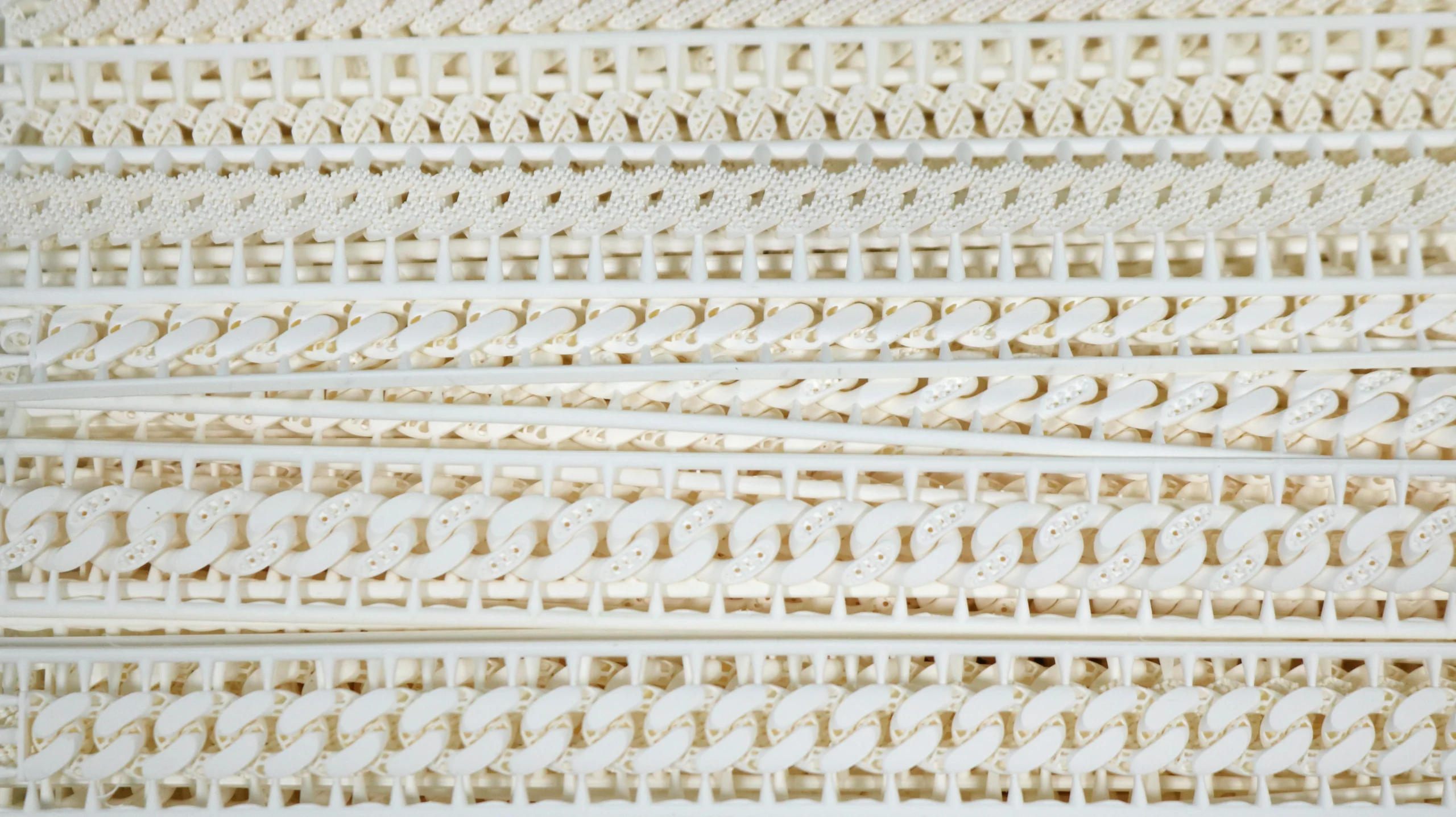

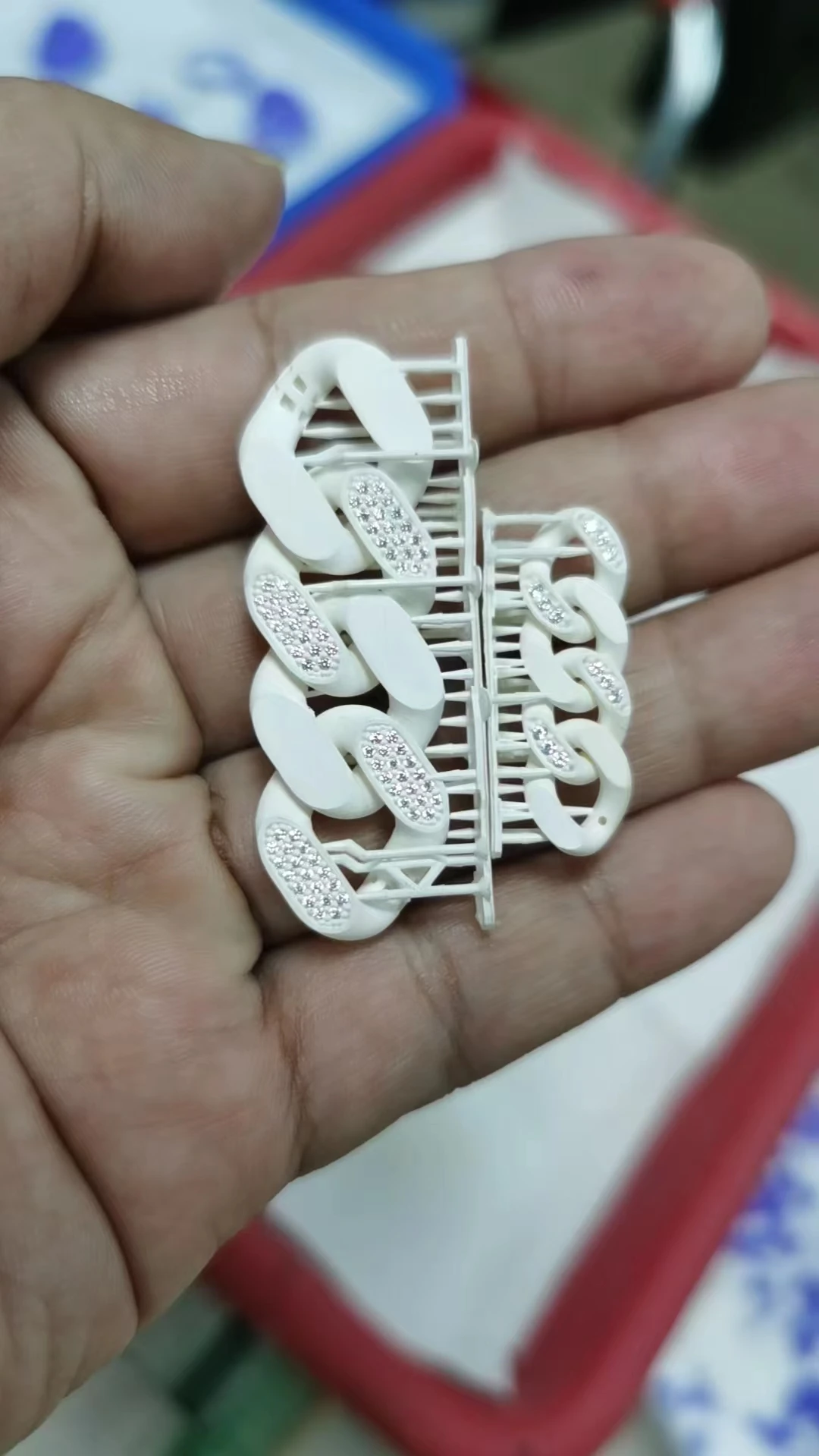

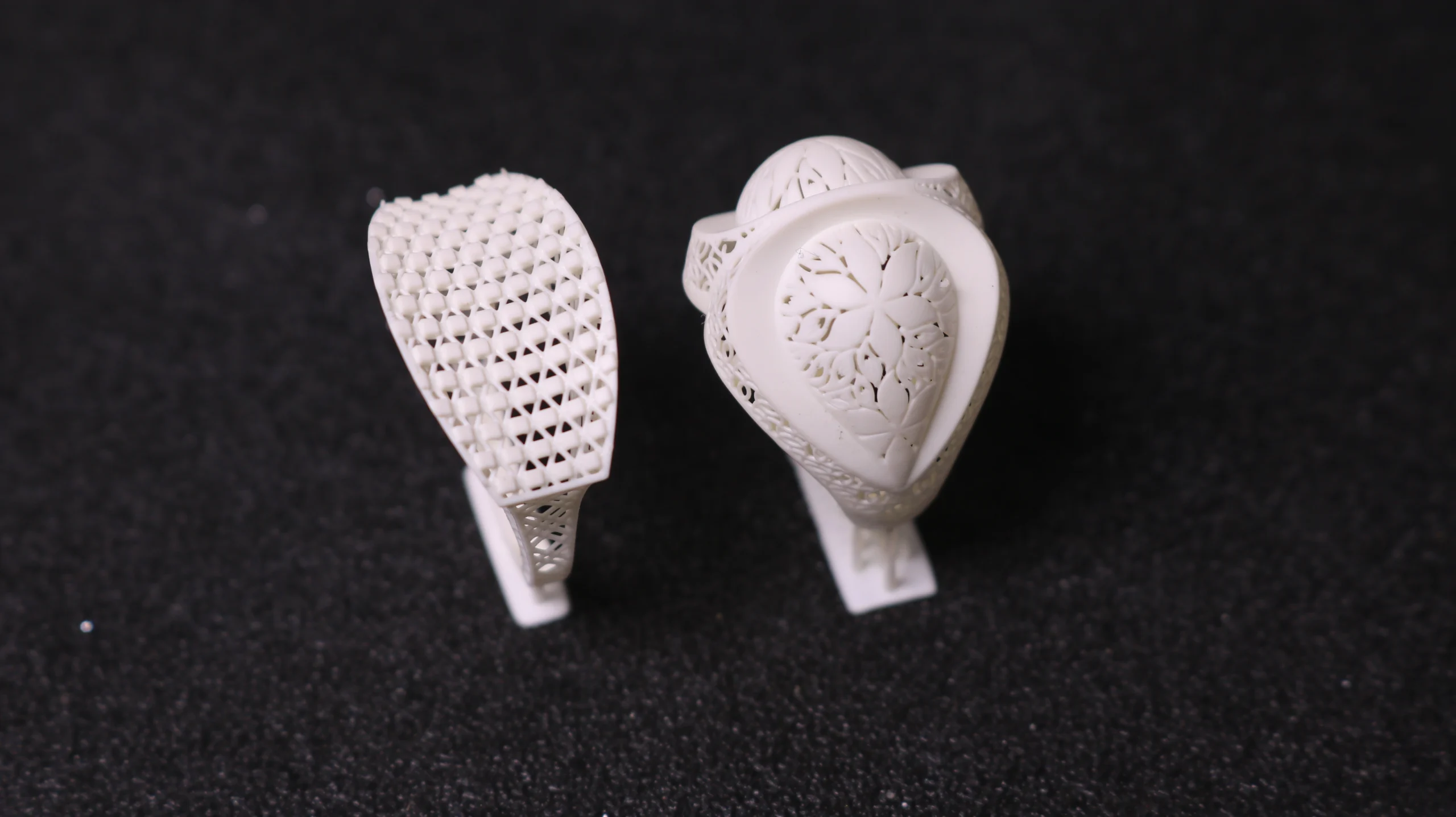

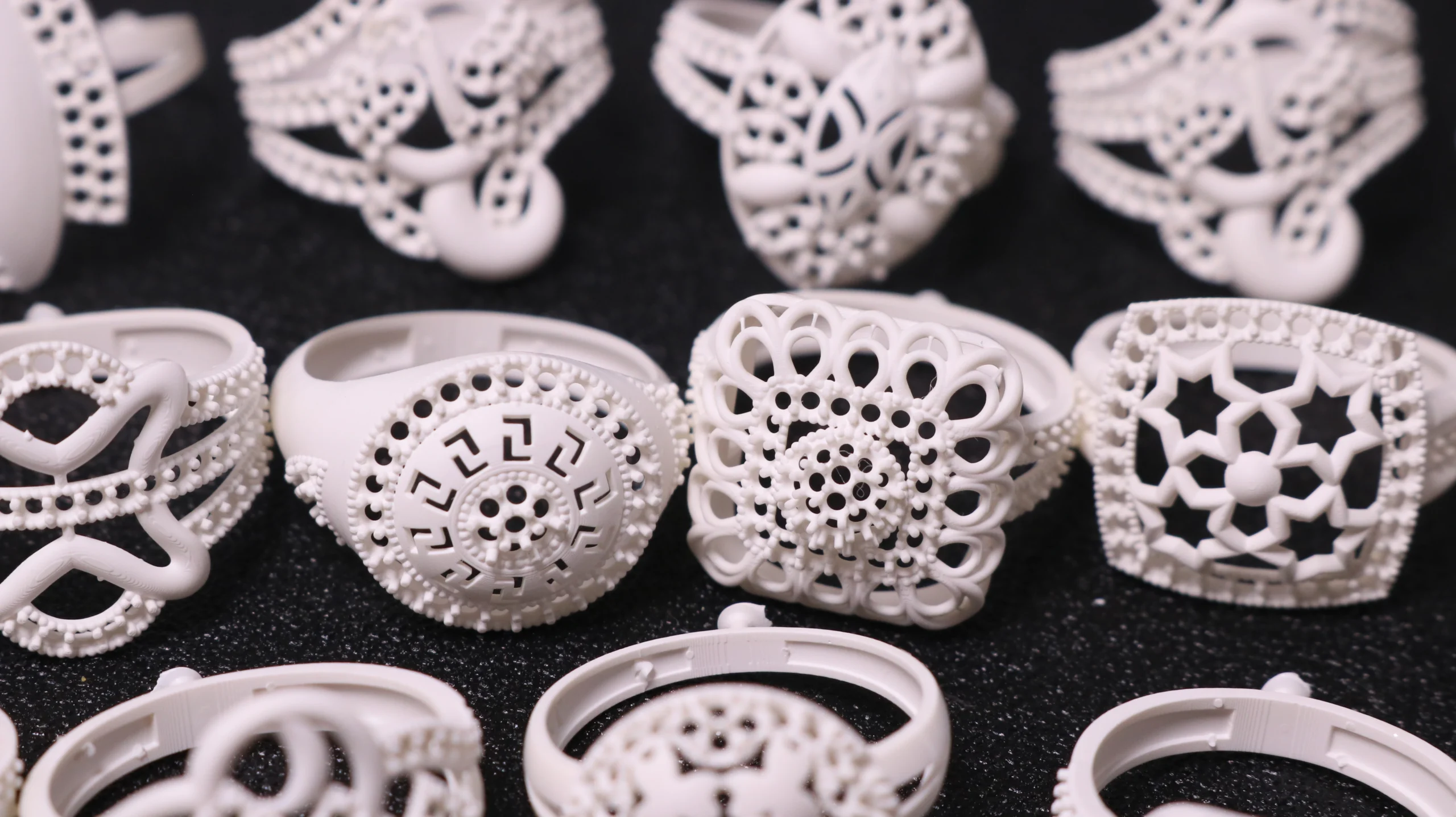

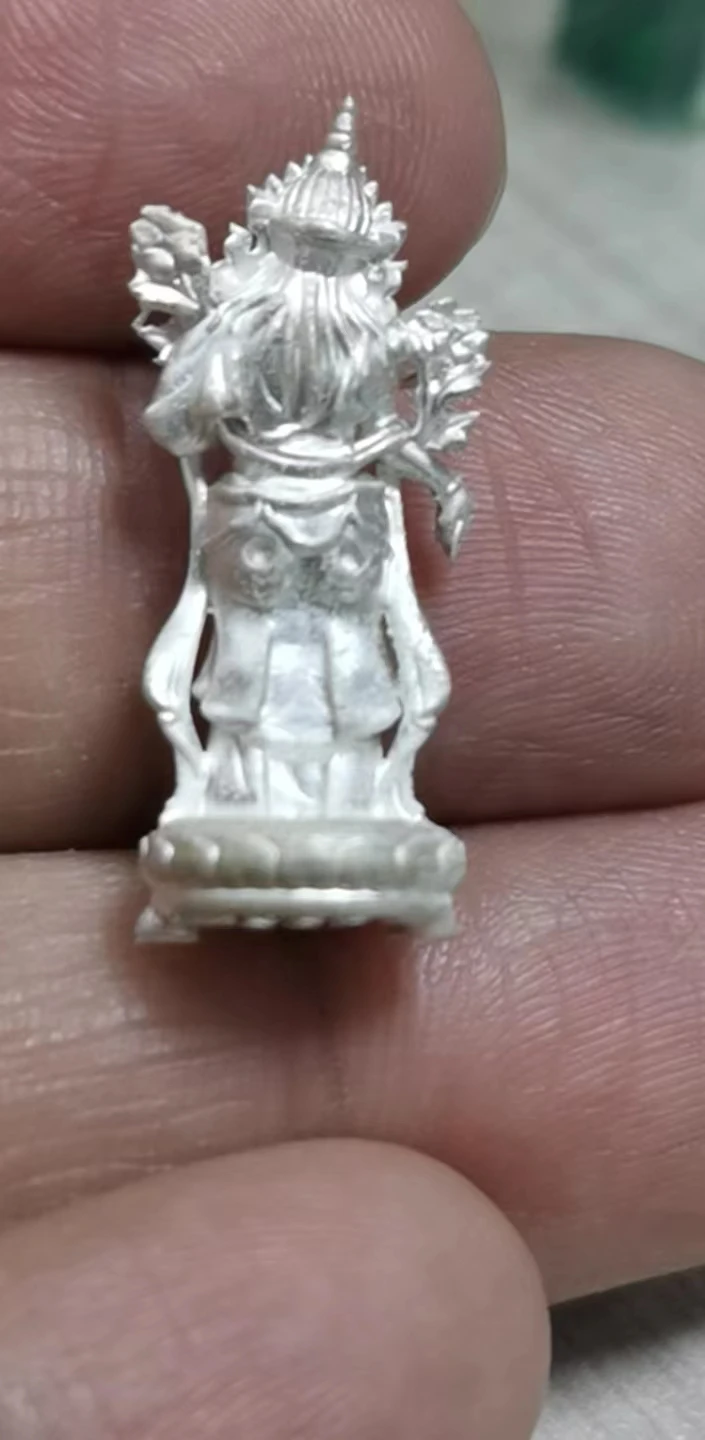

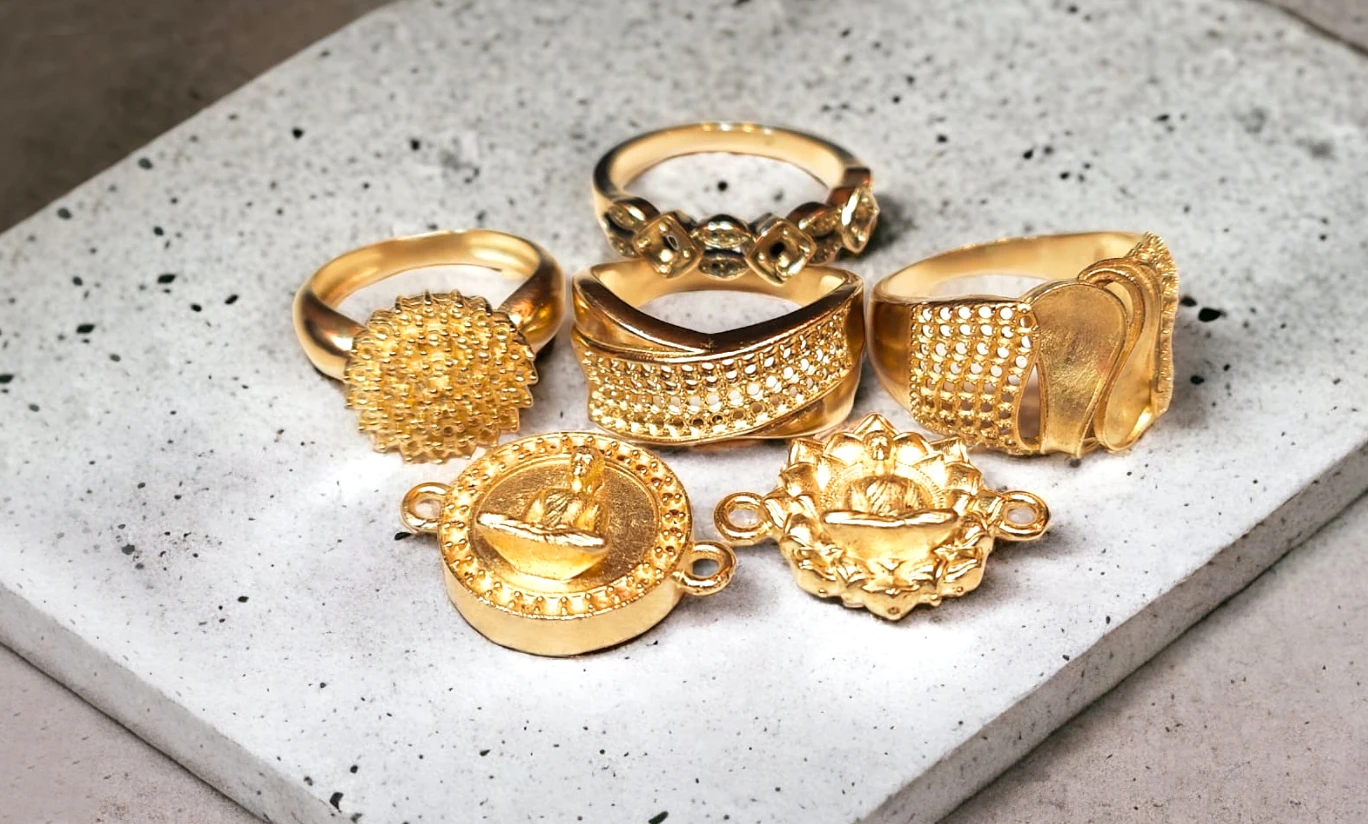

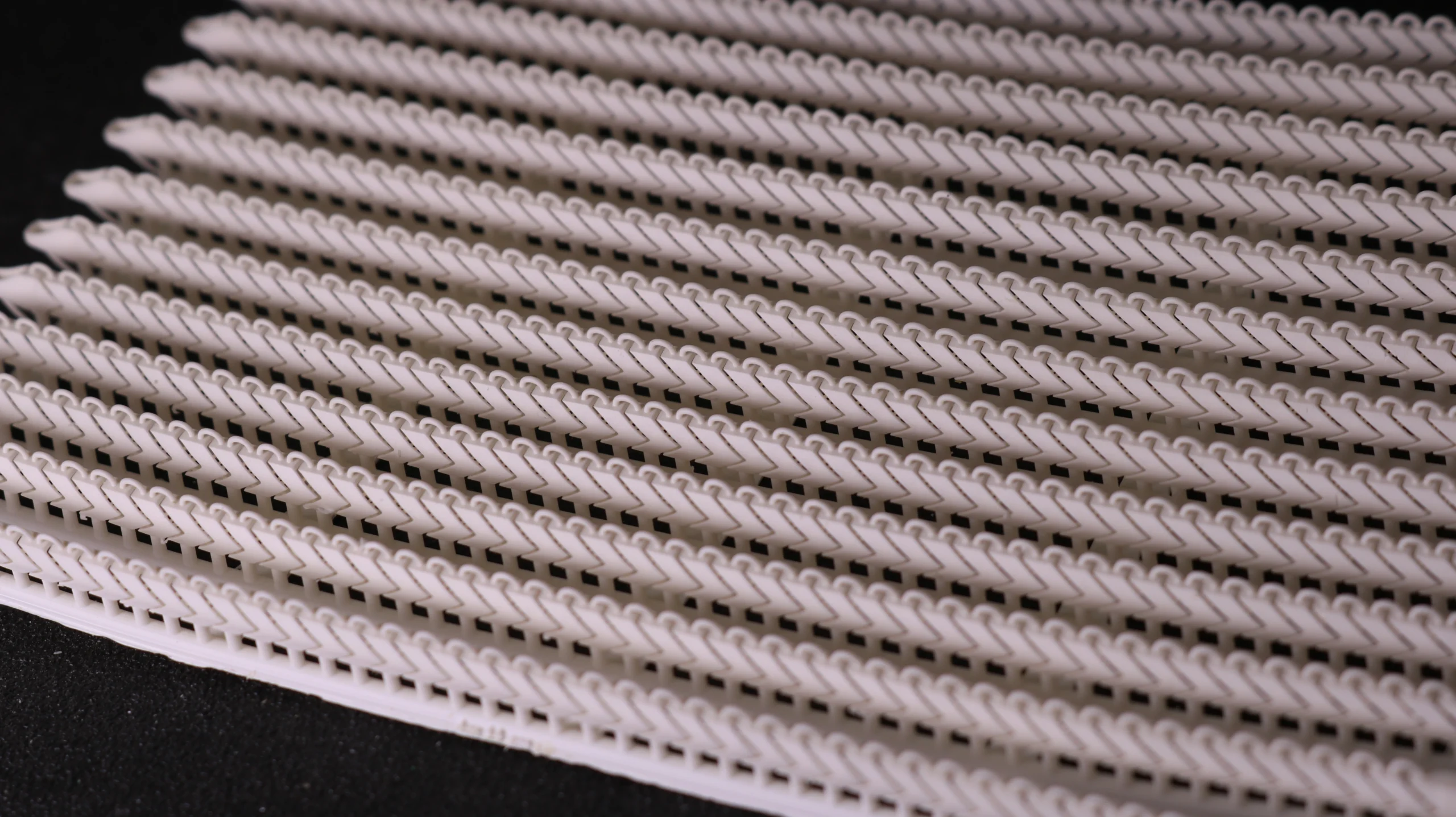

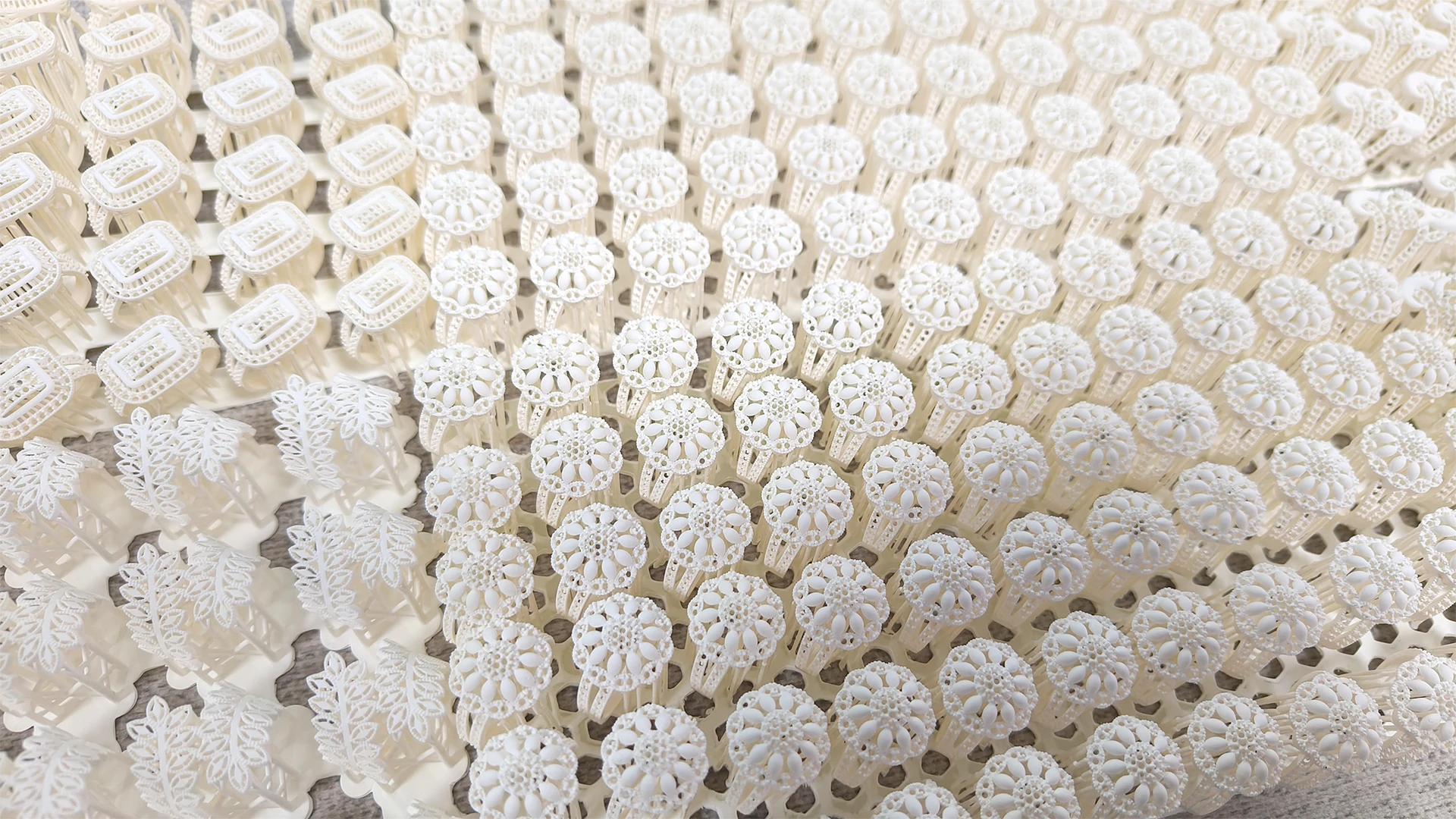

White Wax Resin Print Samples
Specifications of White Wax Casting Resin (800D)
Content Data value Testing method color Yellow Viscosity 260 cps(25℃) ASTM D1084-1997 Density 1.2~1.3g/cm³ ASM D1875-69(1980) Shrinkage ≤0.8% Capillary method Hardness 75A~35D ASTM D2240 05(2010) choose high-strength gypsum powder can achieve better casting effect
Recommend:
1.Prestige OPTIMA
2.Gilcast HS SOFT
3.GRS (TECAST RESINCAST)
Precautions for use:
White wax is easy to solidify at low temperature.If the ambient temperature is low, first heat the resin to above 25 degrees and stir evenly. The temperature of the printing chamber is above 25 degrees Celsius during printing.
