3D printing materials for dental labs and dentists
dental 3d printer resin

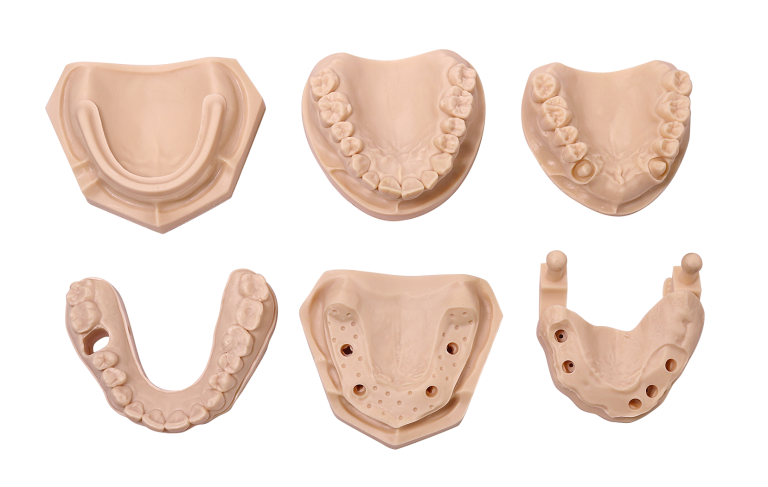

iF3160 High Strength Dental Mold Resin
Designed specifically for orthodontic dental molds and implant dental molds.
This is a matte color surface with clear details, high strength and high hardness, fast printing dental mold resin, suitable for implant and orthodontic dental mold applications.
- Similar to plaster
- High hardness
- Rapid prototyping only takes 1.6s/layer
- Assembly accuracy ± 20 microns
- Long-term storage without warping
| Content | Data value | Testing method |
| Viscosity | 380-400cps(25℃) | ASTM D1084-1997 |
| Density | 1.2 | ASM D1875-69(1980) |
| Shrinkage | ＜0.5% | Capillary method |
| Hardness | >82D | ASTM D2240-05(2010) |
| Deformation temperature | 120℃ | ASTM D1929-1996 |
What else can dental mold resin do?
√ Dental Study Models
√ Gingival Base Model
√ Digital Wax Ups
√ Temporary Tooth Base Model
√ Models With Dies
√ Model With Aligners
√ Surgical Guide Base Model

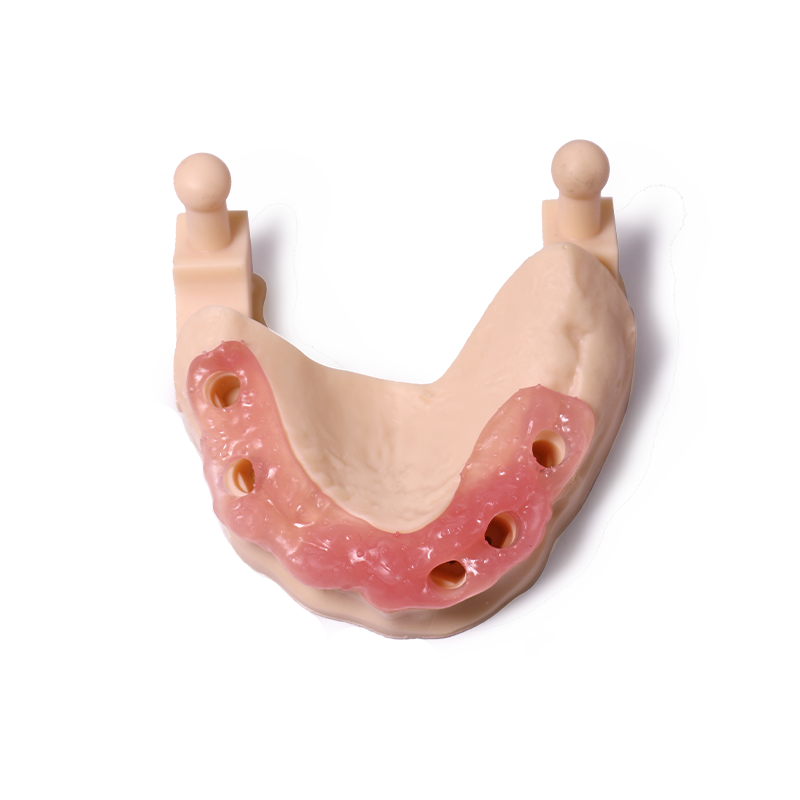

iF3161 Biocompatible Gingival Resin
A soft, biocompatible resin suitable for dental and gingival applications.
3161 resin has no volatility and low odor. After curing, the model has a flexibility similar to silicone, with a fine surface and high molding accuracy.The tolerance of 3D printed model and prototype design is controlled within ±0.05mm, you can easily use it to assemble dental models.
- Biocompatibility testing
- Soft and Tough Resin
- Natural color
- High precision and low shrinkage
- Suitable for artificial gingiva
| Content | Data value | Testing method |
| Viscosity | 40-60cps(25℃) | ASTM D1084-1997 |
| Density | 1.05~1.1 | ASM D1875 |
| Shrinkage | ＜1% | |
| Hardness | 40-60D | ASTM D2240 |
| Elongation at break | ＞3kg | Test strip 1mm |
iF3162 Dental Occlusal Splint Resin
This is a soft, biocompatible resin designed for use in dental occlusal splints.
This 3D printing resin for bite plates combines both toughness and hardness, ensuring maximum durability without sacrificing flexibility. Its high level of transparency remains consistent over time, preventing any yellowing and maintaining an aesthetically pleasing appearance. It has undergone rigorous testing for biocompatibility, toxicity, and water absorption to ensure safe and stable use.
- Biocompatibility testing
- Toxicity certification
- Low hardness and high strength
- High oral tolerance
- High transparency, not easy to yellow
| Content | Data value | Testing method |
| Viscosity | 330-350 cps(25℃) | ASTM D1084-1997 |
| Density | 1.15g/cm³ | ASM D1875 |
| Hardness | 75D | ASTM D2240-05(2010) |
| Water absorption | <40mg/mm³ | ISO 20795-2 |
| Transparency | Transmittance>80% |
iF3163 Dental Casting Resin
This material is perfect for casting dental crowns,veneers, and more
with ease and no ash residue.
A high precision material for casting the coping and substructure, casting the full contour crown, casting the removable partial denture frame(RPDs) and dental inlay casting.
- Easy casting, no ash
- Can print crowns with a wall thickness of 0.2mm
- Wax content 30%
- The printing surface is smooth and the details are clear
- Low shrinkage, accurate assembly
- Easy to remove support structures by hand
| Content | Data value | Testing method |
| Viscosity | 250-280 cps(25℃) | ASTM D1084-1997 |
| Density | 1.09g/cm³ | ASM D1875 |
| Hardness | 63D | ASTM D2240-05(2010) |
| Tensile strength | 25-30Mpa | ASTM D5041 |
| Modulus of elasticity | 650MPa |
iF3164 Temporary Crown Resin
It is an excellent resin material for 3D printing temporary crowns, bridge restorations,
inlays, high inlays and veneers.
A high precision material for casting the coping and substructure, casting the full contour crown, casting the removable partial denture frame(RPDs) and dental inlay casting.
- Natural color, color: A1, A2, A3
- Passed toxicity test, biocompatibility test
- Antibacterial, resistant to the corrosiveness of the oral environment
- Strength＞55mpa
- Fast production, it only takes 50 minutes to print 88 crowns
| Content | Data value | Testing method |
| Viscosity | 350-420 cps(25℃) | ASTM D1084-1997 |
| Density | 1.25g/cm³ | ASM D1875 |
| Hardness | 85D | ASTM D2240-05(2010) |
| Water absorption | 0.5% | ASTM D570 |
| Bending strength | >55MPa | ASTM D1781 |
iF3165 Surgical Guide Resin
This is a transparent and hydrophobic resin suitable for dental surgery guide plates.
The surgical guide resin is a biocompatible resin for applications such as 3D printing dental surgical guides for implants. It has undergone rigorous testing and fully meets the dental requirements for part quality, precision and performance.
- Biocompatible certification
- High transparency
- Taking into account the toughness,the operation is not easy to break
- Low water absorption
- High stability, not easy to deform
- Easy to remove support structures by hand
| Content | Data value | Testing method |
| Viscosity | 330-350 cps(25℃) | ASTM D1084-1997 |
| Density | 1.15g/cm³ | ASM D1875 |
| Hardness | 78D | ASTM D2240-05(2010) |
| Water absorption | 0.5% | ASTM D570 |
| Bending strength | 65MPa | ASTM D1781 |
iF3166 Denture Base Resin
Denture-based resin, when used in conjunction with temporary crown resin, facilitates the creation of dentures with ease.
IF3166 Denture Base Resin is a highly biocompatible pink resin specifically formulated for temporary denture fabrication. It offers excellent natural aesthetics and durability, while ensuring low shrinkage and easy processing. This resin works effectively when used in conjunction with Temporary Crown Resin, facilitating the efficient and straightforward creation of dental prosthetics.
- Biocompatible certification
- Toxicity certification
- Natural color
- For use with temporary crowns
- High strength high hardness
- Low water absorption
| Content | Data value | Testing method |
| Viscosity | 450-750 cps(25℃) | ASTM D1084-1997 |
| Density | 1.15g/cm³ | ASM D1875 |
| Hardness | 81D | ASTM D2240-05(2010) |
water absorption | <35μg/mm³ | |
| Bending strength | ＞2200Mpa | ISO20975-1 |
iF3166 Denture Base Resin
This is a biocompatible resin for making custom dental trays.
More suitable for precise 3D printing of custom dental impression trays, functional impression trays, and base trays.
- Biocompatible certification
- Toxicity certification
- Low shrinkage, no deformation
- High strength high hardness
- Low water absorption
| Content | Data value | Testing method |
| Viscosity | 380-400 cps(25℃) | ASTM D1084-1997 |
| Density | 1.15g/cm³ | ASM D1875 |
| Hardness | 75D | ASTM D2240-05(2010) |
Elastic modulus | 1700MPa | ASTM D5041 |
| Bending strength | 72Mpa | ISO20975-1 |
