Temporary crowns serve as essential interim restorations in dental treatments, providing protection and aesthetics while the final prosthetic is being fabricated. With the advancement of 3D printing technology, the production of temporary crown has become faster, more precise, and cost-effective. This article explores the step-by-step application process of dental 3D printers in temporary crowns.
Core Principles of 3D Printing Temporary Crown
3D printing is based on additive manufacturing, which constructs objects layer by layer. The workflow for dental applications includes:
- Digital Modeling: A 3D digital scan of the patient’s dentition is obtained using an intraoral scanner or computed tomography (CT) scan.
- Slicing Process: The digital model is segmented into thin layers (typically 50-100 microns thick) and converted into printer-readable instructions.
- Material Deposition: Depending on the selected printing technology (SLA, DLP, or LCD), layers of resin or composite material are successively solidified to form the crown structure.
Temporary Crown Material
Materials for temporary crown must exhibit biocompatibility, mechanical strength, and aesthetics. Common choices include:
- Light-Cured Resins: Bis-GMA and UDMA-based materials, which offer quick curing and reduced heat generation (IFUN temporary crown resin 3164).
- Medical-Grade Composite Resins: FDA and CE-certified options like Shining 3D’s TN11/CB11 resins, providing high toughness and natural tooth color.
- Advanced Materials: PEEK (polyether ether ketone) or titanium alloys for extended durability and complex restoration needs.
Design Workflow of 3D-Printed Temporary Crown
- Data Acquisition: Utilize intraoral scanners like 3Shape TRIOS to capture accurate dental impressions.
- CAD Design: Using software like Exocad or CreTemp, the crown’s morphology is designed, ensuring proper occlusion and marginal adaptation.
- Slicing and Parameter Optimization: The model is adjusted for optimal layer thickness (typically 50 microns for precision) and support structure placement to prevent distortion.
Key Printing Technologies in Dental Applications
- SLA (Stereolithography): Laser-based resin curing offers exceptional precision (up to ±26.8 microns), ideal for highly detailed crowns.
- DLP (Digital Light Processing): Uses projected light to cure entire layers simultaneously, offering faster print speeds, making it suitable for chairside applications.
- LCD (Liquid Crystal Display): A cost-effective alternative to DLP, utilizing high-resolution monochrome screens for rapid and detailed printing.
Post-Processing for Functional and Aesthetic Enhancement

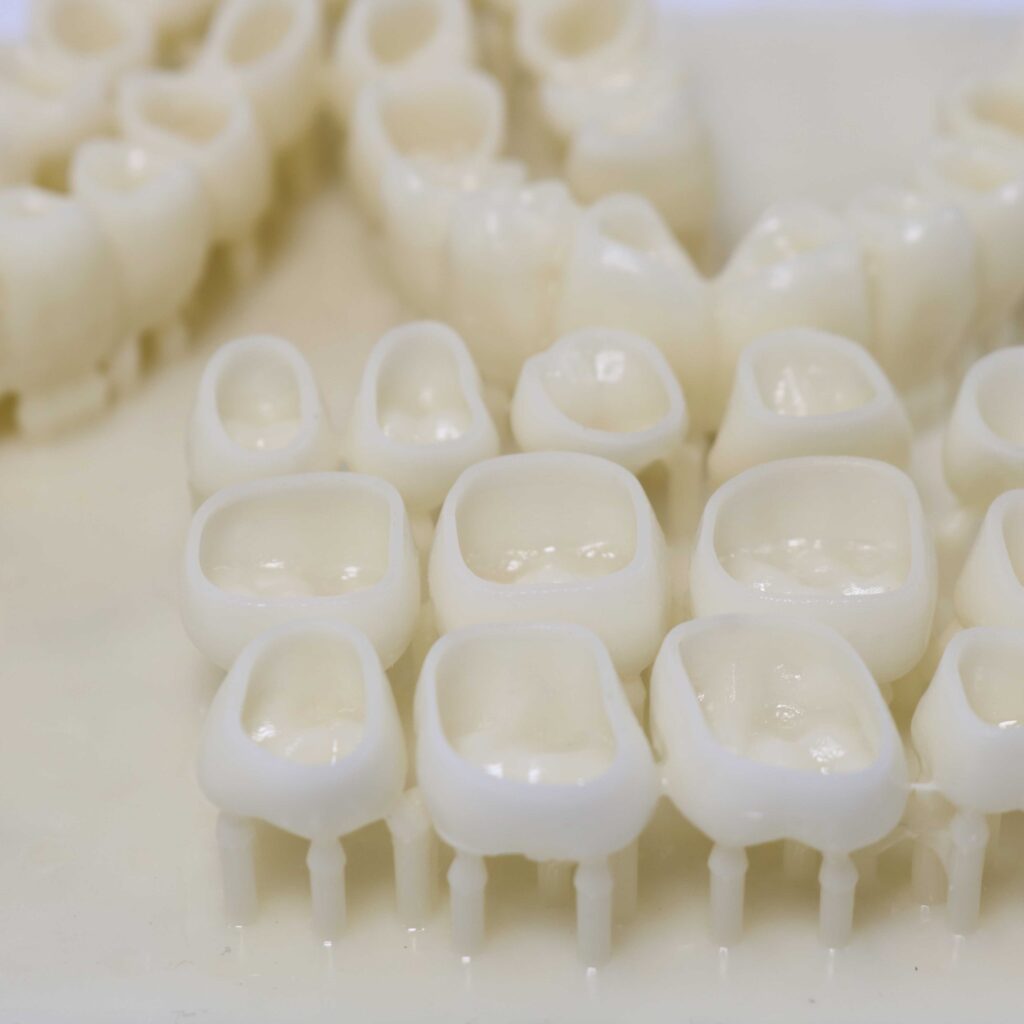

- Cleaning & Support Removal: Isopropyl alcohol or ultrasonic cleaning removes excess resin, while support structures are carefully detached.
- Secondary Curing: UV curing in nitrogen environments (e.g., Form Cure) enhances mechanical properties and surface smoothness.
- Polishing & Finishing: Diamond burs and flexible polishing disks refine crown surfaces for a natural enamel-like gloss.
- Clinical Fit & Bonding: The temporary crown is trial-fitted, occlusion is checked, and then adhered using temporary cement for stability.
Precision Control & Clinical Standards
- Layer Thickness Considerations: 50-micron layers yield higher resolution, reducing post-processing adjustments.
- International Standards Compliance: ISO 12836 ensures CAD/CAM restorations meet dimensional accuracy requirements.
- Error Minimization Techniques: Calibration of scanners, software optimizations, and controlled curing processes minimize deviations, ensuring a precise fit.
How Long Does a Temporary Crown Last?
The longevity of a temporary crown depends on multiple factors, including material selection, post-processing techniques, and patient-specific conditions. Generally, temporary crowns last between a few weeks to several months, depending on their intended use and care.
- Material Durability: 3D-printed temporary crowns made from medical-grade resins or composite materials typically last longer than conventionally fabricated ones. High-performance resins like bis-GMA and UDMA offer increased resistance to wear and staining.
- Printing Technology Influence: SLA and DLP printers produce higher precision crowns, reducing microgaps and improving fit, which enhances longevity.
- Post-Processing Effect: Proper curing, polishing, and secondary hardening significantly impact the final mechanical properties, ensuring better wear resistance and durability.
- Patient Care Factors: Avoiding excessive chewing forces, maintaining good oral hygiene, and using non-abrasive cleaning methods contribute to extended temporary crown longevity.
Differences Between 3D-Printed Temporary Crown and Permanent Crown
While both temporary and permanent crowns can be fabricated using 3D printing, their design considerations and material selection vary significantly:
| Feature | Temporary Crown | Permanent Crown |
|---|---|---|
| Material Type | Light-cured resins, composite resins | Ceramic-filled resins, zirconia, PEEK |
| Durability | Designed for short-term use (weeks to months) | Long-lasting (years or decades) |
| Printing Precision | Moderate to high precision (±50 microns) | Ultra-high precision (±25 microns) |
| Post-Processing | Basic polishing and curing | Advanced sintering, multi-step polishing |
| Application | Interim solution before permanent crown | Final restoration with extended wear |
Temporary crowns emphasize speed, affordability, and adequate mechanical strength for short-term use, while permanent crowns focus on exceptional strength, biocompatibility, and long-term stability.
3D printing has revolutionized the fabrication of temporary dental crowns, enhancing efficiency, accuracy, and patient experience. With continual advancements in material sciences and printing technologies, the adoption of 3D-printed crowns in dental practices is set to expand further, offering customized, high-quality solutions with minimal turnaround times.
