Gold Giant 16K: Precision-Engineered 3D Printer for Jewelry Industry Scale Production
Maximize batch manufacturing yield and eliminate secondary manual cleanup. The Gold Giant 16K integrates advanced optical calibration with rugged mechanical parts to solve the distinct challenges of commercial loss-wax investment casting.
14×19 μm Pixels
Ultra-sharp definition for intricate jewelry making.
93% Uniformity
Eliminates perimeter dimensional drift.
C7 Ball Screw
Suppresses horizontal layer lines completely.
Full-Plate Optical Accuracy: Zero-Scrap Batch Production
How our resin 3d printer for jewelry addresses the issue of peripheral dimensional drift during high-density manufacturing runs.
In high-volume jewelry manufacturing workshops, generic printers face light fall-off and geometric distortion at the outer edge of the build plate. This variations result in high scrap rates for rings or charms placed along the perimeter, suffering from blurred hallmarks or inaccurate prong tolerances.

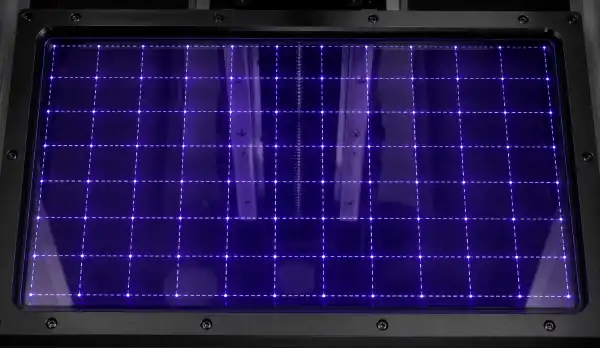

The Gold Giant 16K remedies this through a 405nm collimated low-refraction point light source paired with a factory-calibrated 60-zone screen adjustment layout. Each manufacturing unit is individually tuned to maintain an exact baseline exposure intensity of 5W/m² across the entire panel, limiting variance to a strict ±3% deviation.

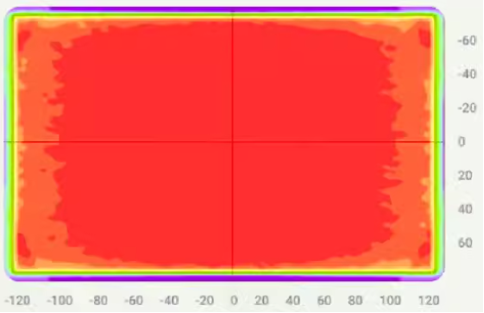

By delivering consistent output energy across the 211×118mm build envelope, this industrial resin 3d printer for jewelry provides an absolute 93% optical uniformity. Whether an intricate filigree master model sits dead center or at the absolute corners of the plate, it cures under uniform exposure parameters.

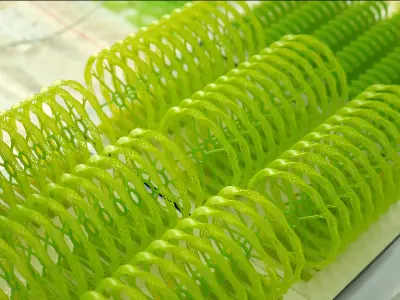

Batch Metric Validation: Real-world multi-ring weight verification tests utilizing 700DS castable wax resin demonstrated a full-plate weight consistency of ≥90%. The average single-piece weight holds tightly to 0.612g across all data nodes, allowing jewelry casting houses to fill the entire platform without risking edge-piece dropouts.
Validated Performance: 24/7 Floor Reliability Data
Hard operational numbers generated from rigorous multi-shift testing environments inside jewelry casting facilities.

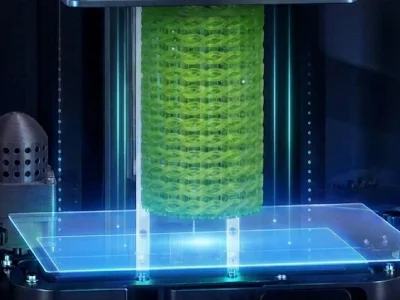

Z-Axis Drive Durability
Testing ConditionsContinuous tall-profile multi-cycle lifting under high-torque stepper loads.Validated Performance DataBuilt with a premium C7-grade precision ball screw and dual linear guide rails, maintaining a repetitive positioning tolerance of ≤0.01mm over long runs.Production BenefitEliminates surface vertical layer striations up to 100mm model height. The robust drive train delivers a 5-year operational life, outperforming typical T-type threads that show wear in 6 to 12 months.200W Active Heating

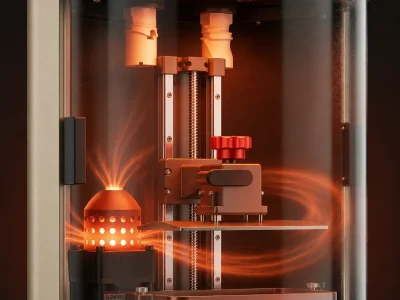

Testing ConditionsContinuous production execution inside unheated facility spaces drops to 15°C.Validated Performance DataAn integrated 200W thermal management system engages automatically when ambient internal air drops below 30°C, stepping the build chamber up from 20°C to 35°C in 5 minutes.Production BenefitMaintains optimal chemical viscosity for high-density wax formulations. Prevents delamination and adhesion failures due to cold workshop environments, providing uniform winter output.Consumables Duty Cycle
Testing ConditionsUninterrupted exposure and peel cycles under high-speed mass production setup.Validated Performance DataFeatures a premium monochrome exposure panel with a 2,000-hour duty life, coupled with heavy-duty TCF release film rated for 50,000 detachment cycles.Production BenefitTCF film structures lower horizontal separation forces while reducing vertical micro-textures. This ensures fewer maintenance intervals and lowers individual component cost-per-piece (CoP).Gold Giant 16K Technical Specifications
Physical and mechanical details verified for integration into high-volume industrial facilities.
| Performance Metric | Gold Giant 16K (Industrial) | Consumer 16K Systems | Casting House Advantage |
|---|---|---|---|
| Optical Engine | 93% Uniformity via 60-zone factory adjustment (±3% variance) | 85% – 88% Uniformity via generic matrix LED lamps | Uniform weight across full build area; zero peripheral part failures. |
| Z-Axis Transmission | C7 Ball Screw + dual-slide linear rails (5-year rated lifespan) | Single guide rail + generic T-type lead screw drive | Positional accuracy ≤0.01mm; completely smooth model vertical surfaces. |
| Chamber Heating | Built-in 200W Heater (20°C to 35°C in 5 minutes) | No internal heating; requires external modifications | Ensures stable performance with high-density castable waxes in cold seasons. |
| Release Film Lifetime | TCF Film Layer (50,000 cycle rating, limits layer line texturing) | Standard FEP layer (20,000 – 30,000 cycle rating) | Improved exterior surface texture; cuts consumable replacement downtime by half. |
| Filigree Wire Accuracy | 0.25mm minimum thickness without structural layer splits | 0.30mm minimum stable wire thickness resolution | Enables lightweight lattice frameworks and thin wire custom orders. |
| Minimum Feature Gaps | XY: 0.22mm / Z: 0.30mm without uncured material pooling | XY: 0.30mm / Z: 0.35mm; risks fluid pocket blocking | Maintains clear open channels in structured undercuts and hollowed shanks. |
Connecting the Digital Foundry Workflow
How the Gold Giant 16K interfaces directly with standardized industrial processing lines to optimize your end-to-end manufacturing yield.

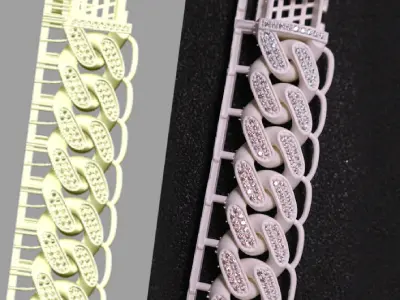

CAD & Pre-Setting
An ultra-low curing shrinkage rate matches precise digital master nominal dimensions. Prong sockets fit gems cleanly, avoiding secondary micro-pave seat cutting.

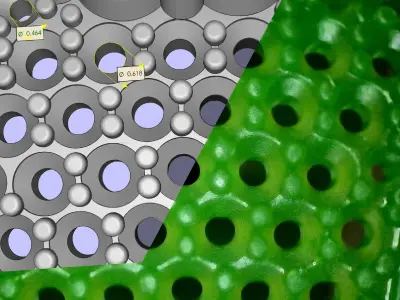

16K Execution
High-resolution batch exposure yields clean 0.464mm true-round micro-holes and crisp hallmark tracking. Eliminates manual bench-work hours before the investment cycle.
Z-Axis Precision Rinsing
Backed by the ultra-precise Z-axis, the printer perfectly perfectly executes 0.30mm vertical micro-gaps without layers fusing. This pristine clearance ensures liquid resin drains away effortlessly during washing, leaving zero semi-cured residue in deep recesses.

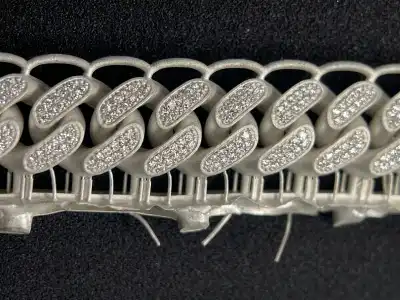

Loss-Wax Burnout
800D wax resin prints burn out cleanly with zero ash residue or mold fracturing. This lowers precious gold/silver material losses caused by surface roughness defects.
Gold Giant 16K Technical Specifications
Physical and mechanical details verified for integration into high-volume industrial facilities.
