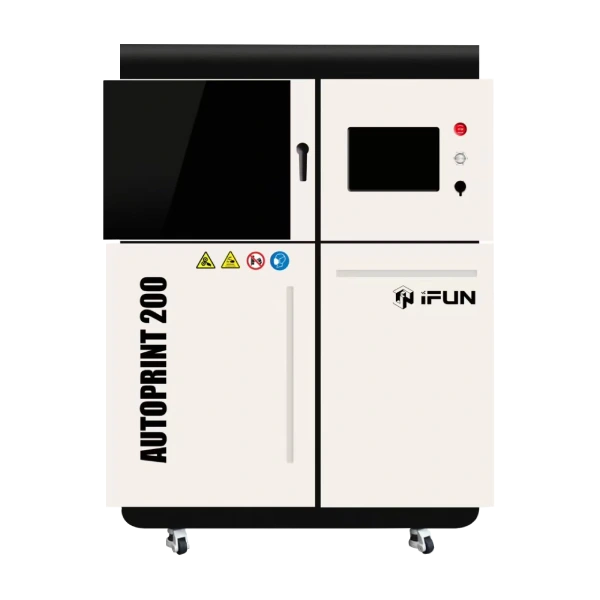

Autoprint 200: Automatic High-Precision DLP 3D Printer

Automate production with Autoprint 200. Features automatic shovel & feeding, ±0.05mm precision, and T700 wax resin for high-end jewelry casting solutions.
Get A Quote

Unattended Automation

Workflow

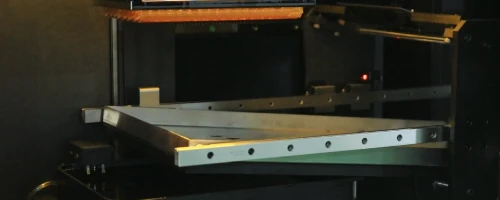

Automatic Shovel & Collection

Integrated mechanical system automatically removes models from the platform upon completion, enabling a continuous hands-free production cycle.
Reduces manual labor intervention by 80%.
Intelligence

Smart Resin Management

Automatic feeding detection ensures the resin level is maintained at the optimal height for long-duration printing tasks without oversight.
Real-time sensor monitoring prevents print failures due to material depletion.
Efficiency

Continuous Batch Production

The "Automatic Next Print" feature queues multiple jobs, transitioning from one batch to the next without requiring the operator to reset the machine.
Designed for 24/7 digital factory environments.

Precision & Performance

Accuracy

±0.05mm Dimensional Tolerance

Engineered for high-end jewelry and industrial parts requiring strict stone setting and CNC post-processing compatibility.
Industry Benchmark: Matches luxury standards of Cartier (0.35mm) and Van Cleef (0.2mm) thin-wall designs.
Optical Engine

>98.7% Light Uniformity

Full-plate DLP exposure ensures that wax prints on the edge of the platform have the exact same weight and consistency as those in the center.
Crucial for high-volume consistent casting results.
Support Technology

60% Fewer Supports

Supports as thin as 0.2mm are easy to remove without damaging delicate surfaces. Many geometric models can be printed with zero supports.
Significant reduction in post-processing time and resin waste.

Technical Specifications

Industrial-grade components designed for continuous 24/7 operation.
Light Source
Industrial DLP
Machine Weight
100 kg
Forming Size
200 * 112.5 * 150 mm
Machine Size
1200 * 600 * 1360 mm
XY Axis Gap
0.23 mm
Data Transfer
USB / Wi-Fi / Ethernet
Z Axis Gap
0.25 mm
Light Engine Life
>20,000 Hours

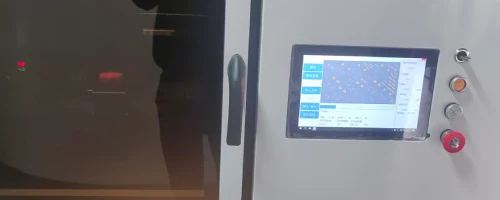

Touch Screen
4.9" OLED Smart Display
Release Film Life
500,000 Releases
